SHDCK ABSORBER (MODEL D)

GSX750ES 1984 (E) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

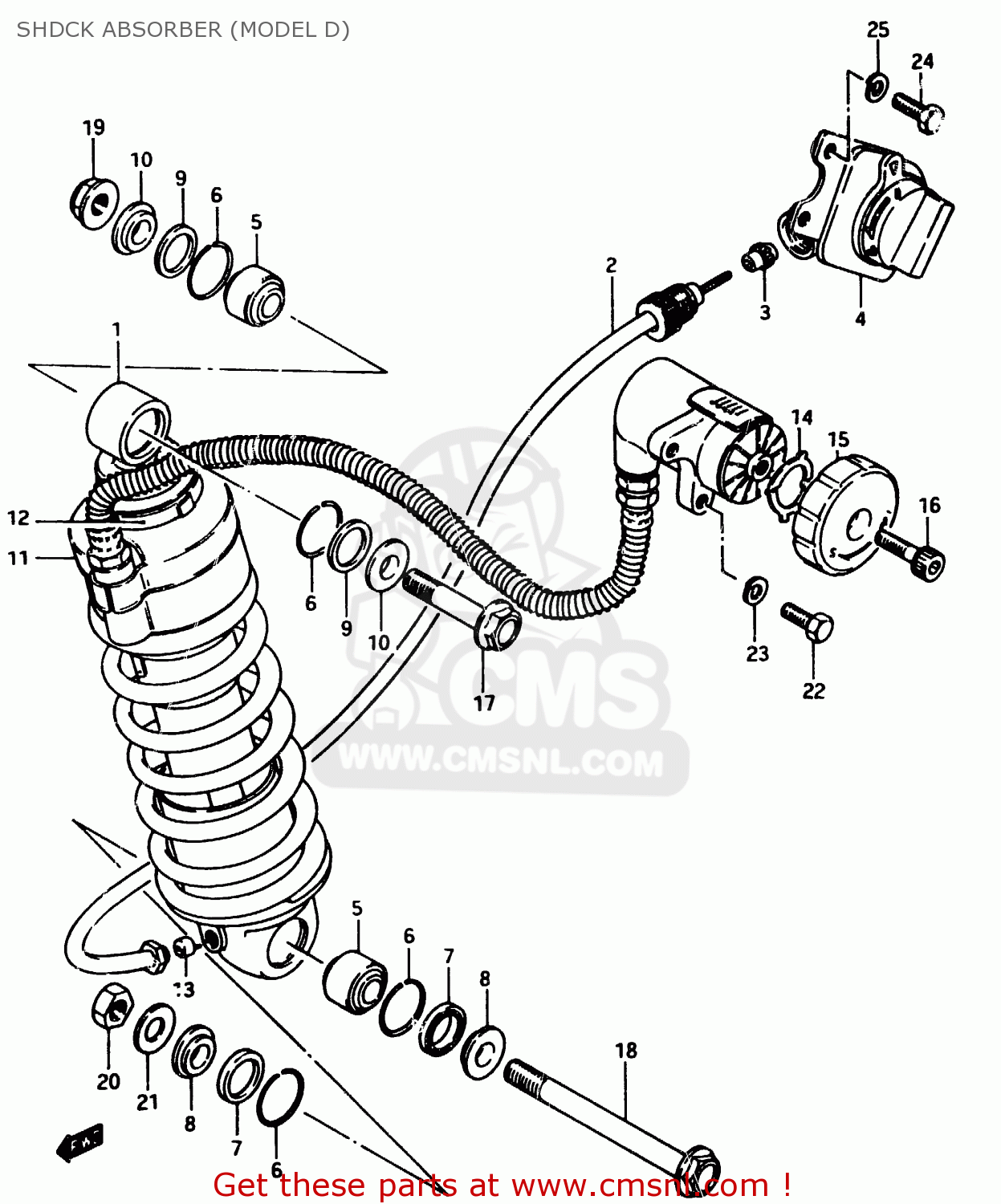

Shdck absorber (model d) diagram GSX750ES 1984 (E) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

SHDCK ABSORBER (MODEL D) GSX750ES 1984 (E) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

SHDCK ABSORBER (MODEL D) GSX750ES 1984 (E) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1

6210031330
ref: 1

SHOCK ABSORBER, REAR

€ 1,157.00

2

6235831300
ref: 2

CABLE,CONTROL

€ 62.50

3

6235631300
ref: 3

GEAR

€ 9.00

4

6235031300
ref: 4

ADJUSTER

€ 128.50

5

0926910004
ref: 5

BEARING

€ 66.00

6

6227720900
ref: 6

RING

€ 1.50

7

6222620900
ref: 7

DUST SEAL

€ 8.00

8

6268420900
ref: 8

SPACER

€ 8.00

9

6222631300
ref: 9

SEAL,DUST

€ 8.00

10

6268431300
ref: 10

COLLAR

€ 8.00

11

6237831300
ref: 11

COVER

€ 12.50

12

6237909310
ref: 12

BAND

€ 0.00

13

6235531301
ref: 13

CAM,DAMPER ADJUSTER

€ 7.00

14

6237731300
ref: 14

PLATE SET

€ 9.00

15

6237515510
ref: 15

LEVELING PLATE

€ 69.50

16

6237631300
ref: 16

BOLT

€ 2.50

17

0910310064
ref: 17

BOLT(10X50)

€ 4.50

18

0910310063
ref: 18

BOLT(10X115)

€ 5.00

19

0831931108
ref: 19

NUT

€ 3.00

20

0831931108
ref: 20

NUT

€ 3.00

21

0832221108
ref: 21

WASHER

€ 2.50

22

0110706165
ref: 22

BOLT 6X16

€ 2.00

23

0832121065
ref: 23

LOCK WASHER

€ 2.00

24

0110706165
ref: 24

BOLT 6X16

€ 2.00

25

0832121065
ref: 25

LOCK WASHER

€ 2.00
