MUFFLER (MODEL D)

GSX750ES 1984 (E) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

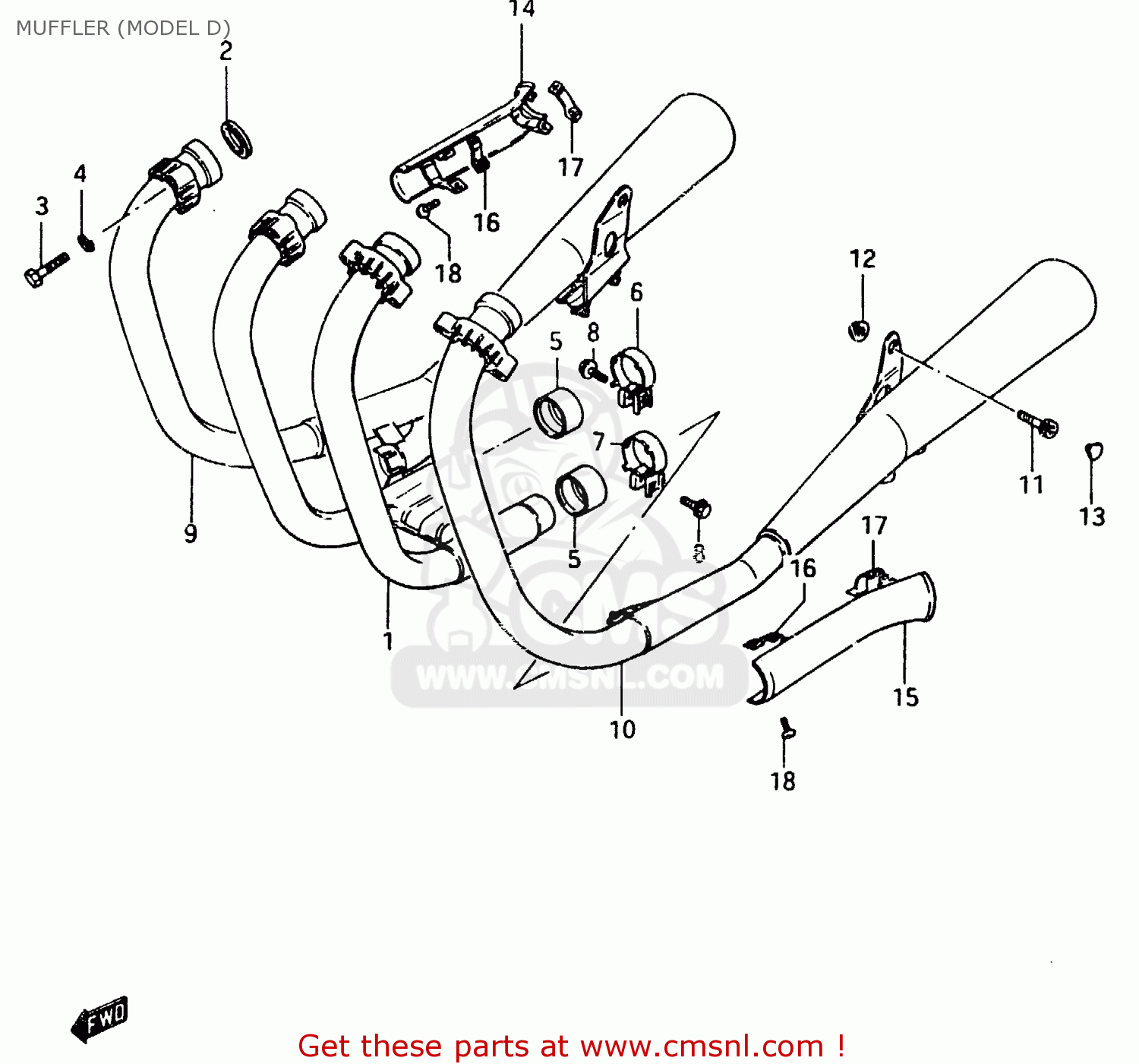

Muffler (model d) diagram GSX750ES 1984 (E) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

MUFFLER (MODEL D) GSX750ES 1984 (E) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
MUFFLER (MODEL D) GSX750ES 1984 (E) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
MUFFLER (MODEL D) GSX750ES 1984 (E) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
1410031310
ref: 1
PIPE, EXHAUST CENTER
€ 263.00
1
1410031321
ref: 1
E18,FROM 14100-31320
PIPE, EXHAUST CENTER
€ 0.00
2
1418105020
ref: 2
GASKET,EXHAUST PIPE (NAS)
1418105020
€ 6.50
3
0110708408
ref: 3
BOLT 8X40
0110708408
€ 3.00
4
0832121088
ref: 4
LOCK WASHER
0832121088
€ 2.00
5
1477131301
ref: 5
FROM 14771-31300
CONNECTOR,MUFFLER
€ 29.00
6
1445931310
ref: 6
CLAMP,MUFFLER CONNECTOR
1445931310
€ 17.00
7
1446931310
ref: 7
CLAMP,MUFFLER CONNECTOR
1446931310
€ 22.00
8
0151708258
ref: 8
BOLT
0151708258
€ 2.50
9
1430131311
ref: 9
MUFFLER, RH
€ 290.00
9
1430131340
ref: 9
E18
MUFFLER, RH
€ 0.00
10
1430231312
ref: 10
MUFFLER, LH
1430231312
€ 269.00
10
1430231340
ref: 10
E18
MUFFLER, LH
€ 0.00
11
0711010255
ref: 11
BOLT 10X25
0711010255
€ 3.50
12
0831616108
ref: 12
NUT
0831616108
€ 2.00
13
4357534500
ref: 13
CAP
4357534500
€ 1.50
14
1478031312
ref: 14
COVER, MUFFLER RH
€ 35.50
15
1479031312
ref: 15
COVER, MUFFLER LH
€ 35.50
16
1478531310
ref: 16
CLAMP,MUFFLER COVER
1478531310
€ 4.50
17
1478531330
ref: 17
CLAMP,MUFFLER COVER
1478531330
€ 5.50
18
0211205168
ref: 18
SCREW
0211205168
€ 2.50
