OIL COOLER

GSX750ES 1984 (E) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

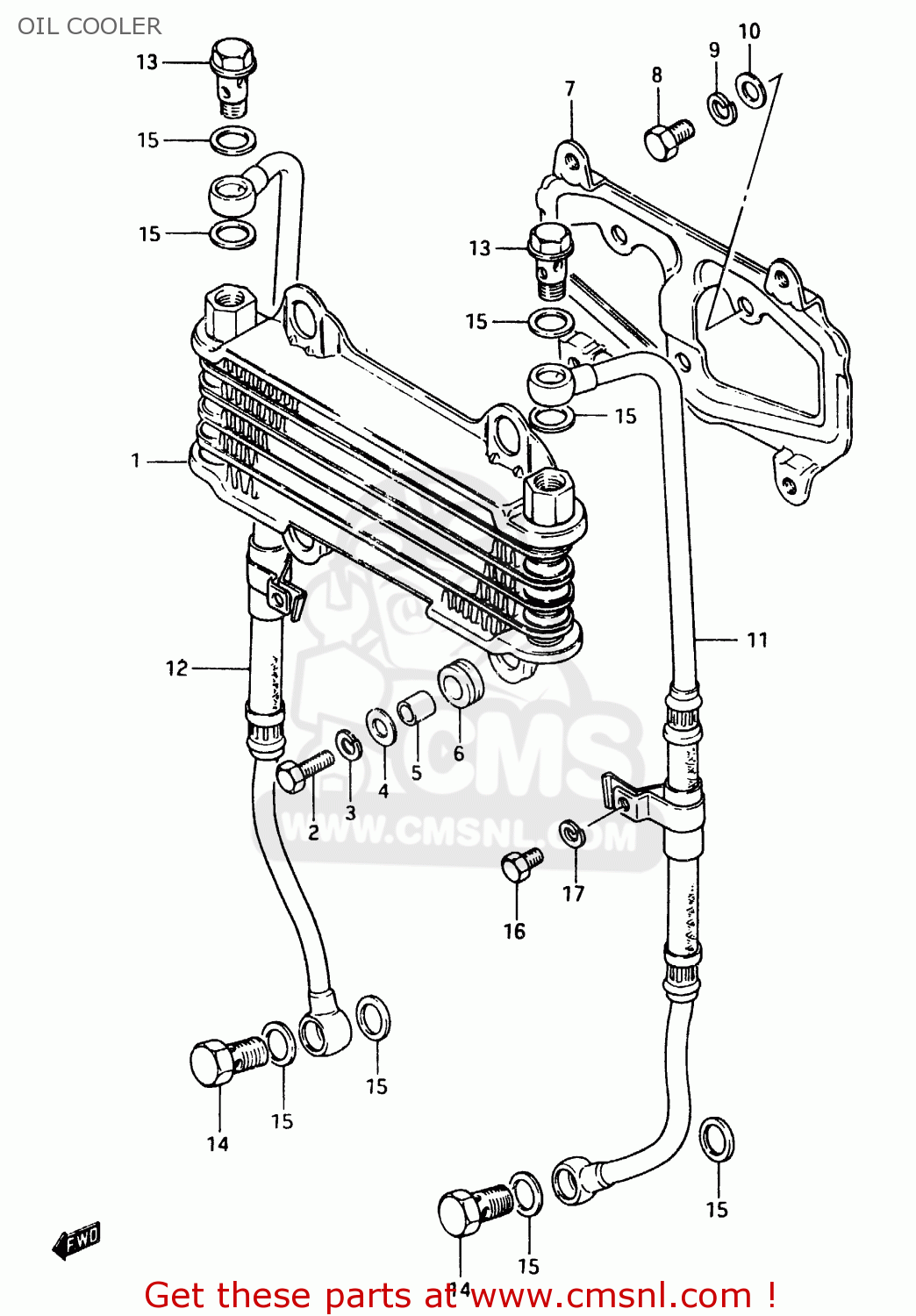

Oil cooler diagram GSX750ES 1984 (E) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

OIL COOLER GSX750ES 1984 (E) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

OIL COOLER GSX750ES 1984 (E) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1

1660031300
ref: 1

COOLER ASSEMBLY,ENGINE OIL

€ 349.00

2

0110706205
ref: 2

BOLT

€ 2.00

3

0832121065
ref: 3

LOCK WASHER

€ 2.00

4

0916006039
ref: 4

WASHER (6.5X18X1.6)

€ 2.00

5

0918006030
ref: 5

SPACER (6.8X10X10)

€ 2.00

6

0932010015
ref: 6

CUSHION

€ 2.50

7

1662031300
ref: 7

BRACKET,OIL COOLER

€ 18.50

8

0110708165
ref: 8

BOLT

€ 2.00

9

0832121085
ref: 9

LOCK WASHER

€ 2.50

10

0832211085
ref: 10

WASHER,8.5X16X

€ 1.50

11

1646031301
ref: 11

HOSE,ENGINE OIL,LEFT

€ 102.50

12

1647031301
ref: 12

HOSE,ENGINE OIL,RIGHT

€ 123.00

13

0936012004
ref: 13

BOLT UNION

€ 13.50

14

0936014005
ref: 14

BOLT UNION

€ 20.50

15

0916814011
ref: 15

GASKET(14X20X1.5) (NAS)

€ 2.00

16

0110706125
ref: 16

BOLT

€ 2.00

17

0832121065
ref: 17

LOCK WASHER

€ 2.00

all assemblies
