REAR SWINGING ARM (MODEL E)

GSX750ES 1984 (E) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

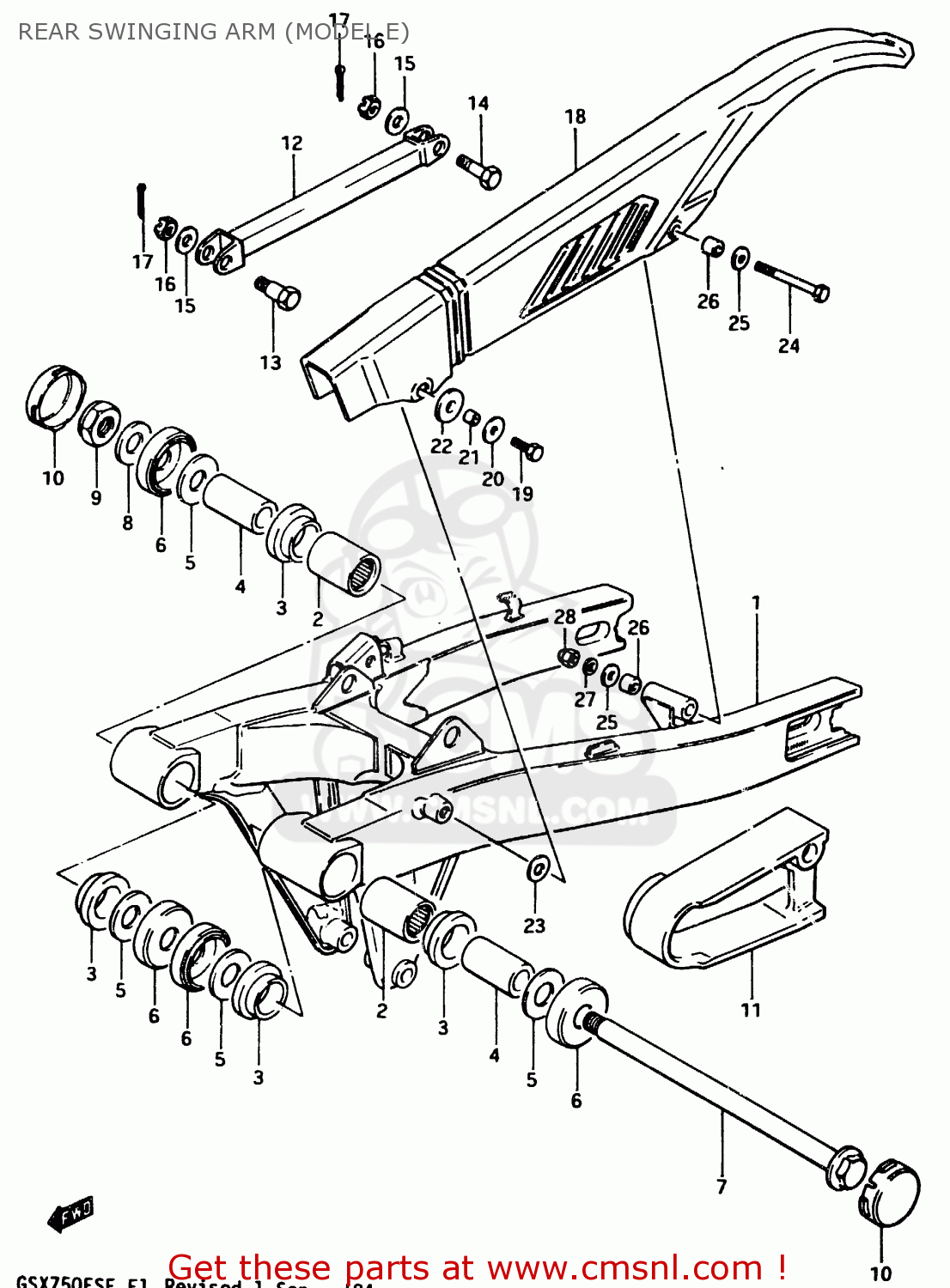

Rear swinging arm (model e) diagram GSX750ES 1984 (E) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

REAR SWINGING ARM (MODEL E) GSX750ES 1984 (E) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

REAR SWINGING ARM (MODEL E) GSX750ES 1984 (E) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1

6100031312
ref: 1

SWINGING ARM SET

€ 527.50

2

0926325024
ref: 2

BEARING(25X33X30)

€ 31.50

3

6126131300
ref: 3

BUSHING

€ 21.00

4

6125131300
ref: 4

SPACER,RR SWGARM PIVOT

€ 21.00

5

0821116381
ref: 5

WASHER

€ 2.50

6

6126249201
ref: 6

COVER,RR SWINGINGARM PIVOT

€ 8.50

7

6121131310
ref: 7

SHAFT,REAR SWING ARM

€ 38.50

8

0832211144
ref: 8

WASHER

€ 2.00

9

0915914013
ref: 9

NUT

€ 8.50

10

6122231301
ref: 10

CAP,PIVOT

€ 7.00

11

6127331311
ref: 11

BUFFER,DEFENSE

€ 26.00

12

6431031310291
ref: 12

TORQUE LINK,REAR

€ 18.50

13

0911110011
ref: 13

BOLT

€ 8.00

14

0910110017
ref: 14

BOLT(10X39)

€ 5.00

15

0832211105
ref: 15

WASHER

€ 2.50

16

0831441108
ref: 16

NUT

€ 2.50

17

0411120208
ref: 17

PIN 20X20

€ 1.50

18

6131031302
ref: 18

CASE,CHAIN

€ 109.50

19

0110706165
ref: 19

BOLT 6X16

€ 2.00

20

0916006063
ref: 20

WASHER (6.5X22X1.6)

€ 2.00

21

0918006073
ref: 21

SPACER

€ 2.00

22

0916108002
ref: 22

WASHER

€ 2.50

23

0916006063
ref: 23

WASHER (6.5X22X1.6)

€ 2.00

24

0110706604
ref: 24

BOLT 6X60

€ 13.00

25

0916006056
ref: 25

WASHER(6.5X18X1)

€ 2.00

26

0918006142
ref: 26

SPACER

€ 1.50

27

0832121064
ref: 27

WASHER,LOCK

€ 2.00

28

0831311065
ref: 28

NUT 6MM

€ 2.00
