STAND

GSX750ES 1984 (E) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

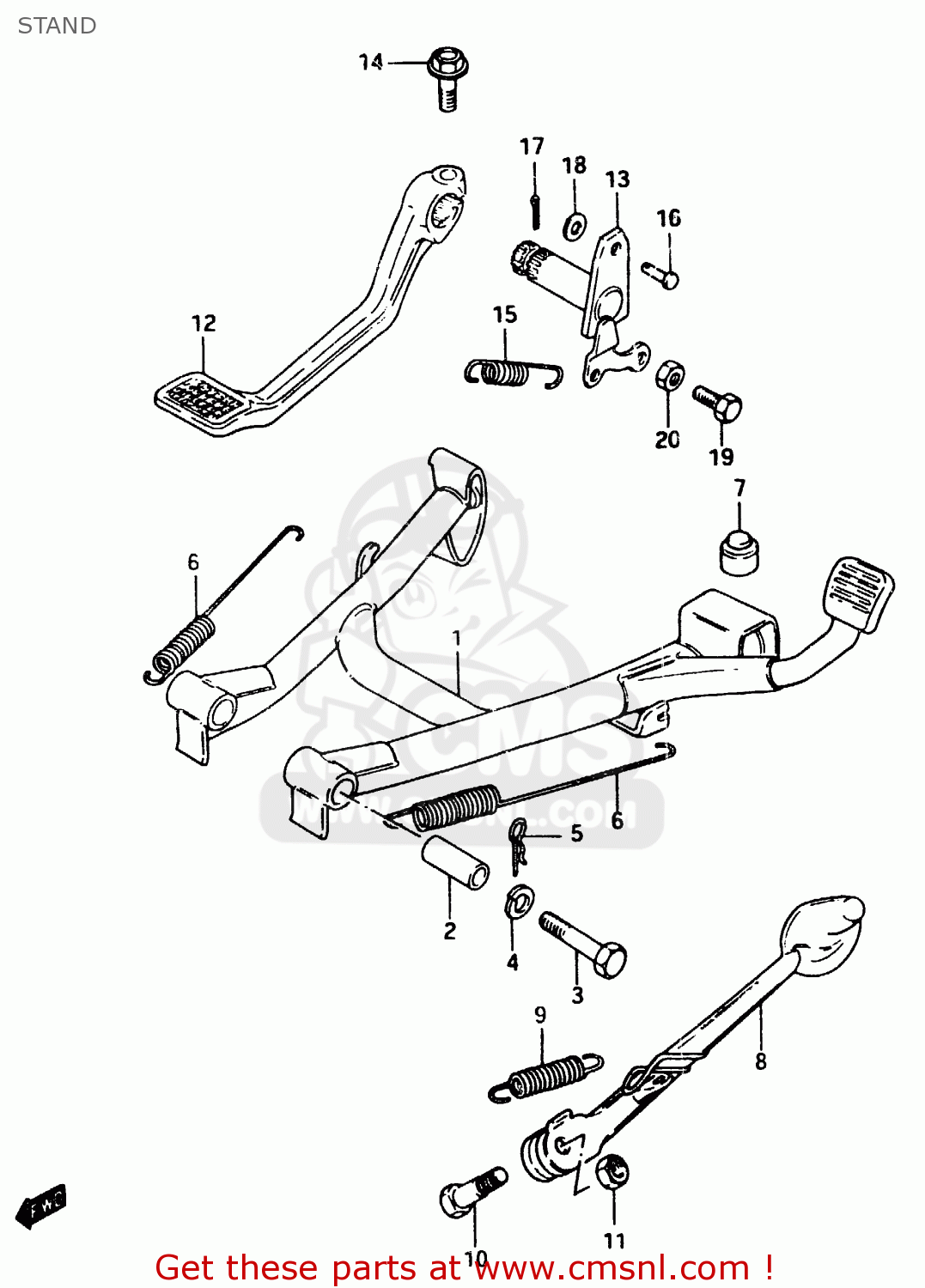

Stand diagram GSX750ES 1984 (E) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

STAND GSX750ES 1984 (E) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
STAND GSX750ES 1984 (E) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
STAND GSX750ES 1984 (E) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
4210031301
ref: 1
STAND,CENTER
€ 129.00
1
4210031310
ref: 1
E6,E24,E27, F.NO.110
STAND, CENTER
€ 0.00
2
0918010040
ref: 2
SPACER(10X16X38.8)
0918010040
€ 3.00
3
0910110034
ref: 3
BOLT
€ 6.50
4
0832121108
ref: 4
LOCK WASHER
0832121108
€ 2.00
5
0938510001
ref: 5
CLIP
0938510001
€ 1.50
6
0944317017
ref: 6
SPRING
0944317017
€ 8.50
7
0932110001
ref: 7
CUSHION
0932110001
€ 2.50
8
4231031301
ref: 8
STAND,SIDE
4231031301
€ 44.00
9
0944315016
ref: 9
SPRING
0944315016
€ 6.50
10
0911110024
ref: 10
BOLT(10X32)
0911110024
€ 4.50
11
0831022106
ref: 11
NUTM10X1.25X8
€ 2.00
12
4311131300
ref: 12
PEDAL,BRAKE
4311131300
€ 72.50
13
4312031300
ref: 13
ARM,BRAKE PEDAL
€ 18.50
14
0152708258
ref: 14
BOLT
€ 2.50
15
0944314013
ref: 15
SPRING
0944314013
€ 21.50
16
0920006029
ref: 16
PIN
0920006029
€ 1.50
17
0411120158
ref: 17
PIN
0411120158
€ 1.50
18
0832221068
ref: 18
WASHER
0832221068
€ 2.00
19
0110706258
ref: 19
BOLT
€ 2.00
20
0831011068
ref: 20
NUT
0831011068
€ 2.50
