ELECTRICAL

GSX750ES 1984 (E) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

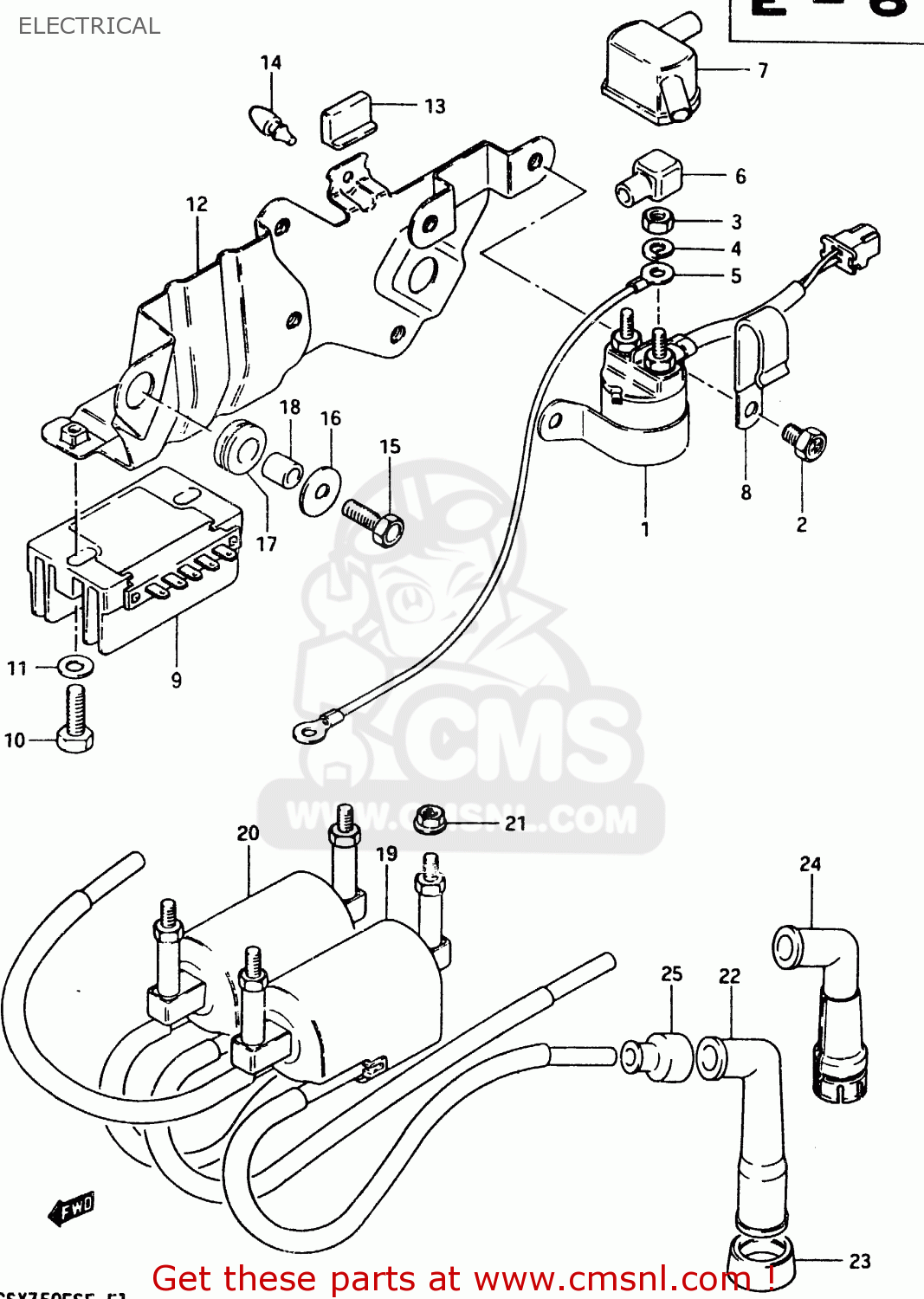

Electrical diagram GSX750ES 1984 (E) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

ELECTRICAL GSX750ES 1984 (E) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

ELECTRICAL GSX750ES 1984 (E) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1

3180031300
ref: 1
MODEL D

RELAY ASSEMBLY,STARTING MOTOR

€ 78.00

1

3180015500
ref: 1
MODEL E

RELAY ASSEMBLY,STARTING MOTOR

€ 78.00

2

0912806004
ref: 2

SCREW(6X10)

€ 1.50

3

0831022066
ref: 3

NUT

€ 2.00

4

0832121066
ref: 4

WASHER,LOCK

€ 2.00

5

3385043410
ref: 5
MODEL D

WIRE,STARTER MOTOR LEAD

€ 0.00

5

3385031310
ref: 5
MODEL E

WIRE,STARTER MOTOR LEAD

€ 24.00

6

3186105300
ref: 6
MODEL D

CAP,STARTER MOTOR TERMINAL

€ 4.50

7

3186131300
ref: 7
MODEL E

CAP,STARTER RELAY TERMINAL

€ 5.00

8

0940306307
ref: 8

CLAMP

€ 4.50

9

3280009300
ref: 9

RECTIFIER ASSEMBLY

€ 306.50

10

0912806006
ref: 10

BOLT(6X20)

€ 2.00

11

0832221068
ref: 11

WASHER

€ 2.00

12

4741031300
ref: 12
WITH 47117-02400

HOLDER COMP,ELECTRONIC PARTS

€ 0.00

12

4741031301
ref: 12
WITH 09321-06023

PLATE,ELECTRIC PARTS H

€ 0.00

13

4711702400
ref: 13

CUSHION,FRAME COVER

€ 2.00

14

0932106023
ref: 14

CUSHION

€ 2.00

15

0110706168
ref: 15

BOLT, UPPER

€ 3.00

16

0916006027
ref: 16

WASHER (6.5X20X1.2)

€ 2.00

17

0932008007
ref: 17

CUSHION

€ 4.00

18

0918006038
ref: 18

SPACER(6.1X9X7.5)

€ 2.00

19

3341031310
ref: 19

COIL ASSEMBLY,IGNITION

€ 182.00

20

3342031310
ref: 20

COIL ASSEMBLY,IGNITION NO

€ 182.00

21

0831616066
ref: 21

NUT

€ 2.50

22

3351011410
ref: 22

CAP,SPARK PLUG

€ 24.50

23

3354138210
ref: 23

SEAL,SPARK PLUG

€ 7.00

24

3351045410
ref: 24
E16

CAP, SPARK PLUG

€ 29.50

25

3354298000
ref: 25

SEAL,SPARK PLU

€ 4.50
