HEADLAMP (GSX750ESD/ESE/EFE)

GSX750ES 1984 (E) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

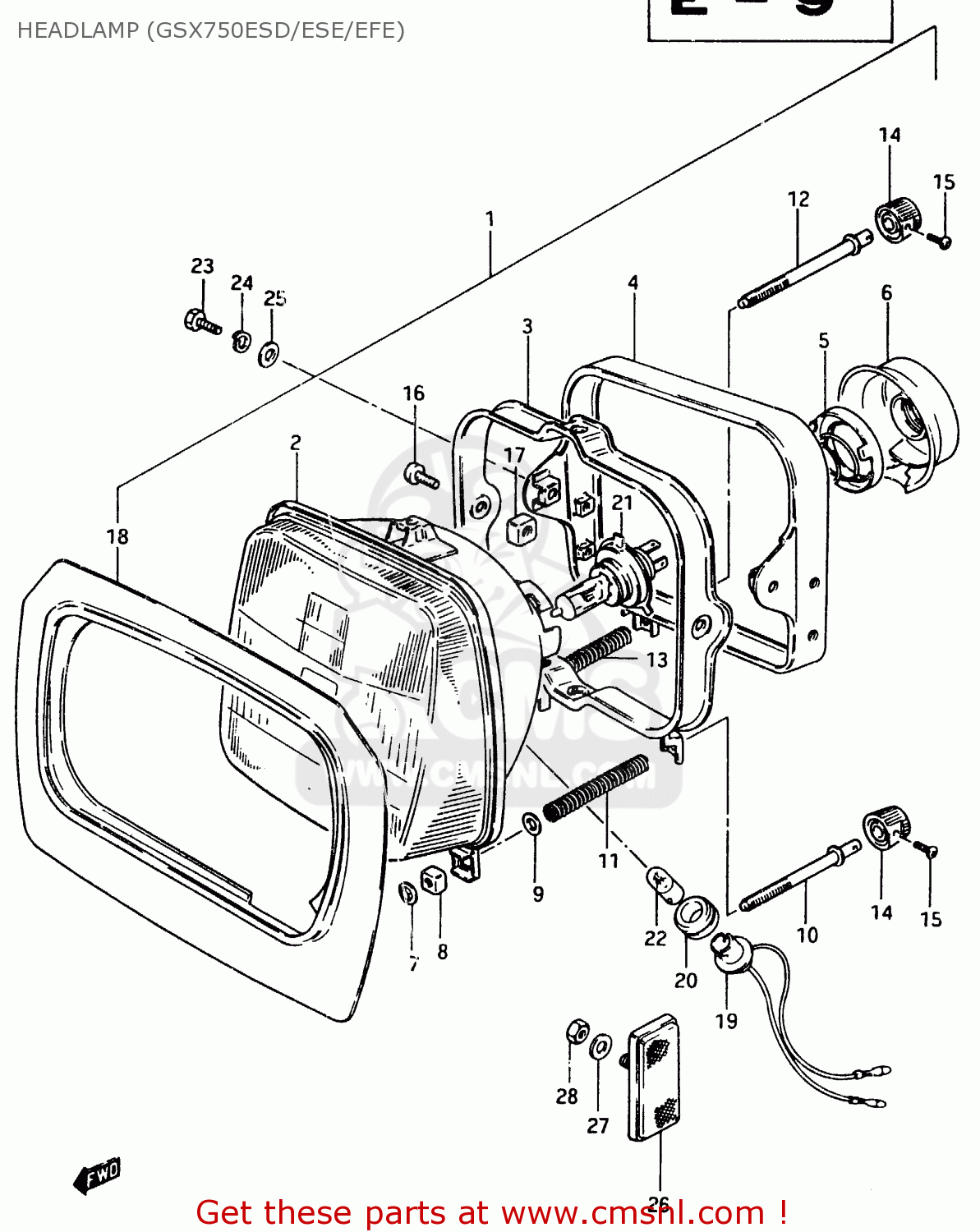

Headlamp (gsx750esd/ese/efe) diagram GSX750ES 1984 (E) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

HEADLAMP (GSX750ESD/ESE/EFE) GSX750ES 1984 (E) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

HEADLAMP (GSX750ESD/ESE/EFE) GSX750ES 1984 (E) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1

3510049530999
ref: 1
E1,E6,E24,E27,E30

LAMP ASSEMBLY,HEAD

€ 0.00

1

3510049520999
ref: 1
E2

HEADLAMP ASSY

€ 0.00

1

3510049550999
ref: 1
E4,E15,E16,E17,E18,E

HEADLAMP ASSY

€ 184.50

2

3512149530
ref: 2
E1,E6,E24,E27,E30

LAMP UNIT

€ 0.00

2

3512149520
ref: 2
E2

UNIT

€ 150.00

2

3512149550
ref: 2
E4,E15,E16,E17,E18,E

LAMP UNIT

€ 150.00

3

3513049500
ref: 3

RING,MOUNTING

€ 30.00

4

3514149500
ref: 4

HOUSING,LAMP UNIT

€ 31.00

5

3513649200
ref: 5

HOLDER

€ 8.50

6

3517349200
ref: 6

COVER,HEADLAMP SOCKET

€ 12.50

7

3515249330
ref: 7

NUT,HEADLAMP ADJUSTER

€ 2.00

8

3515249500
ref: 8

NUT,HEADLAMP ADJUSTER

€ 2.50

9

3515749320
ref: 9

WASHER

€ 2.00

10

3515149500
ref: 10

SCREW,HEADLAMP ADJUST

€ 16.50

11

3515449500
ref: 11

SPRING

€ 4.50

12

3515149320
ref: 12

SCREW,ADJUSTING

€ 16.50

13

3515449320
ref: 13

SPRING

€ 3.00

14

3516149320
ref: 14

KNOB,ADJUSTER

€ 6.00

15

0211203108
ref: 15

SCREW

€ 1.50

16

0211205128
ref: 16

SCREW

€ 2.50

17

3513545900
ref: 17

NUT

€ 2.50

18

3512949500
ref: 18

SHADE

€ 21.00

19

3611849320
ref: 19
E2,E4,E15,E16,E17,E1

SOCKET

€ 12.00

20

3611622630
ref: 20
E2,E4,E15,E16,E17,E1

JOINT,RUBBER

€ 5.00

21

0947112060
ref: 21
EXECUTED LOCALLY

BULB(12V60/55W,H4)

€ 8.00

21

0947112061
ref: 21
E4 EXECUTED LOCALLY

BULB (12V, 60/55W, H4)

€ 0.00

22

0947112063
ref: 22
E2,E4,E15,E16,E17,E1

BULB(12V4W)

€ 6.00

23

0110706206
ref: 23

BOLT,M6X1X20

€ 2.00

24

0832121066
ref: 24

WASHER,LOCK

€ 2.00

25

0832221066
ref: 25

WASHER, LOWER

€ 2.00

26

3595031310
ref: 26
E39

REFLEX REFLECTOR, FRONT SIDE

€ 0.00

27

0832221055
ref: 27
E39

WASHER,5MM

€ 2.50

28

0831012055
ref: 28
E39

NUT ,5MM

€ 2.50
