COWLING (GSX750EFE)

GSX750ES 1984 (E) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

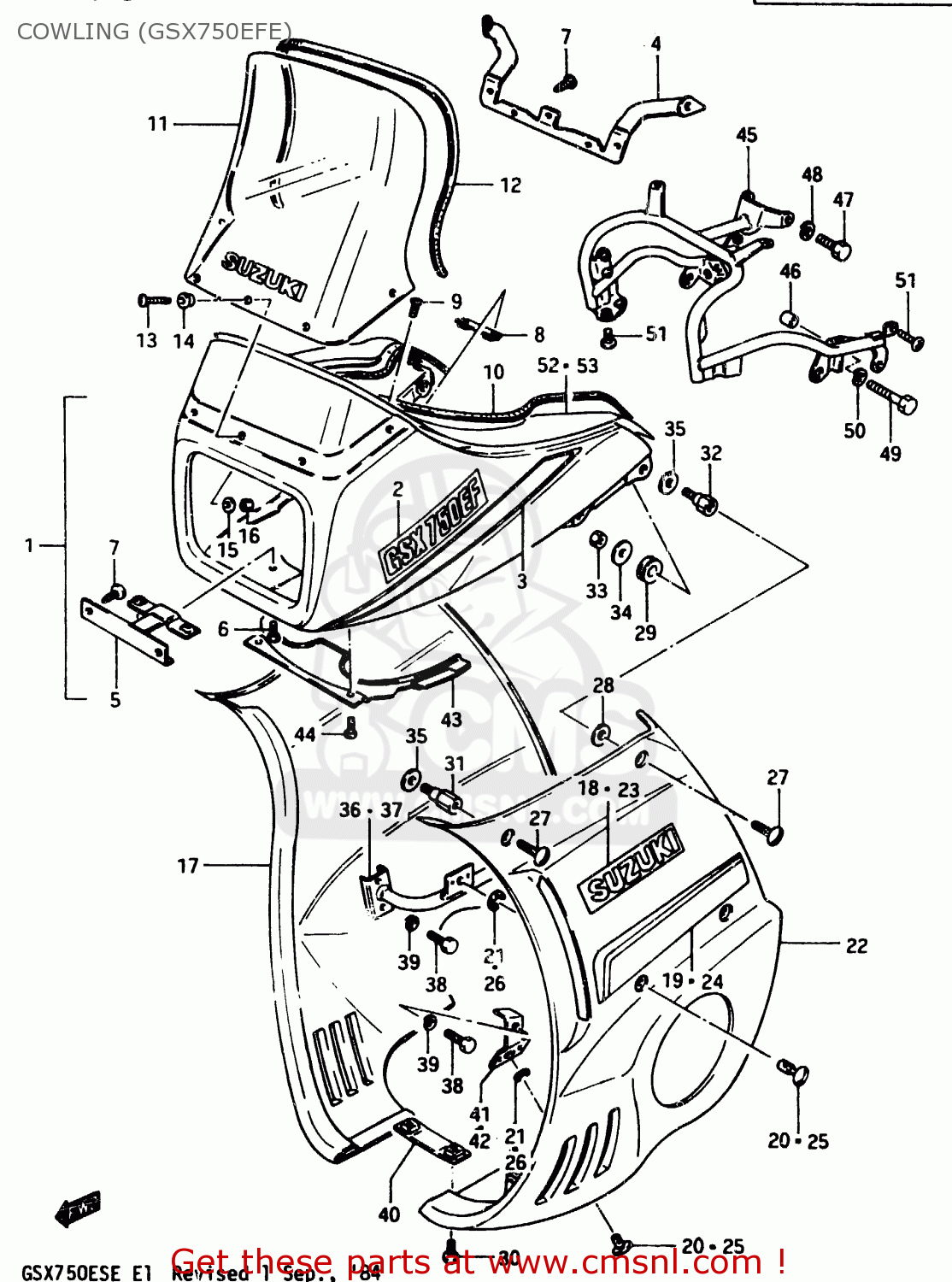

Cowling (gsx750efe) diagram GSX750ES 1984 (E) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

COWLING (GSX750EFE) GSX750ES 1984 (E) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
COWLING (GSX750EFE) GSX750ES 1984 (E) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
COWLING (GSX750EFE) GSX750ES 1984 (E) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
944003132087P
ref: 1
COWLING ASSY (WHITE/RED)
€ 745.00
1
944003132091J
ref: 1
COWLING ASSY (WHITE/BLUE)
€ 745.00
1
944003133087P
ref: 1
E17
COWLING ASSY (WHITE/RED)
€ 745.00
1
944003133091J
ref: 1
E17
COWLING ASSY (WHITE/BLUE)
€ 745.00
1
944003134087P
ref: 1
E22
COWLING ASSY (WHITE/RED)
€ 745.00
1
944003134091J
ref: 1
E22
COWLING ASSY (WHITE/BLUE)
€ 745.00
2
681313136069L
ref: 2
EMBLEM
€ 19.00
3
681903132095J
ref: 3
FOR 87P
TAPE SET
€ 25.00
3
681903132093K
ref: 3
FOR 91J
TAPE SET
681903132093K
€ 14.50
4
9453031310
ref: 4
BRACE,COWLING,UPPER
9453031310
€ 18.50
5
9454031310
ref: 5
BRACE,COWLING,LOWER
9454031310
€ 10.00
6
0214205107
ref: 6
SCREW
0214205107
€ 2.50
7
0321205105
ref: 7
SCREW
0321205105
€ 1.00
8
9455031310
ref: 8
BRACKET
9455031310
€ 2.50
9
0214205105
ref: 9
SCREW
0214205105
€ 2.50
10
9459331310
ref: 10
MOLDING,FUEL TANK
€ 32.00
11
9461131330
ref: 11
WINDOW
9461131330
€ 318.50
11
9461131340
ref: 11
E17
WINDOW,COWLING
€ 323.00
12
9463131310
ref: 12
MOLDING
9463131310
€ 18.00
12
9463131320
ref: 12
E17
MOULDING
€ 14.00
13
0214205204
ref: 13
SCREW
€ 2.00
14
0932005008
ref: 14
CUSHION
0932005008
€ 5.00
15
0832221058
ref: 15
WASHER
€ 2.50
16
0831012055
ref: 16
NUT ,5MM
0831012055
€ 2.50
17
944303181016D
ref: 17
FOR 87P
COVER, RH (WHITE)
944303181016D
€ 174.00
17
944303182016D
ref: 17
FOR 91J
COVER, RH (WHITE)
€ 174.00
17
944303183016D
ref: 17
E22,FOR 87P
COVER, RH (WHITE)
€ 174.00
17
944303184016D
ref: 17
E22,FOR 91J
COVER, RH (WHITE)
€ 174.00
18
681113130073H
ref: 18
EMBLEM
€ 24.00
19
686803130086M
ref: 19
FOR 87P
TAPE SET
€ 24.00
19
686803130099J
ref: 19
FOR 91J
TAPE SET
686803130099J
€ 25.00
20
9449143400
ref: 20
FASTENER,COWL SIDE COVER
9449143400
€ 8.00
21
0833211075
ref: 21
E-RING
€ 2.00
22
944403181016D
ref: 22
FOR 87P
COVER,COWLING
944403181016D
€ 199.00
22
944403182016D
ref: 22
FOR 91J
COVER, LH (WHITE)
€ 199.00
22
944403183016D
ref: 22
E22,FOR 87P
COVER, LH (WHITE)
€ 199.00
22
944403184016D
ref: 22
E22,FOR 91J
COVER, LH (WHITE)
€ 199.00
23
681113130073H
ref: 23
EMBLEM
€ 24.00
24
686903130086M
ref: 24
FOR 87P
TAPE SET
686903130086M
€ 23.50
24
686903130099J
ref: 24
FOR 91J
TAPE SET
€ 24.00
25
9449143400
ref: 25
FASTENER,COWL SIDE COVER
9449143400
€ 8.00
26
0833211075
ref: 26
E-RING
€ 2.00
27
9443943400
ref: 27
SCREW,COWLING SIDE COVER
9443943400
€ 3.50
28
0915206001
ref: 28
NUT
0915206001
€ 1.50
29
0932008018
ref: 29
CUSHION
0932008018
€ 4.00
30
0214206127
ref: 30
SCREW 6X12
0214206127
€ 1.50
31
9447531310
ref: 31
BOSS, FRONT
9447531310
€ 5.00
32
9447631310
ref: 32
BOSS, REAR
9447631310
€ 5.00
33
0831011065
ref: 33
NUT
€ 2.00
34
0916006004
ref: 34
WASHER (6.5X24X1.6)
0916006004
€ 1.50
35
0916010051
ref: 35
WASHER
0916010051
€ 2.00
36
9452031320
ref: 36
BRACE, RH
€ 35.50
37
9456031320
ref: 37
BRACE, LH
€ 35.50
38
0110706125
ref: 38
BOLT
€ 2.00
39
0832121064
ref: 39
WASHER,LOCK
0832121064
€ 2.00
40
9457031310
ref: 40
BRACE, FRONT
9457031310
€ 3.50
41
9458031310
ref: 41
BRACE, RH
9458031310
€ 11.50
42
9459031310
ref: 42
BRACE, LH
9459031310
€ 10.50
43
9444531310
ref: 43
COVER,COWLING,LOWER
€ 12.00
44
0321205105
ref: 44
SCREW
0321205105
€ 1.00
45
9451031311
ref: 45
BRACE,COWLING
€ 98.00
46
9454949500
ref: 46
SPACER,COWLING
9454949500
€ 10.50
47
0110708165
ref: 47
BOLT
€ 2.00
48
0832121085
ref: 48
LOCK WASHER
€ 2.50
49
0110708305
ref: 49
BOLT, LOWER
€ 2.50
50
0832121085
ref: 50
LOCK WASHER
€ 2.50
51
0214206125
ref: 51
SCREW 6X12
0214206125
€ 2.00
52
6819731310291
ref: 52
TAPE,RIGHT
6819731310291
€ 8.50
53
6819831310291
ref: 53
TAPE,LEFT
6819831310291
€ 9.50
