CYLINDER HEAD

GSX750ES 1984 (E) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

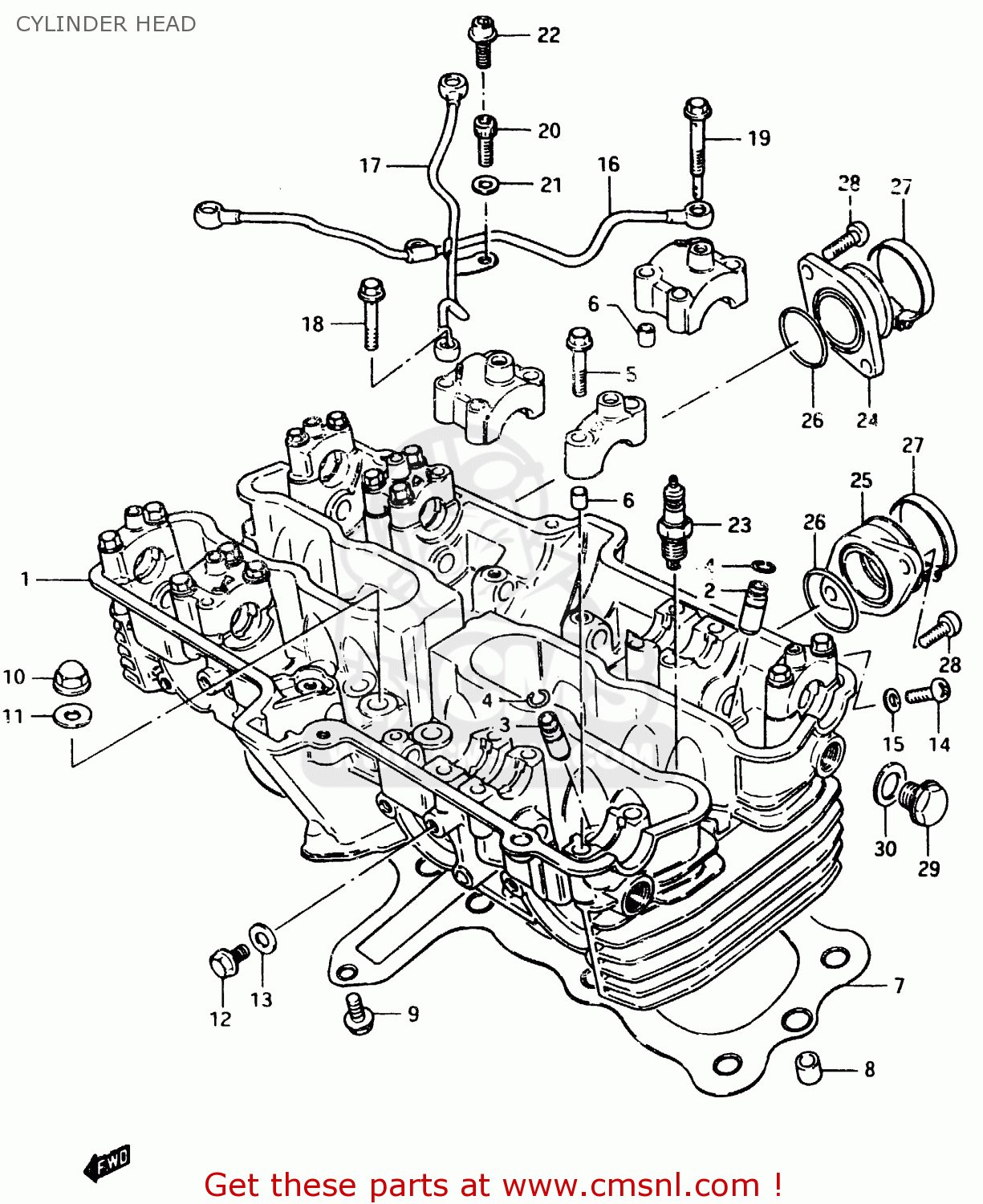

Cylinder head diagram GSX750ES 1984 (E) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

CYLINDER HEAD GSX750ES 1984 (E) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

CYLINDER HEAD GSX750ES 1984 (E) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1

1110031307
ref: 1

HEAD ASSEMBLY,CYLINDER

€ 1,222.50

2

1111549290
ref: 2

GUIDE,INTAKE VALVE

€ 19.50

3

1111549290
ref: 3

GUIDE,INTAKE VALVE

€ 19.50

4

0938110004
ref: 4

RING,SNAP

€ 1.50

5

0910306026
ref: 5

BOLT(6X39)

€ 2.00

6

0920608001
ref: 6

PIN(6.2X8X11)

€ 2.00

7

1114131301
ref: 7

GASKET,CYLINDER HEAD (MCA)

€ 66.00

8

0421111189
ref: 8

PIN

€ 2.00

9

0151706255
ref: 9

BOLT

€ 2.50

10

0915910026
ref: 10

NUT

€ 6.00

11

0916810017
ref: 11

GASKET(10.5X22X2) (NAS)

€ 3.50

12

0151706105
ref: 12

BOLT

€ 2.50

13

0916806018
ref: 13

GASKET(6.2X13X1.2) (NAS)

€ 2.00

14

0211205085
ref: 14

SCREW

€ 2.00

15

0916805010
ref: 15

GASKET(5.3X9.3X1.2) (NAS)

€ 2.00

16

1296131301
ref: 16
MODEL D

PIPE,OIL CYLINDER HEAD

€ 34.50

16

1296131302
ref: 16
MODEL E

PIPE,OIL CYLINDER HEAD NO.1

€ 34.50

17

1296231301
ref: 17
MODEL D

PIPE,OIL CYLINDER HEAD

€ 25.00

17

1296231302
ref: 17
MODEL E

PIPE,OIL CYLINDER HEAD

€ 25.00

18

0936006014
ref: 18

UNION

€ 4.50

19

1296531300
ref: 19

BOLT,UNION

€ 21.00

20

0910606025
ref: 20
~E.NO.111736

BOLT

€ 3.00

21

0832221068
ref: 21
~E.NO.111736

WASHER

€ 2.00

22

0712206166
ref: 22
E.NO.111737~

BOLT

€ 2.50

23

0943200144
ref: 23

SPARK PLUG (NGK,D8EA)

€ 0.00

23

0948200145
ref: 23

SPARK PLUG X24ES-U

€ 3.50

23

0948200149
ref: 23
E2,E4,E6,E15,E16,E17

SPARK PLUG DR8ES-L

€ 3.50

23

0948200223
ref: 23
E2,E4,E6,E15,E16,E17

PLUG,SPARK(X24ESR-U)

€ 3.50

24

1311031300
ref: 24

PIPE,INTAKE

€ 31.50

25

1312031300
ref: 25

PIPE,INTAKE

€ 31.50

26

0928038003
ref: 26

O-RING

€ 4.50

27

0940250205
ref: 27

CLAMP

€ 5.00

28

0211206205
ref: 28

SCREW

€ 2.00

29

0924714028
ref: 29

PLUG

€ 3.50

30

0916814004
ref: 30

GASKET(14X19.2X2) (NAS)

€ 2.50
