CRANKSHAFT

GSX750ES 1984 (E) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

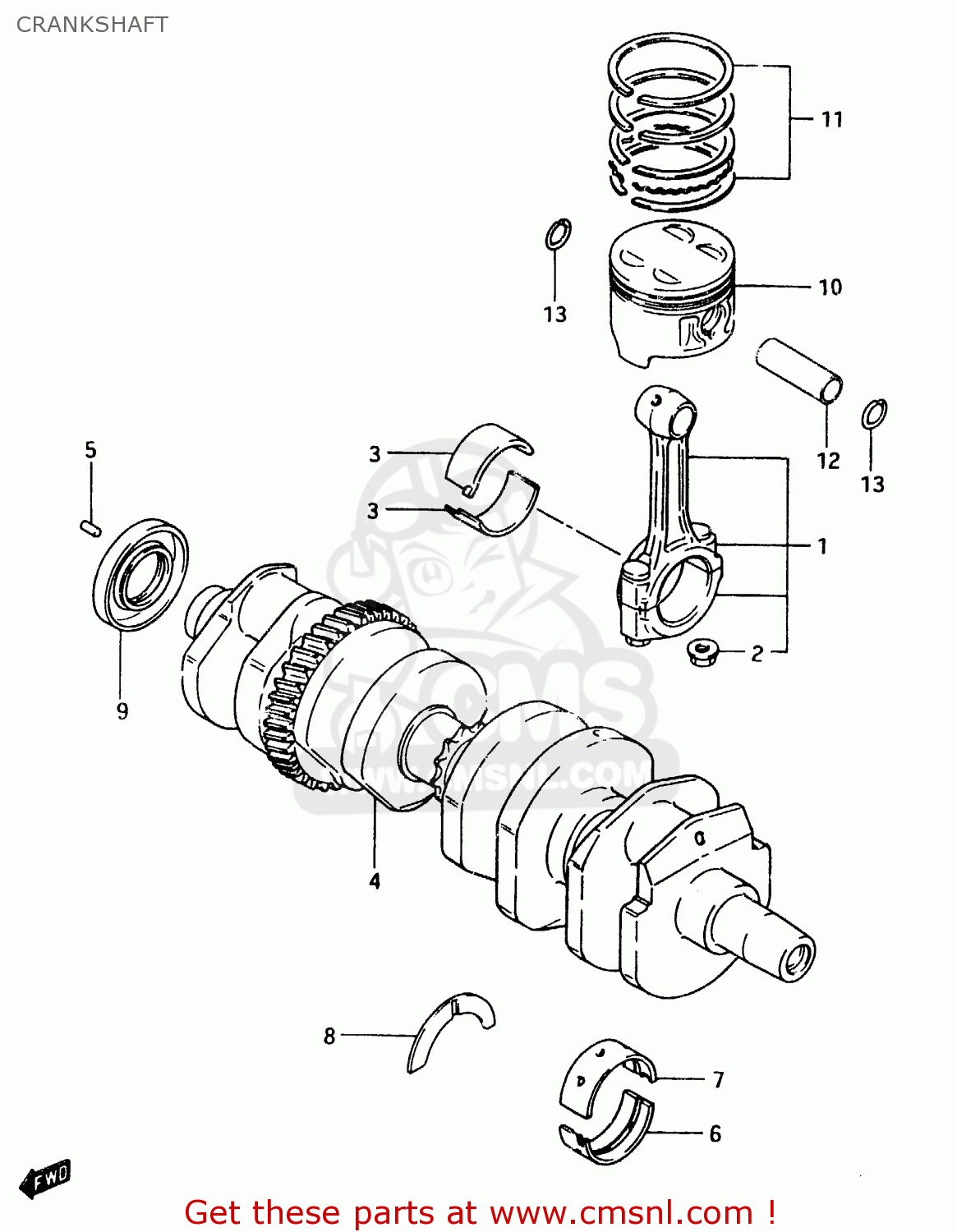

Crankshaft diagram GSX750ES 1984 (E) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

CRANKSHAFT GSX750ES 1984 (E) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
CRANKSHAFT GSX750ES 1984 (E) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
CRANKSHAFT GSX750ES 1984 (E) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
1216031300
ref: 1
ROD ASSEMBLY,CONNECTING
€ 83.50
2
0915908033
ref: 2
NUT
0915908033
€ 2.50
3
12164313100A0
ref: 3
FROM 12164-31300-010
METAL,CRANK PIN
12164313100A0
€ 11.50
3
12164313100B0
ref: 3
FROM 12164-31300-020
METAL,CRANK PIN
12164313100B0
€ 13.00
3
12164313100C0
ref: 3
FROM 12164-31300-030
METAL,CRANK PIN
12164313100C0
€ 12.50
3
12164313100D0
ref: 3
FROM 12164-31300-040
METAL CRANK PIN
12164313100D0
€ 10.50
4
1222031301
ref: 4
CRANKSHAFT ASSEMBLY
€ 817.00
5
0422104089
ref: 5
PIN
0422104089
€ 1.50
6
12229093010A0
ref: 6
FROM 12229-09300-010
METAL,CRANKSHAFT (GREEN)
12229093010A0
€ 10.00
6
12229093010B0
ref: 6
FROM 12229-09300-020
METAL,CRANKSHAFT (BLACK)
12229093010B0
€ 10.00
6
12229093010C0
ref: 6
FROM 12229-09300-030
METAL,CRANKSHAFT (BROWN)
12229093010C0
€ 10.00
6
12229093010D0
ref: 6
FROM 12229-09300-040
METAL,CRANKSHAFT (YELLOW)
12229093010D0
€ 9.00
7
12229093110A0
ref: 7
FROM 12229-09310-010
METAL CRANKSHAFT (GREEN)
€ 12.00
7
12229093110B0
ref: 7
FROM 12229-09310-020
METAL CRANKSHAFT (BLACK)
€ 12.50
7
12229093110C0
ref: 7
FROM 12229-09310-030
METAL CRANKSHAFT (BROWN)
12229093110C0
€ 12.00
7
12229093110D0
ref: 7
FROM 12229-09310-040
METAL CRANKSHAFT (YELLOW)
€ 11.50
8
1222831301
ref: 8
LH
PLATE,CRANK THRUST
1222831301
€ 6.00
8
1222831302
ref: 8
LH
PLATE,CRANK THRUST
1222831302
€ 8.00
8
1222831303
ref: 8
LH
PLATE,CRANK THRUST
1222831303
€ 8.50
8
1222831304
ref: 8
LH
PLATE,CRANK THRUST
1222831304
€ 9.00
8
1222831305
ref: 8
LH & RH
PLATE,CRANK THRUST
1222831305
€ 7.00
8
1222831306
ref: 8
LH
PLATE,CRANK THRUST
1222831306
€ 8.00
8
1222831307
ref: 8
LH
PLATE,CRANK THRUST
€ 7.00
8
1222831308
ref: 8
LH
PLATE,CRANK THRUST
1222831308
€ 7.50
9
0928330046
ref: 9
MODEL D
OIL SEAL
€ 15.00
9
0928330048
ref: 9
MODEL E
SEAL,OIL(30X60X8)
0928330048
€ 15.00
10
1211131304
ref: 10
STD
PISTON
1211131304
€ 81.50
10
1211131304050
ref: 10
OPT
PISTON
€ 81.50
10
1211131304100
ref: 10
OPT
PISTON
1211131304100
€ 80.00
11
1214031310
ref: 11
STD
RING SET,PISTON
1214031310
€ 62.50
11
1214031310050
ref: 11
OPT
RING SET,PISTON (OS:0.5)
1214031310050
€ 99.50
11
1214031310100
ref: 11
OPT, FROM 12140-4541
RING SET,PISTON (OS:1.0)
€ 89.00
12
1215131302
ref: 12
FROM 12151-31301
PIN,PISTON
1215131302
€ 13.00
13
0938118002A
ref: 13
CIRCLIP,PISTON PIN
0938118002A
€ 1.50
