BATTERY

GSX750F 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

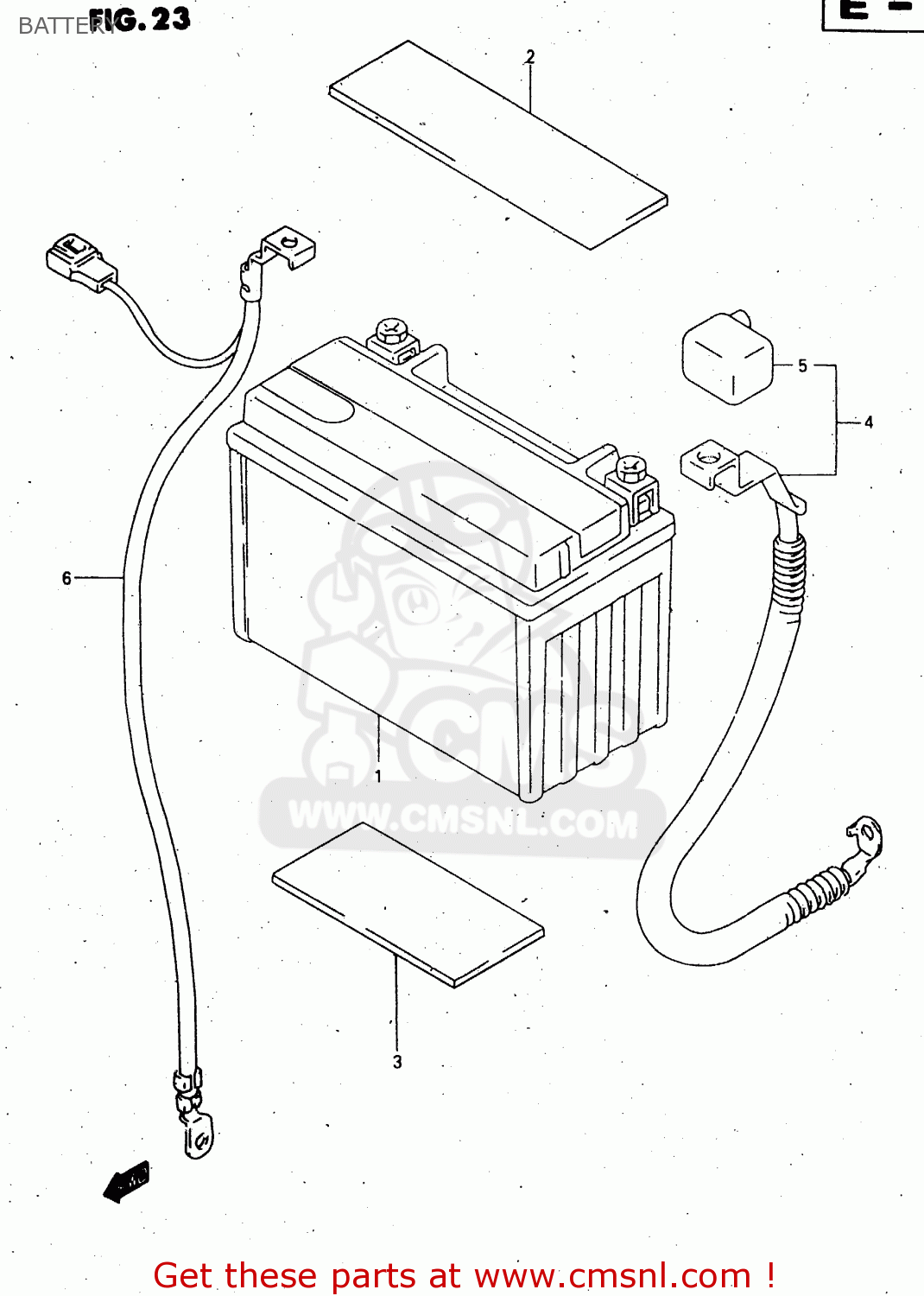

Battery diagram GSX750F 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

BATTERY GSX750F 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

BATTERY GSX750F 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

3361033E20
ref: 1
FTX9-BS

BATTERY ASSEMBLY (12V) FTX

€ 108.50

2

3365137000
ref: 2
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

3

3365235400
ref: 3

PROTECTOR(20X50X8)

€ 2.00

4

3382048E00
ref: 4

WIRE,BATTERY PLUS LEAD

€ 13.00

5

3362416E00
ref: 5

CAP,BATTERY PLUS

€ 4.00

6

3386008F00
ref: 6

WIRE,BATTERY MINUS

€ 14.00
