FRAME COVER (MODEL X)

GSX750F 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

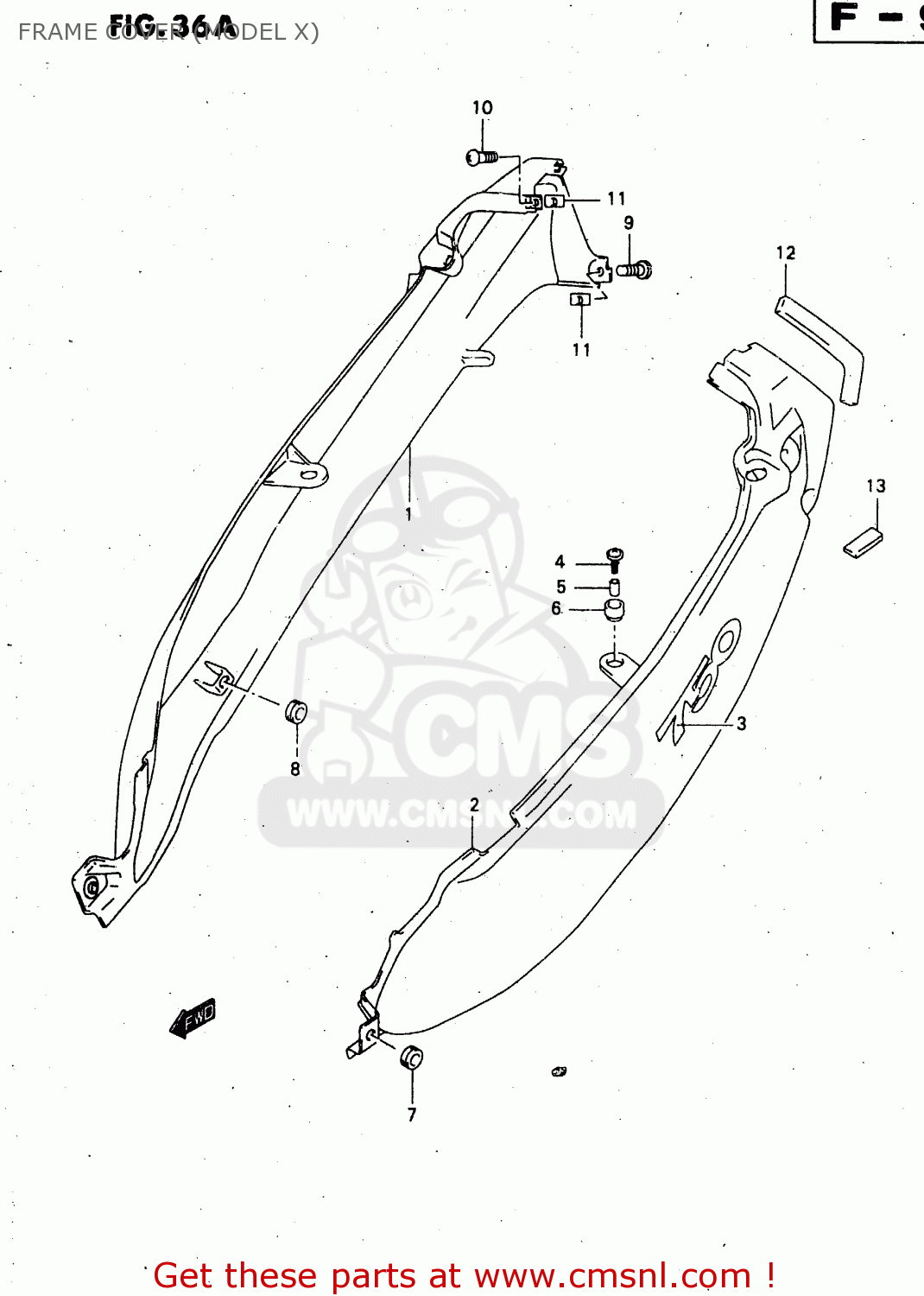

Frame cover (model x) diagram GSX750F 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

4711008F3033J
ref: 1

COVER,FRAME,R(BLACK)

€ 119.00

4711008F30Y4M
ref: 1

COVER,FRAME,R(MAROON)

€ 171.00

4711008F30Y7H
ref: 1

COVER,FRAME,R(BLUE)

€ 119.00

4721008F3033J
ref: 2

COVER COMP,FRAME,LEFT

€ 193.50

4721008F30Y4M
ref: 2

COVER,FRAME,L(MAROON)

€ 181.50

4721008F30Y7H
ref: 2

COVER,FRAME,L(BLUE)

€ 181.50

6813108F30M4Y
ref: 3
FOR 33J

EMBLEM,FRAME COVER

€ 11.00

6813108F30M4Z
ref: 3
FOR Y4M

EMBLEM,FRAME COVER

€ 14.50

6813108F30M5A
ref: 3
FOR Y7H

EMBLEM,FRAME COVER

€ 15.00

0913606105
ref: 4

SCREW(6X20)

€ 2.00

0918006286
ref: 5

SPACER(6.5X10X9.4)

€ 2.50

0932010045
ref: 6

CUSHION

€ 3.50

0932008028
ref: 7

CUSHION

€ 2.50

0932008018
ref: 8

CUSHION

€ 4.00

0324115163
ref: 9

SCREW

€ 2.00

0324115123
ref: 10

SCREW

€ 2.50

0914805038
ref: 11

NUT

€ 2.50

4489424A00
ref: 12

CUSHION

€ 1.50

4716108F00
ref: 13

CUSHION,FRAME COVER

€ 6.00
