HANDLE SWITCH

GSX750F 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

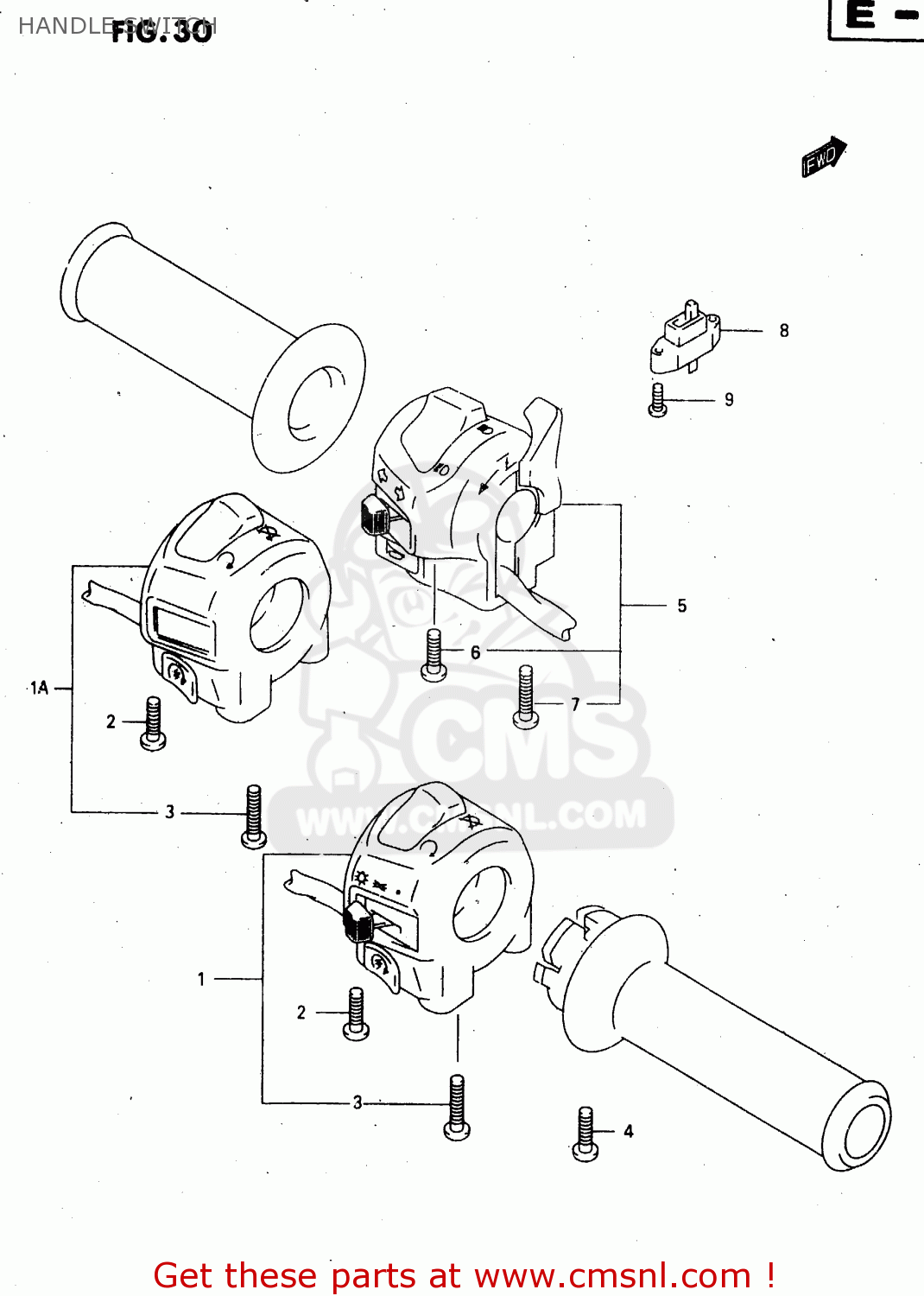

Handle switch diagram GSX750F 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

HANDLE SWITCH GSX750F 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

HANDLE SWITCH GSX750F 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

3720033E11
ref: 1

SWITCH,HANDLE,

€ 174.50

1A

3720033E31
ref: 1A
E24

SWITCH ASSY,HANDLE,R

€ 135.00

2

0211205303
ref: 2

SCREW

€ 1.50

3

0211205503
ref: 3

SCREW

€ 2.00

4

0211205103
ref: 4

SCREW

€ 2.00

5

3740026E11
ref: 5

SWITCH ASSY,HANDLE,L

€ 230.00

6

0211205253
ref: 6

SCREW

€ 1.50

7

0211205453
ref: 7

SCREW

€ 4.00

8

3756038A00
ref: 8

SWITCH ASSY,CLUTCH

€ 20.00

9

3756426E00
ref: 9

SCREW

€ 3.00
