WIRING HARNESS

GSX750F 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

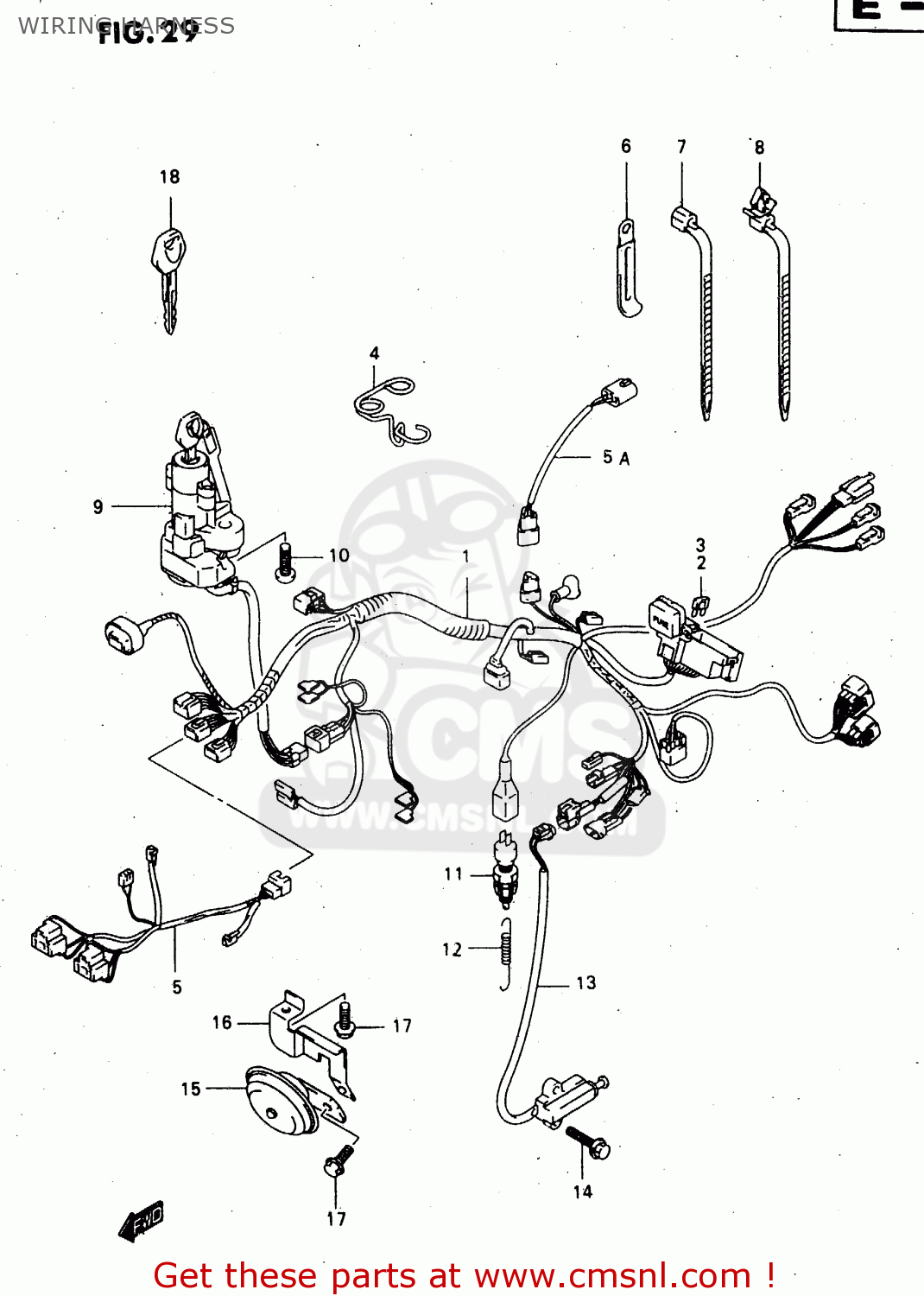

Wiring harness diagram GSX750F 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

WIRING HARNESS GSX750F 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)
WIRING HARNESS GSX750F 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)
WIRING HARNESS GSX750F 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)
prices are in EUR
ref
part #
description
quantity
1
3661008F10
ref: 1
HARNESS,WIRING NO.1
€ 485.00
2
0948110101
ref: 2
FUSE(10A)
0948110101
€ 2.50
3
0948115101
ref: 3
FUSE(15A)
0948115101
€ 1.50
4
3661908F00
ref: 4
GUIDE,WIRING HARNESS
€ 9.00
5
3662008F10
ref: 5
E2, E24
HARNESS,WIRING NO.2
3662008F10
€ 57.00
5
3662008F20
ref: 5
E4, E17, E18, E22, E
HARNESS,WIRING NO.2
€ 54.00
5A
3685308F00
ref: 5A
WIRE,LEAD
3685308F00
€ 33.50
6
0940406433
ref: 6
CLAMP(L:80)
0940406433
€ 3.00
6
0940406435
ref: 6
CLAMP(L:135)
0940406435
€ 2.50
7
0940714403
ref: 7
CLAMP(L:125)
0940714403
€ 2.50
7
0940718402
ref: 7
CLAMP(L:165)
0940718402
€ 2.50
8
0940711402
ref: 8
CLAMP(L:90)
0940711402
€ 2.50
8
0940717401
ref: 8
CLAMP
0940717401
€ 5.00
9
3710033E20
ref: 9
LOCK ASSY,STEERING
3710033E20
€ 223.50
9
3710033E30
ref: 9
E24
LOCK ASSY, STEERING
€ 142.50
10
0913908016
ref: 10
BOLT(8X20)
0913908016
€ 3.50
11
3774024A00
ref: 11
SWITCH ASSY,STOP LAMP
3774024A00
€ 20.50
12
0944306005
ref: 12
SPRING
0944306005
€ 6.00
13
3784044X50
ref: 13
SWITCH ASSY,SIDE STAND
3784044X50
€ 75.50
14
0155006203
ref: 14
MODEL W
BOLT
0155006203
€ 2.50
14
0155006163
ref: 14
MODEL X
BOLT
0155006163
€ 2.50
15
3850008F10
ref: 15
HORN ASSY
3850008F10
€ 75.50
16
3859008F00
ref: 16
BRACKET,HORN
€ 7.00
17
0155008123
ref: 17
BOLT
0155008123
€ 3.50
18
3714633E00
ref: 18
OPT
KEY,BLANK
3714633E00
€ 13.00
