FRONT FENDER

GSX750F 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

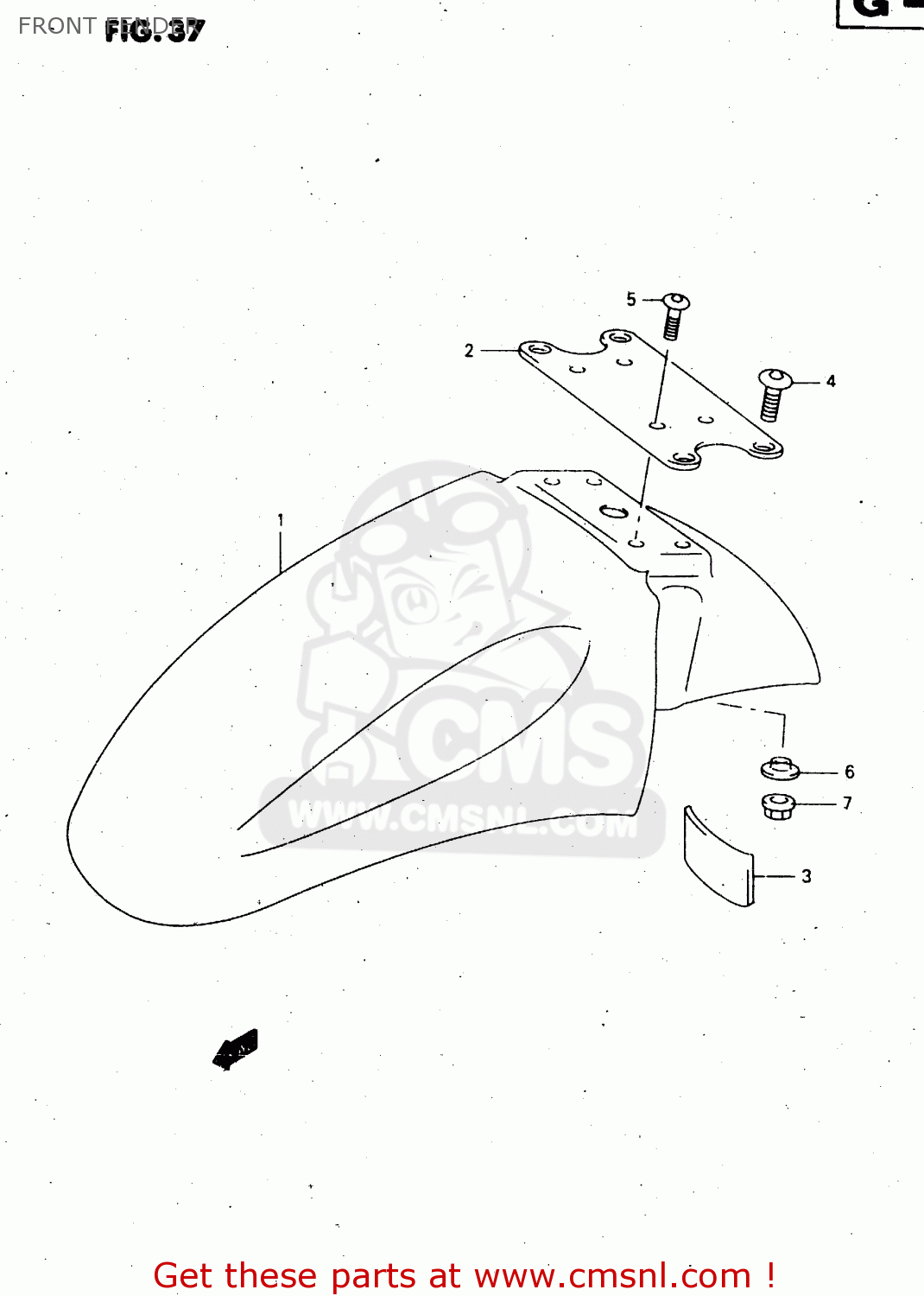

Front fender diagram GSX750F 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

FRONT FENDER GSX750F 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

FRONT FENDER GSX750F 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

5311108F0033J
ref: 1

FENDER,FR

€ 61.00

1

5311108F001UH
ref: 1
MODEL W

FENDER,FR

€ 61.00

1

5311108F00Y4M
ref: 1

FENDER,FR

€ 61.00

1

5311108F00Y7H
ref: 1
MODEL X

FENDER,FR

€ 61.00

2

5311426D00
ref: 2

BRACE,FR FENDER

€ 26.50

3

5314620C00
ref: 3

CUSHION

€ 4.50

4

0913906027
ref: 4

SCREW(6X12)

€ 3.00

5

0913905042
ref: 5

SCREW(5X16)

€ 2.50

6

0916905010
ref: 6

WASHER

€ 3.00

7

0915905026
ref: 7

NUT

€ 2.50
