CYLINDER

GSX750F 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

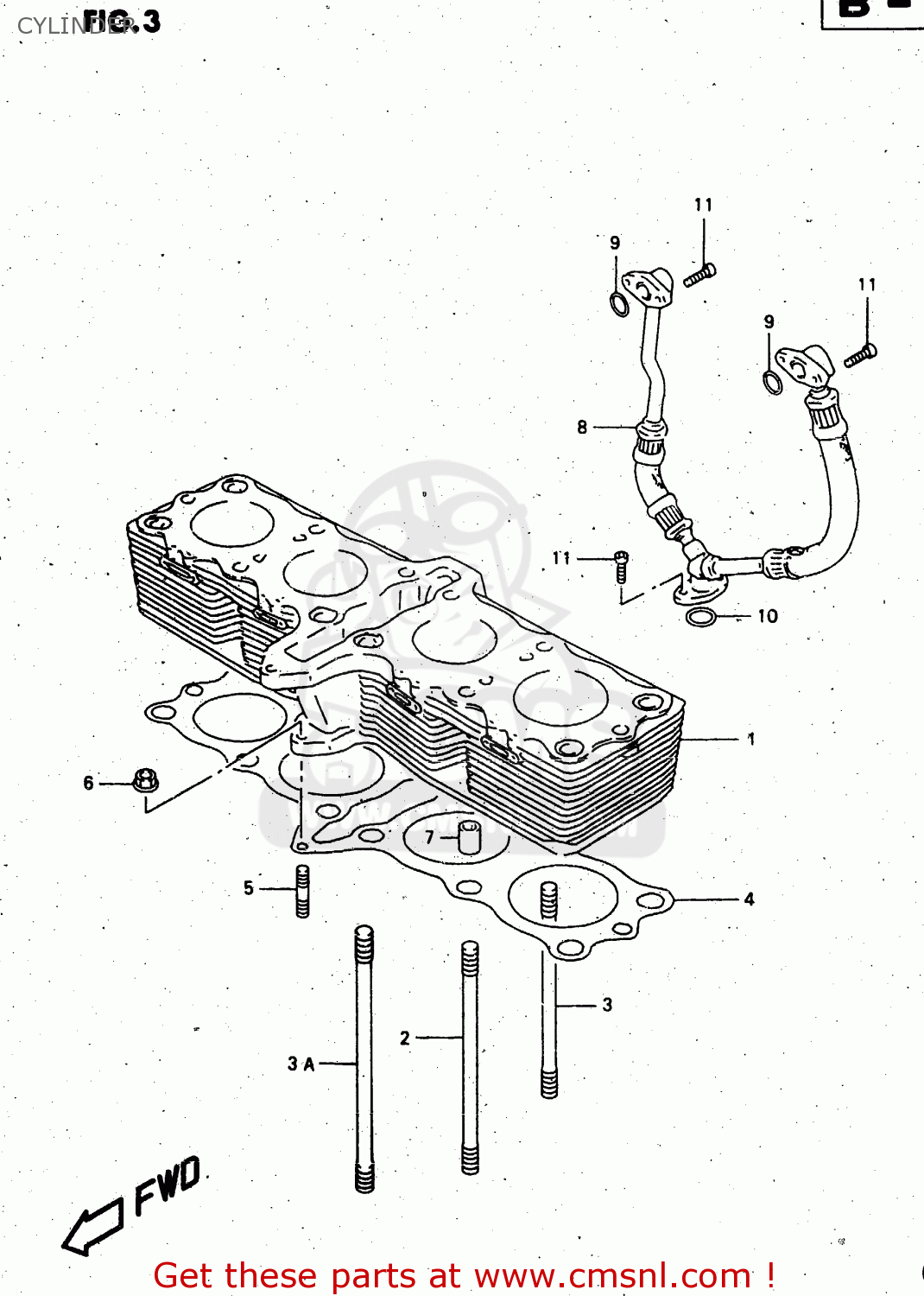

Cylinder diagram GSX750F 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1121007D10
ref: 1

CYLINDER

€ 791.00

1121008F10
ref: 1
E18

CYLINDER

€ 784.00

0910810109
ref: 2

STUD BOLT (L:150)

€ 11.00

0910810073
ref: 3

BOLT,STUD

€ 9.50

0910810099
ref: 3A

BOLT,STUD

€ 15.50

1124127A04
ref: 4

GASKET,CYLINDER (NAS)

€ 20.00

0142106203
ref: 5

STUD,M6X1X32

€ 2.50

0831610063
ref: 6

NUT

€ 2.50

0920613017
ref: 7

PIN(13X10.4X20)

€ 9.00

1132827A04
ref: 8

HOSE,OIL HEAD COOLER

€ 241.00

0928014011
ref: 9

O RING(D:2.5,ID:13.8)

€ 3.50

0928015007
ref: 10

O RING(D:2.4,ID:15.8)

€ 2.00

0713006163
ref: 11

BOLT,OIL FILLE

€ 3.00
