MUFFLER

GSX750F 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

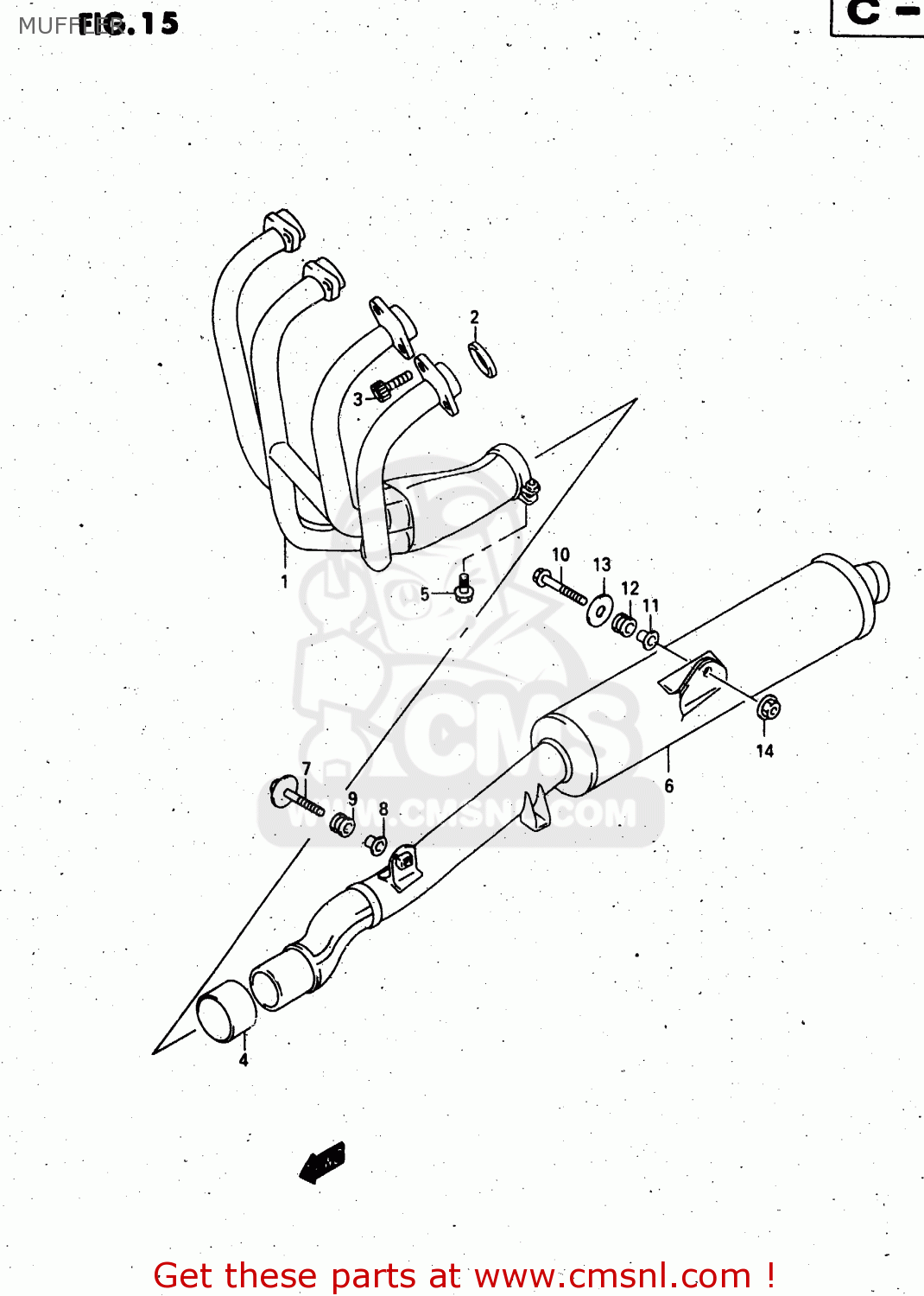

Muffler diagram GSX750F 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1410019E10
ref: 1

EXHAUST

€ 721.50

1418118C00
ref: 2

GASKET,EXHAUST (NAS)

€ 6.50

0713008257
ref: 3

BOLT

€ 3.50

1477127E00
ref: 4

CONNECTOR,MUFFLER

€ 29.00

0155008403
ref: 5

BOLT

€ 3.50

1431019E10H01
ref: 6

BODY,MUFFLER

€ 957.00

0911808068
ref: 7

BOLT 8X40

€ 7.50

0918008152
ref: 8

SPACER(8.6X12X24.2)

€ 6.00

0932012048
ref: 9

CUSHION

€ 5.00

0155008457
ref: 10

BOLT

€ 4.00

0918008156
ref: 11

SPACER(8.6X12X27.1)

€ 6.50

0932012049
ref: 12

CUSHION

€ 9.00

0916008140
ref: 13

WASHER (8.5X33X1.6)

€ 3.00

0836125088
ref: 14

NUT

€ 2.50
