SIGNAL GENERATOR

GSX750F 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

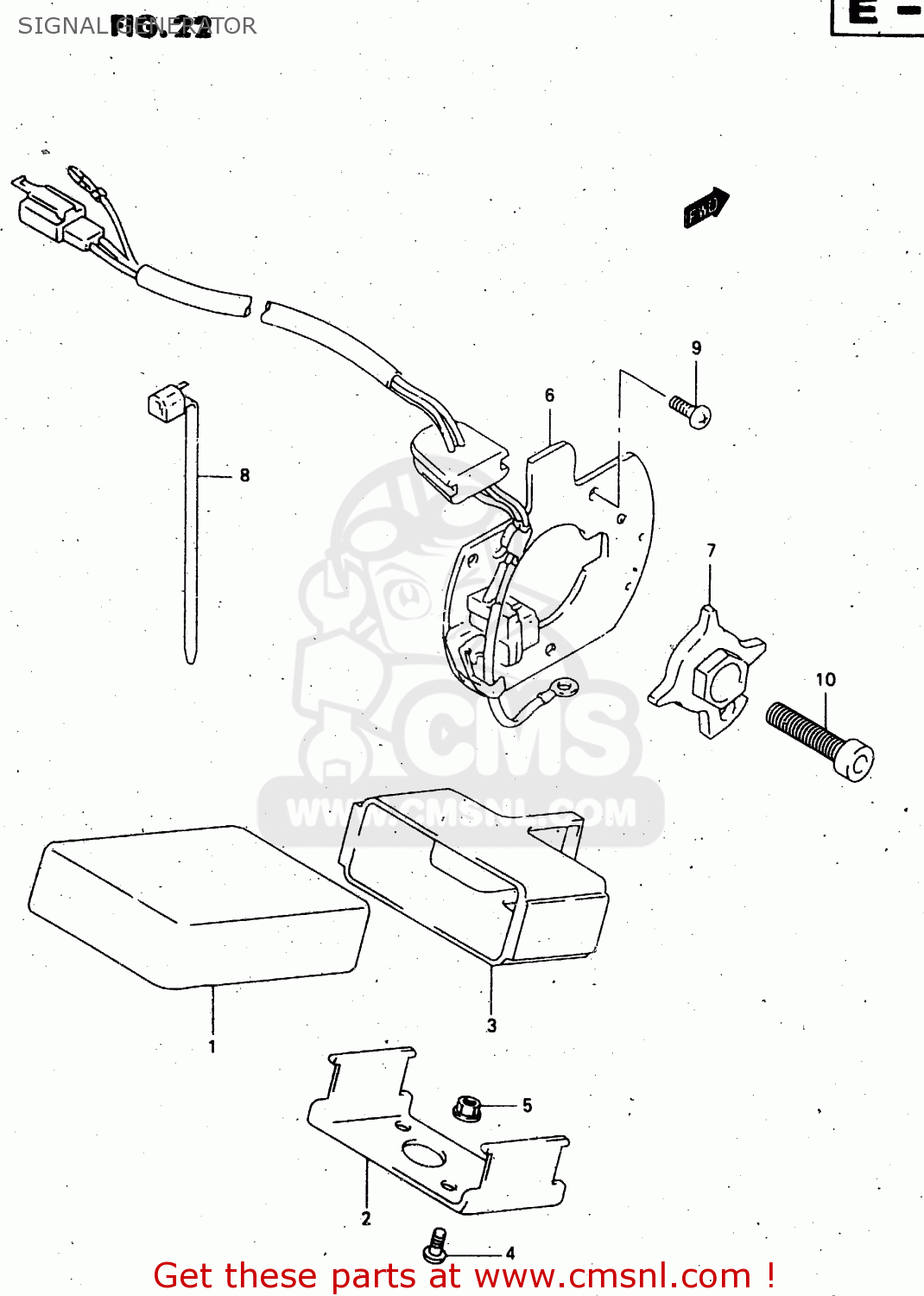

Signal generator diagram GSX750F 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

3290008F10
ref: 1

IGNITOR ASSY

€ 508.00

3290008F50
ref: 1
E18

IGNITER ASSY

€ 0.00

3293308F00
ref: 2

BRACKET,IGNITOR

€ 4.50

3298040C01
ref: 3

CUSHION,IGNITOR

€ 9.50

0214205123
ref: 4

SCREW 5X12

€ 1.50

0831610053
ref: 5

NUT

€ 2.50

3311017C00
ref: 6

GENERATOR ASSY,SIGNAL

€ 324.00

3312019C20
ref: 7

ROTOR,SIGNAL GENERATOR

€ 182.00

0940714403
ref: 8

CLAMP(L:125)

€ 2.50

0211205103
ref: 9

SCREW

€ 2.00

0713008303
ref: 10

BOLT

€ 3.00

all assemblies
