FRONT BRAKE HOSE

GSX750F 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

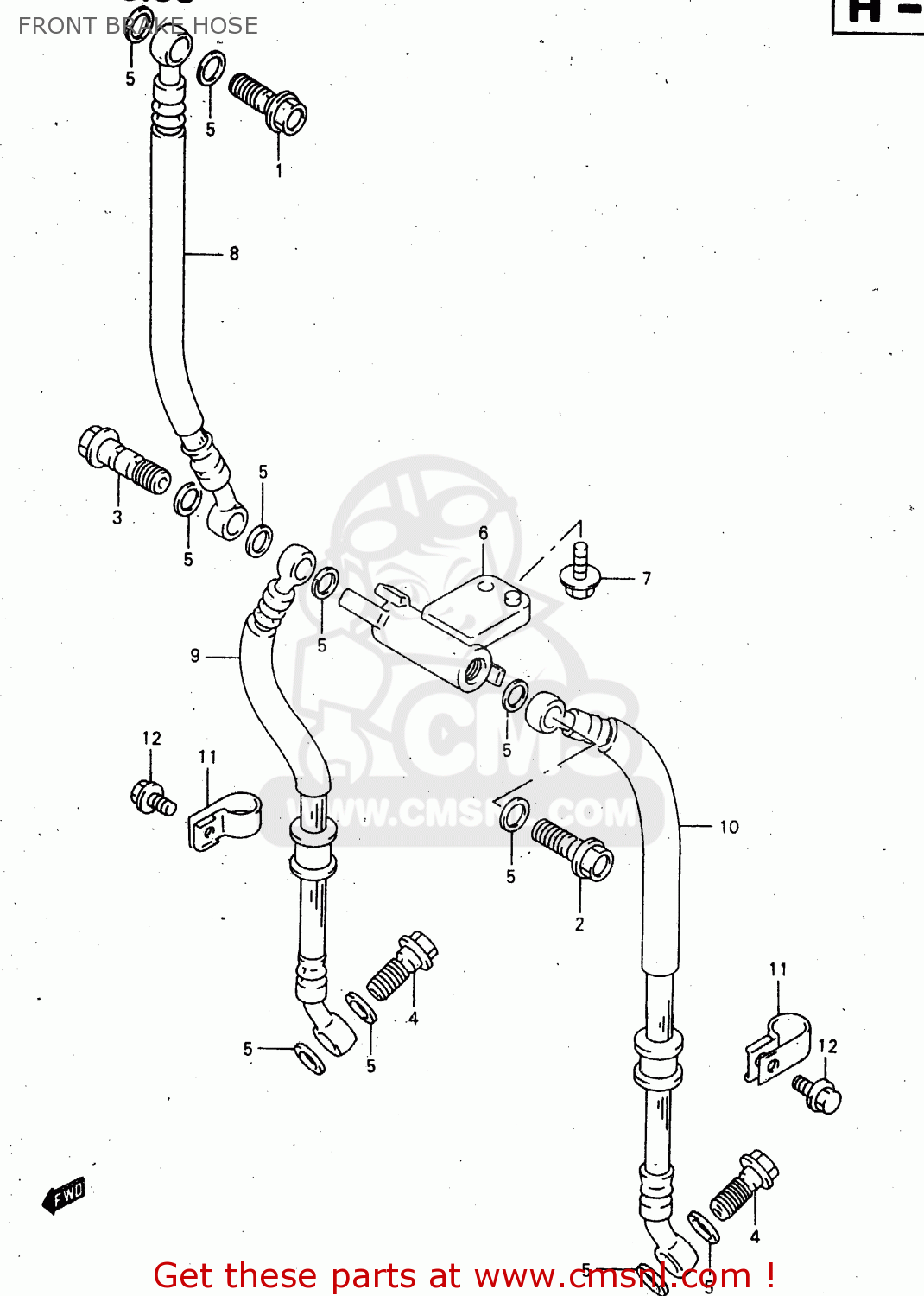

Front brake hose diagram GSX750F 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

0936010041
ref: 1

BOLT UNION

€ 6.50

0936010041
ref: 2

BOLT UNION

€ 6.50

0936010043
ref: 3

BOLT UNION

€ 6.50

0936010042
ref: 4

BOLT UNION

€ 5.00

0916110009
ref: 5

WASHER(10X15X1.5)

€ 2.00

5949117E00
ref: 6

JOINT,BRAKE HOSE

€ 68.50

0155006163
ref: 7

BOLT

€ 2.50

5948008F10
ref: 8

HOSE,FRONT BRAKE NO.1

€ 41.50

5924008F00
ref: 9

HOSE COMP,FRONT BRAKE

€ 88.50

5944008F00
ref: 10

HOSE COMP,FRONT BRAKE

€ 56.00

5926845D00
ref: 11

CLAMP,FR BRAKE HOSE NO.2

€ 9.00

0155006123
ref: 12

BOLT

€ 2.50

all assemblies
