HEADLAMP (E4, E17, E18, E22, E25, E34, P37)

GSX750F 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

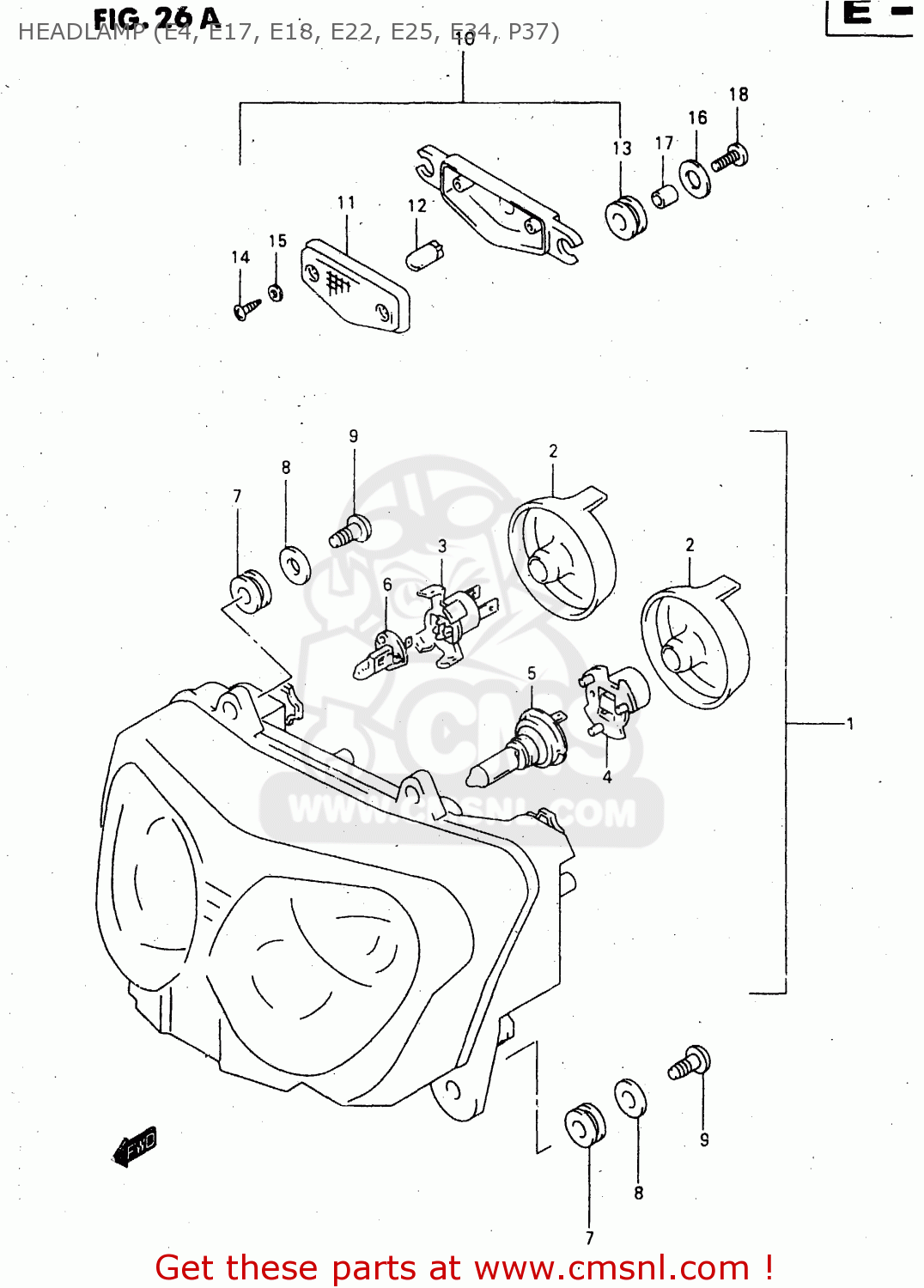

Headlamp (e4, e17, e18, e22, e25, e34, p37) diagram GSX750F 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

3510008F10999
ref: 1

HEADLAMP ASSY

€ 472.00

3512574F00
ref: 2

COVER,SOCKET

€ 11.50

3517518E50
ref: 3
FOR 09471-12122

ADAPTER ASSY

€ 21.00

3417533E50
ref: 4
FOR 09471-12188

ADAPTER ASSY

€ 20.50

0947112188
ref: 5
PURCHASE LOCALLY, LH

BULB(12V55W/H7/PX26D/PHILIPS)

€ 12.50

0947112122
ref: 6
PURCHASE LOCALLY, RH

BULB(12V55W/H1/P14.5S/OSRA,PHI

€ 4.00

3513733E00
ref: 7

CUSHION,HEADLAMP

€ 3.00

0916005045
ref: 8

WASHER(5.5X18X1)

€ 2.00

0351205163
ref: 9

SCREW

€ 2.50

3611008F00
ref: 10

LAMP ASSY,FR POSITION

€ 59.50

3611208F00
ref: 11

LENS

€ 9.50

0947112081
ref: 12

BULB(12V5W)

€ 1.50

0932008001
ref: 13

CUSHION

€ 3.50

0321104123
ref: 14

SCREW

€ 1.50

3611708F00
ref: 15

WASHER

€ 3.50

0916005045
ref: 16

WASHER(5.5X18X1)

€ 2.00

0918005048
ref: 17

SPACER(5.5X8X10.5)

€ 2.00

0214205203
ref: 18

SCREW 5X20

€ 2.00
