Buy Suzuki GSX Parts Online


REAR MASTER CYLINDER

GSX750F 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

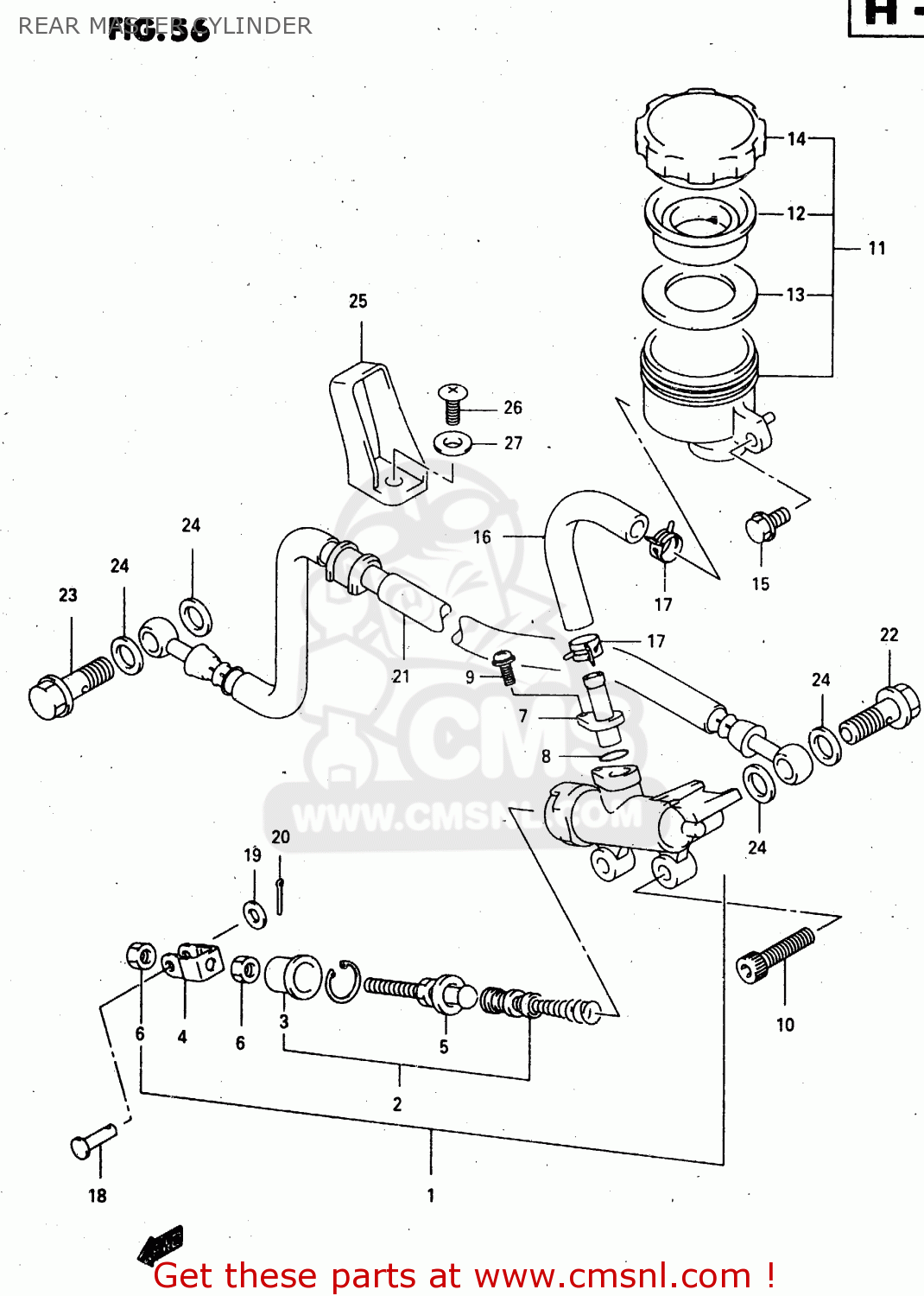

Rear master cylinder diagram GSX750F 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

REAR MASTER CYLINDER GSX750F 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)
REAR MASTER CYLINDER GSX750F 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)
REAR MASTER CYLINDER GSX750F 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)
prices are in EUR
ref
part #
description
quantity
1
6960008F00
ref: 1
CYLINDER ASSY,RR MASTER
6960008F00
€ 194.50
2
6960004820
ref: 2
PISTON/CUP SET
6960004820
€ 31.00
3
6969100A00
ref: 3
BOOT
6969100A00
€ 3.50
4
6969219A00
ref: 4
YOKE
6969219A00
€ 10.50
5
6967019C00
ref: 5
ROD,PUSH
€ 25.00
6
6969305A00
ref: 6
NUT
6969305A00
€ 1.50
7
6967200A00
ref: 7
CONNECTOR
6967200A00
€ 5.50
8
6968634200
ref: 8
O RING
6968634200
€ 3.50
9
0211274123
ref: 9
SCREW
€ 2.50
10
0910606073
ref: 10
BOLT(6X16)
0910606073
€ 2.50
11
6974008F00
ref: 11
TANK ASSY,RR RESERVOIR
6974008F00
€ 93.50
12
5966718441
ref: 12
DIAPHRAGM
5966718441
€ 8.50
13
5966818441
ref: 13
PLATE,DIAPHRAGM
5966818441
€ 3.50
14
5966907D00
ref: 14
CAP
5966907D00
€ 16.50
15
0155006123
ref: 15
BOLT
0155006123
€ 2.50
16
6973108F00
ref: 16
HOSE,RESERVOIR TANK
€ 16.00
17
0940113417
ref: 17
CLIP
0940113417
€ 2.50
18
0920006037
ref: 18
PIN
0920006037
€ 5.00
19
0832201063
ref: 19
WASHER
0832201063
€ 2.00
20
0411120158
ref: 20
PIN
0411120158
€ 1.50
21
6948008F00
ref: 21
HOSE COMP,REAR BRAKE
€ 105.00
22
0936010042
ref: 22
BOLT UNION
0936010042
€ 5.00
23
0936010041
ref: 23
BOLT UNION
€ 6.50
24
0916110009
ref: 24
WASHER(10X15X1.5)
0916110009
€ 2.00
25
6924306C00
ref: 25
GUIDE,RR BRAKE HOSE
6924306C00
€ 8.00
26
0214206163
ref: 26
SCREW
0214206163
€ 2.50
27
0916906041
ref: 27
WASHER
0916906041
€ 2.00
