CARBURETOR

GSX750F 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

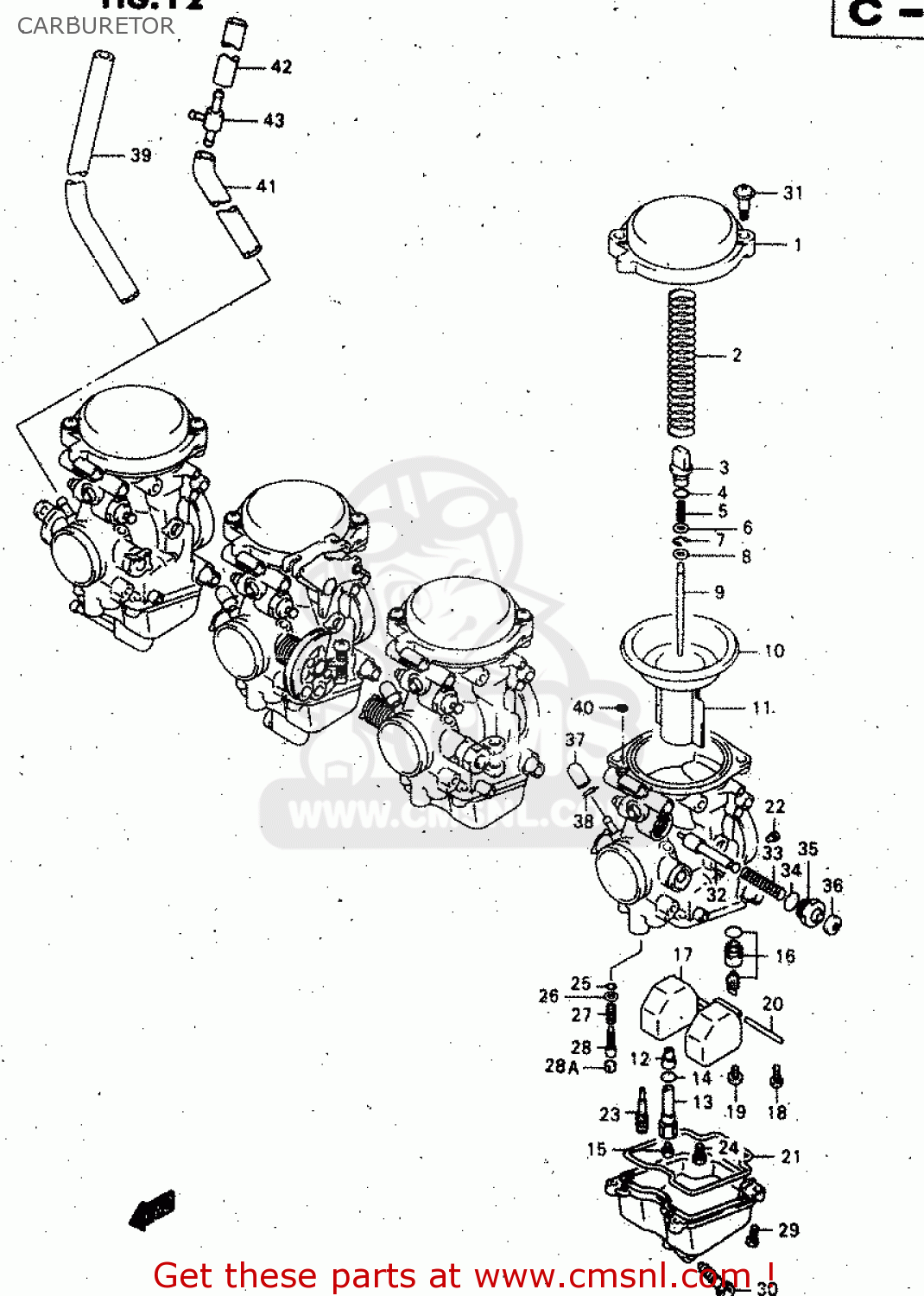

Carburetor diagram GSX750F 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

CARBURETOR GSX750F 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)
CARBURETOR GSX750F 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)
CARBURETOR GSX750F 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)
prices are in EUR
ref
part #
description
quantity
0
1320108F00
ref: 0
CARBURETOR ASS
€ 543.50
0
1320108F10
ref: 0
E18
CARBURETOR ASSY, LH
€ 0.00
0
1320108F50
ref: 0
P37
CARBURETOR ASSY, LH
€ 0.00
0
1320208F00
ref: 0
CARBURETOR ASS
€ 576.50
0
1320208F10
ref: 0
E18
CARBURETOR ASSY, ML
1320208F10
€ 361.00
0
1320208F50
ref: 0
P37
CARBURETOR ASSY, ML
€ 0.00
0
1320308F00
ref: 0
CARBURETOR ASS
€ 644.50
0
1320308F10
ref: 0
E18
CARBURETOR ASSY, MR
€ 0.00
0
1320308F50
ref: 0
P37
CARBURETOR ASSY, MR
€ 0.00
0
1320408F00
ref: 0
CARBURETOR ASS
€ 543.50
0
1320408F10
ref: 0
E18
CARBURETOR ASSY, RH
€ 0.00
0
1320408F50
ref: 0
P37
CARBURETOR ASSY, RH
€ 0.00
1
1350208F00
ref: 1
COVER,DIAPHRAGM
1350208F00
€ 32.00
1
1350208F10
ref: 1
E18
COVER,DIAPHRAGM
€ 0.00
2
1357333E00
ref: 2
SPRING
1357333E00
€ 10.50
3
1341833E00
ref: 3
HOLDER
1341833E00
€ 4.50
4
0928005004
ref: 4
O RING(D:1.9,ID:4.8)
0928005004
€ 2.00
5
1348133E00
ref: 5
SPRING
1348133E00
€ 3.00
6
1338219E00
ref: 6
WASHER
1338219E00
€ 3.00
7
1339417E60
ref: 7
E RING,MULTIPLE JET NOZZLE
1339417E60
€ 1.50
8
1338733E00
ref: 8
RING
€ 5.00
9
1338308F00
ref: 9
NEEDLE,JET
1338308F00
€ 19.00
9
1338308F10
ref: 9
E18
NEEDLE, JET (5DF19-53-3)
€ 0.00
10
1350717C01
ref: 10
DIAPHRAGM
1350717C01
€ 24.50
11
1350108F00
ref: 11
VALVE,PISTON
1350108F00
€ 83.50
12
0949400910
ref: 12
JET,NEEDLE(P-0)
0949400910
€ 38.50
13
1338508F00
ref: 13
HOLDER,JET
1338508F00
€ 32.00
14
1324643010
ref: 14
O RING
1324643010
€ 4.00
15
0949123019
ref: 15
JET,MAIN
0949123019
€ 11.50
15
0949124026
ref: 15
E18
JET,MAIN(120)
0949124026
€ 14.00
15
0949123019
ref: 15
E18
JET,MAIN
0949123019
€ 11.50
16
1337008F00
ref: 16
VALVE ASSEMBLY,NEEDLE
€ 68.50
16
1337008F50
ref: 16
P37
VALVE ASSY,NEEDLE
1337008F50
€ 68.50
17
1325004F00
ref: 17
FLOAT ASSY
1325004F00
€ 27.50
18
0211204083
ref: 18
SCREW
€ 2.00
19
1360205A10
ref: 19
SCREW
1360205A10
€ 4.00
20
1325401010
ref: 20
PIN,FLOAT
1325401010
€ 3.00
21
1325804F00
ref: 21
GASKET (NAS)
1325804F00
€ 9.00
22
0949226002
ref: 22
JET,POWER(130)
0949226002
€ 16.50
22
0949328013
ref: 22
E18
JET,PILOT AIR(140)
0949328013
€ 10.50
23
0949215017
ref: 23
JET,PILOT(15)
0949215017
€ 19.50
23
0949212008
ref: 23
E18
JET,PILOT(12.5)
0949212008
€ 14.00
24
0949150006
ref: 24
JET,STARTER(50)
0949150006
€ 15.00
25
1329529900
ref: 25
O RING,PILOT AIR SCREW
1329529900
€ 4.00
26
1329129900
ref: 26
WASHER
1329129900
€ 2.00
27
1326848700
ref: 27
SPRING,THROTTLE SCREW
1326848700
€ 3.50
28
1327933E00
ref: 28
ADJUSTER
1327933E00
€ 9.50
28
1327933E00
ref: 28
ADJUSTER
1327933E00
€ 9.50
28
1327933E00
ref: 28
E18
ADJUSTER
1327933E00
€ 9.50
28
1327933E00
ref: 28
P37
ADJUSTER
1327933E00
€ 9.50
28A
1328105A00
ref: 28A
E18
PLUG
1328105A00
€ 3.50
29
0211204107
ref: 29
SCREW
0211204107
€ 2.00
30
1324713A00
ref: 30
SCREW,DRAIN
1324713A00
€ 5.50
31
1324733E00
ref: 31
SCREW
1324733E00
€ 3.00
32
1341105300
ref: 32
PLUNGER
1341105300
€ 23.50
33
1341726D00
ref: 33
SPRING
1341726D00
€ 5.50
34
1327847090
ref: 34
O RING
1327847090
€ 2.00
35
1341844080
ref: 35
GUIDE SCREW,PLUNGER
1341844080
€ 8.00
36
1368231210
ref: 36
CAP,STARTER VALVE
1368231210
€ 5.00
37
1327484000
ref: 37
LH, ML, MR
CAP
1327484000
€ 5.50
38
0940106101
ref: 38
LH, ML, MR
CLIP
0940106101
€ 2.50
39
1368319E10
ref: 39
RH, EXCEPT E18
HOSE
€ 22.00
40
1329533010
ref: 40
O RING
1329533010
€ 4.50
41
1368319E40
ref: 41
E18
HOSE
€ 22.00
42
1368319E30
ref: 42
E18
HOSE
€ 0.00
43
1368548B00
ref: 43
E18
NIPPLE
1368548B00
€ 9.00
