FRAME

GSX750F 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

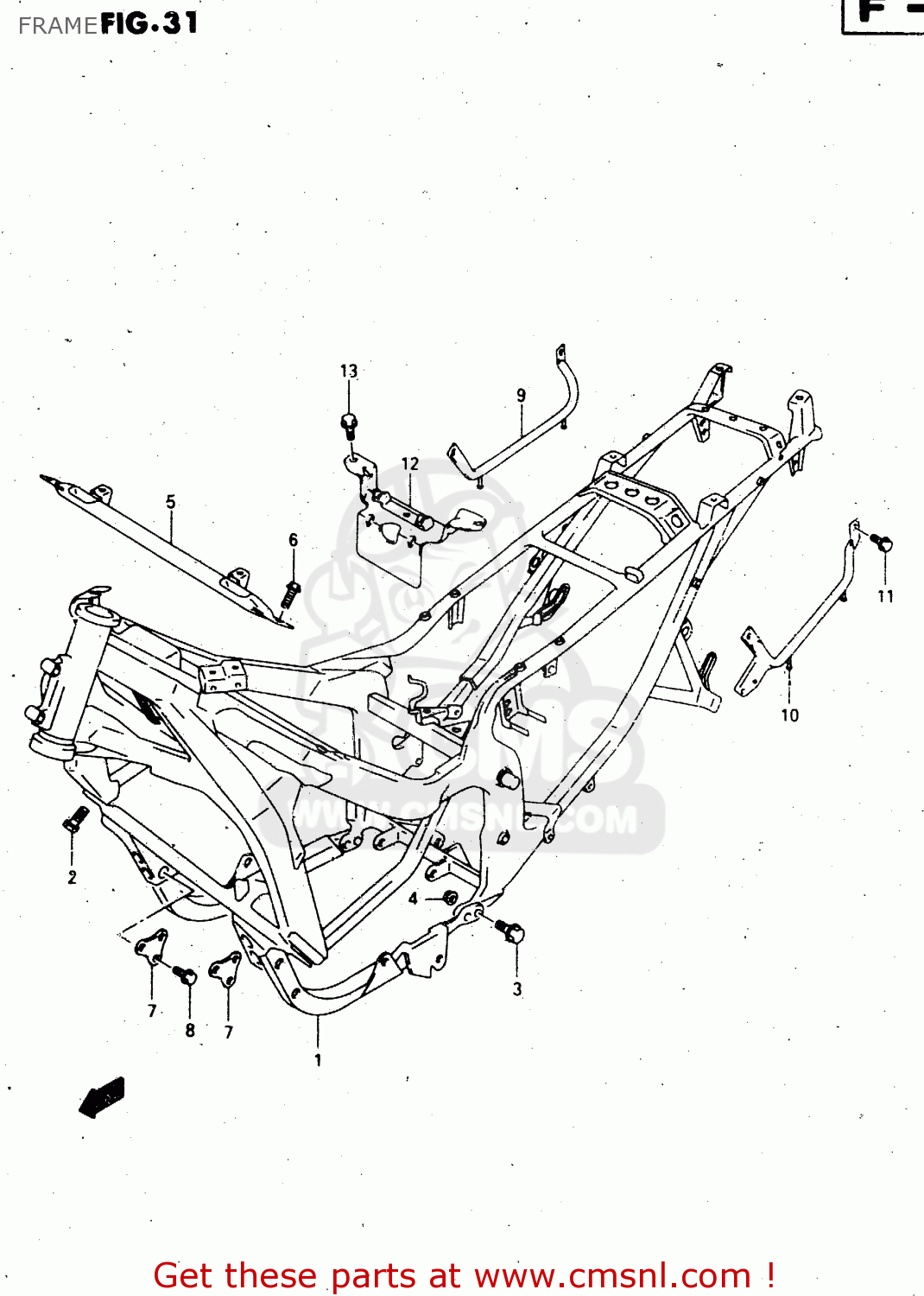

Frame diagram GSX750F 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

4110008FA0019
ref: 1

FRAME (BLACK)

€ 2,951.50

4110008FB0019
ref: 1
E18

FRAME (BLACK)

€ 2,951.50

0157008253
ref: 2

BOLT

€ 2.50

0155008303
ref: 3

BOLT

€ 3.00

0831931083
ref: 4

NUT

€ 2.50

4175034C00
ref: 5

TUBE,FRAME BRIDGE NO.2

€ 44.00

0910308266
ref: 6

BOLT(8X20)

€ 2.50

4191119C00019
ref: 7

PLATE,ENG MTG NO.1

€ 5.00

0157008163
ref: 8

BOLT, UPPER

€ 2.00

4397008F00
ref: 9

GRIP,RR,R

€ 31.50

4398008F00
ref: 10

GRIP,RR,L

€ 36.50

0155008163
ref: 11

BOLT

€ 3.00

4741008F01
ref: 12

PLATE,ELECTRIC PARTS HOLDER

€ 25.00

0155006163
ref: 13

BOLT

€ 2.50
