ELECTRICAL

GSX750F 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

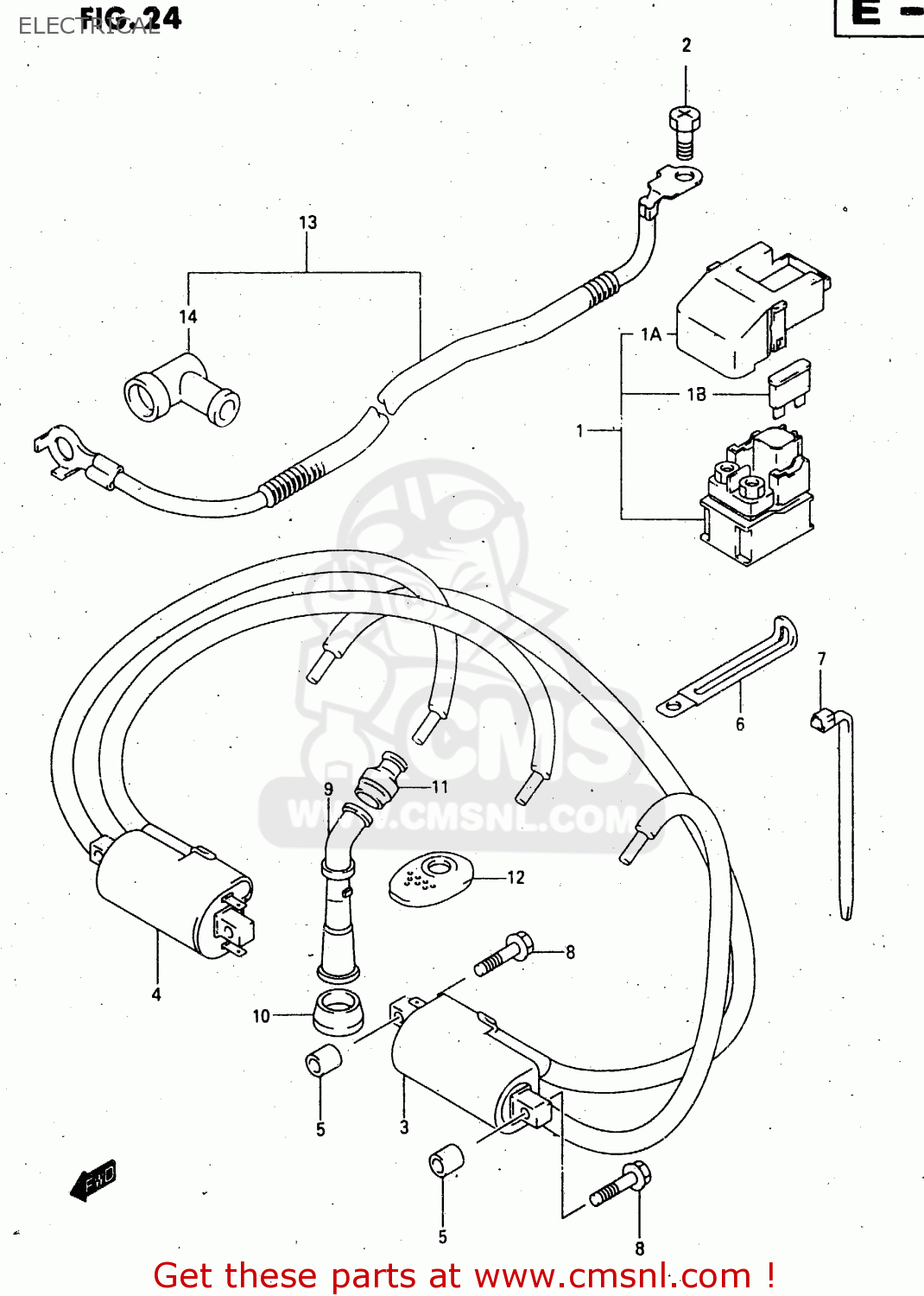

Electrical diagram GSX750F 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

3180021E20
ref: 1

RELAY ASSY,STARTING MOTOR

€ 69.00

3186121E20
ref: 1A

COVER,RELAY ASSEMBLY

€ 10.50

0948130101
ref: 1B

FUSE(30A)

€ 6.00

0912806013
ref: 2

SCREW(6X8)

€ 1.50

3341019C01
ref: 3

COIL ASSY,IGNITION

€ 147.00

3342019C01
ref: 4

COIL ASSY,IGNITION

€ 162.50

0918006174
ref: 5

SPACER(6.2X12X14)

€ 5.50

0940406432
ref: 6

CLAMP(L:65)

€ 2.50

0940718402
ref: 7

CLAMP(L:165)

€ 2.50

0155006453
ref: 8

BOLT (6X45)

€ 2.50

3351048B10
ref: 9

CAP,SPARK PLUG

€ 29.50

3354123E01
ref: 10

SEAL,SPARK PLUG CAP

€ 7.00

3354238B00
ref: 11

SEAL,HIGH TENSION CORD

€ 4.50

3354348B00
ref: 12

COVER,SPARK PLUG CAP

€ 12.50

3381008F00
ref: 13

WIRE,BATTERY MINUS

€ 24.50

3186148B10
ref: 14

CAP,STARTER MOTOR LEAD

€ 4.50
