HEADLAMP (E2, E24)

GSX750F 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

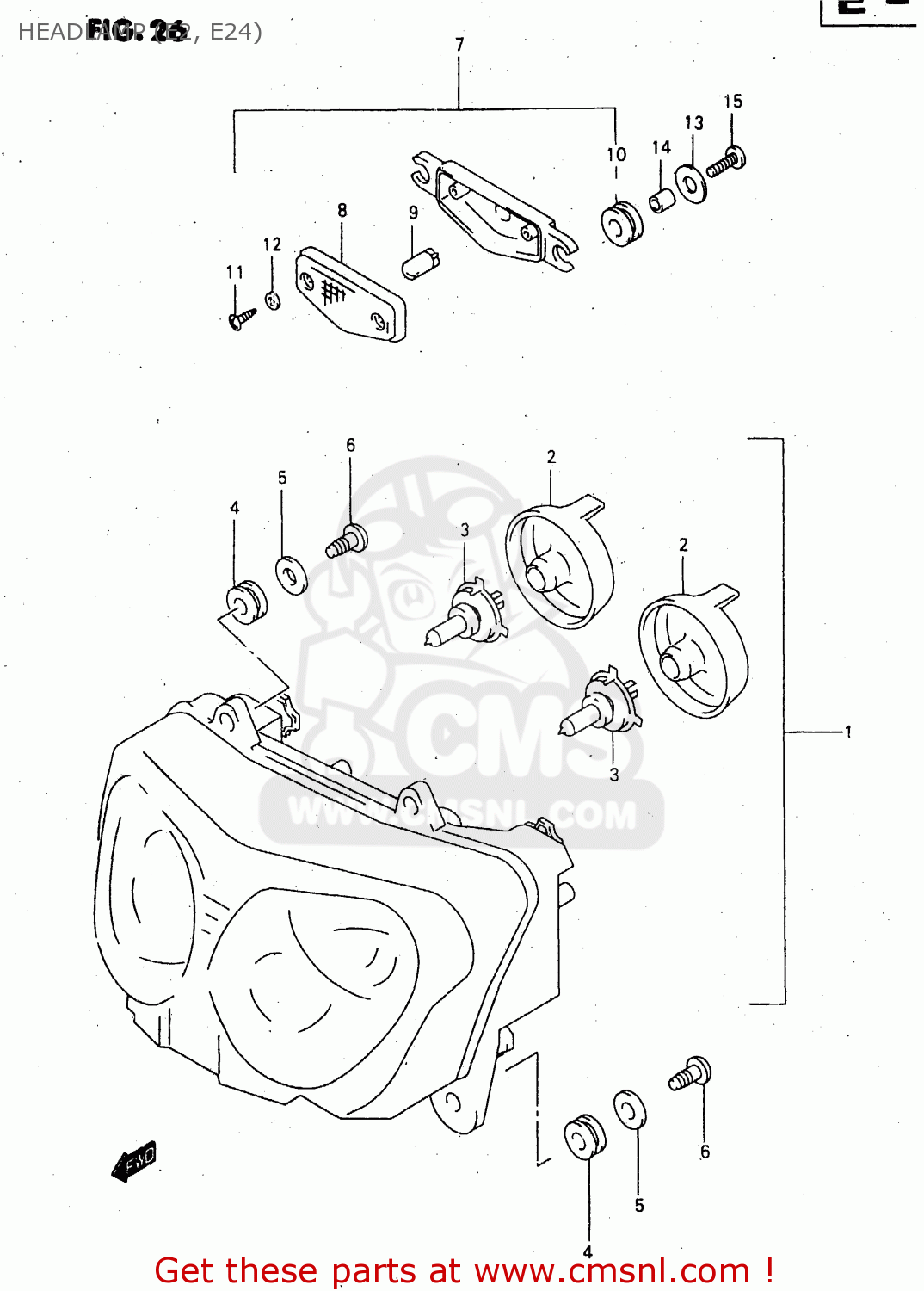

Headlamp (e2, e24) diagram GSX750F 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

3510008F00999
ref: 1

HEADLAMP ASSEMBLY

€ 437.00

3512574F00
ref: 2

COVER,SOCKET

€ 11.50

0947112185
ref: 3

BULB(12V60/55W,H4)

€ 8.00

3513733E00
ref: 4

CUSHION,HEADLAMP

€ 3.00

0916005045
ref: 5

WASHER(5.5X18X1)

€ 2.00

0351105163
ref: 6

SCREW,SIDE HOL

€ 2.50

3611008F00
ref: 7

LAMP ASSY,FR POSITION

€ 59.50

3611208F00
ref: 8

LENS

€ 9.50

0947112081
ref: 9

BULB(12V5W)

€ 1.50

0932008001
ref: 10

CUSHION

€ 3.50

0321104123
ref: 11

SCREW

€ 1.50

3611708F00
ref: 12

WASHER

€ 3.50

0916005045
ref: 13

WASHER(5.5X18X1)

€ 2.00

0918005048
ref: 14

SPACER(5.5X8X10.5)

€ 2.00

0214205203
ref: 15

SCREW 5X20

€ 2.00
