2ND AIR

GSXR1000 2012 (L2) USA (E03)

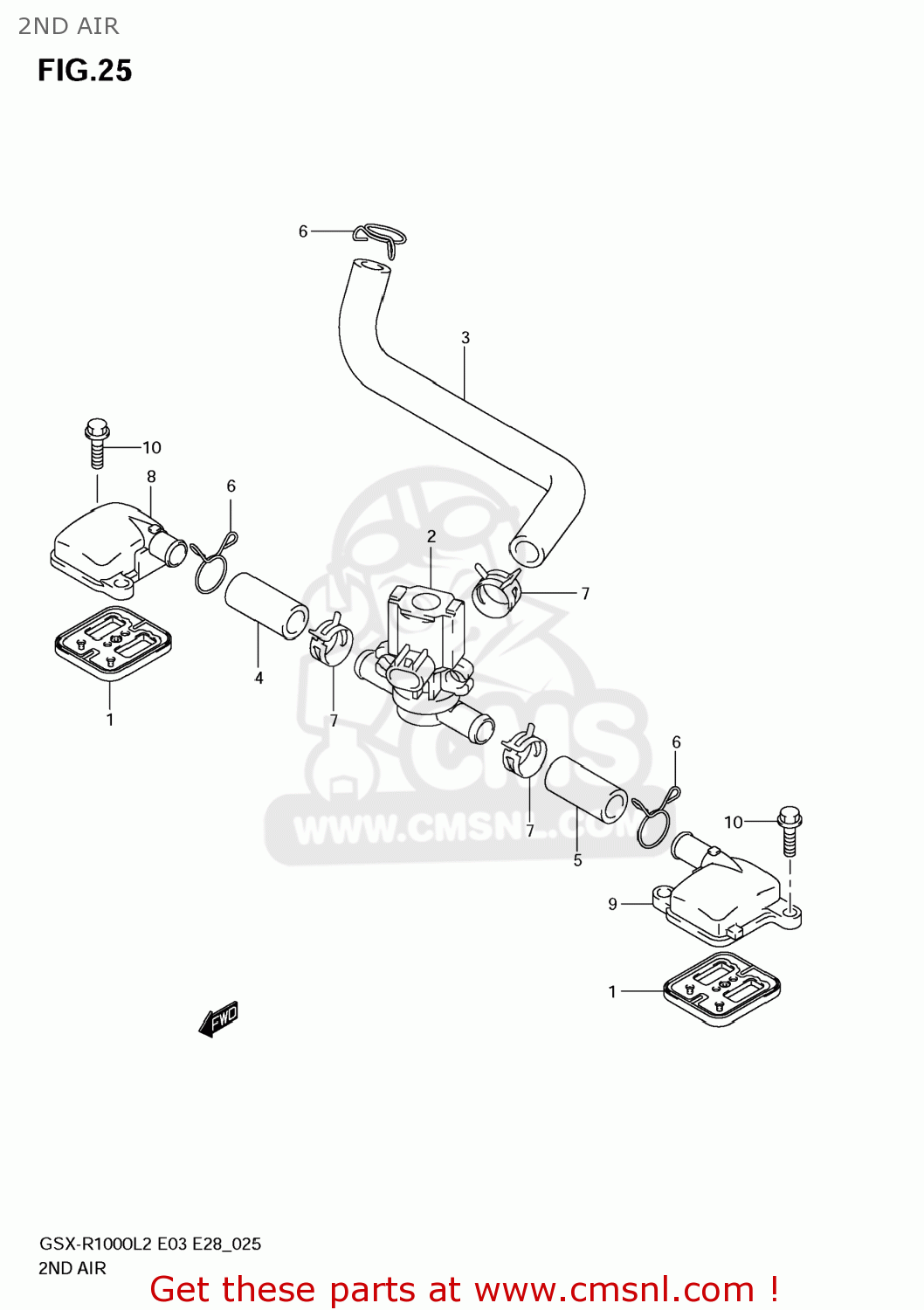

2nd air diagram GSXR1000 2012 (L2) USA (E03)

2ND AIR GSXR1000 2012 (L2) USA (E03)

2ND AIR GSXR1000 2012 (L2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1845035F11
ref: 1

VALVE ASSY,2ND AIR REED

€ 62.00

2

1851029G40
ref: 2

VALVE ASSY,AIR CUT

€ 105.00

3

1871147H00
ref: 3

HOSE,2ND AIR CLEANER

€ 20.00

4

1846147H00
ref: 4

HOSE,2ND AIR VALVE,R

€ 8.50

5

1847147H00
ref: 5

HOSE,2ND AIR VALVE,L

€ 8.50

6

0940117201
ref: 6

CLIP

€ 2.50

7

0940117401
ref: 7

CLIP

€ 2.00

8

1853147H00
ref: 8

COVER,2ND AIR REED VALVE,R

€ 18.00

9

1853247H00
ref: 9

COVER,2ND AIR REED VALVE,L

€ 23.00

10

0910306201
ref: 10

BOLT(6X20)

€ 2.00
