SPEEDOMETER (GSX-R1000 L2 E03)
GSXR1000 2012 (L2) USA (E03)

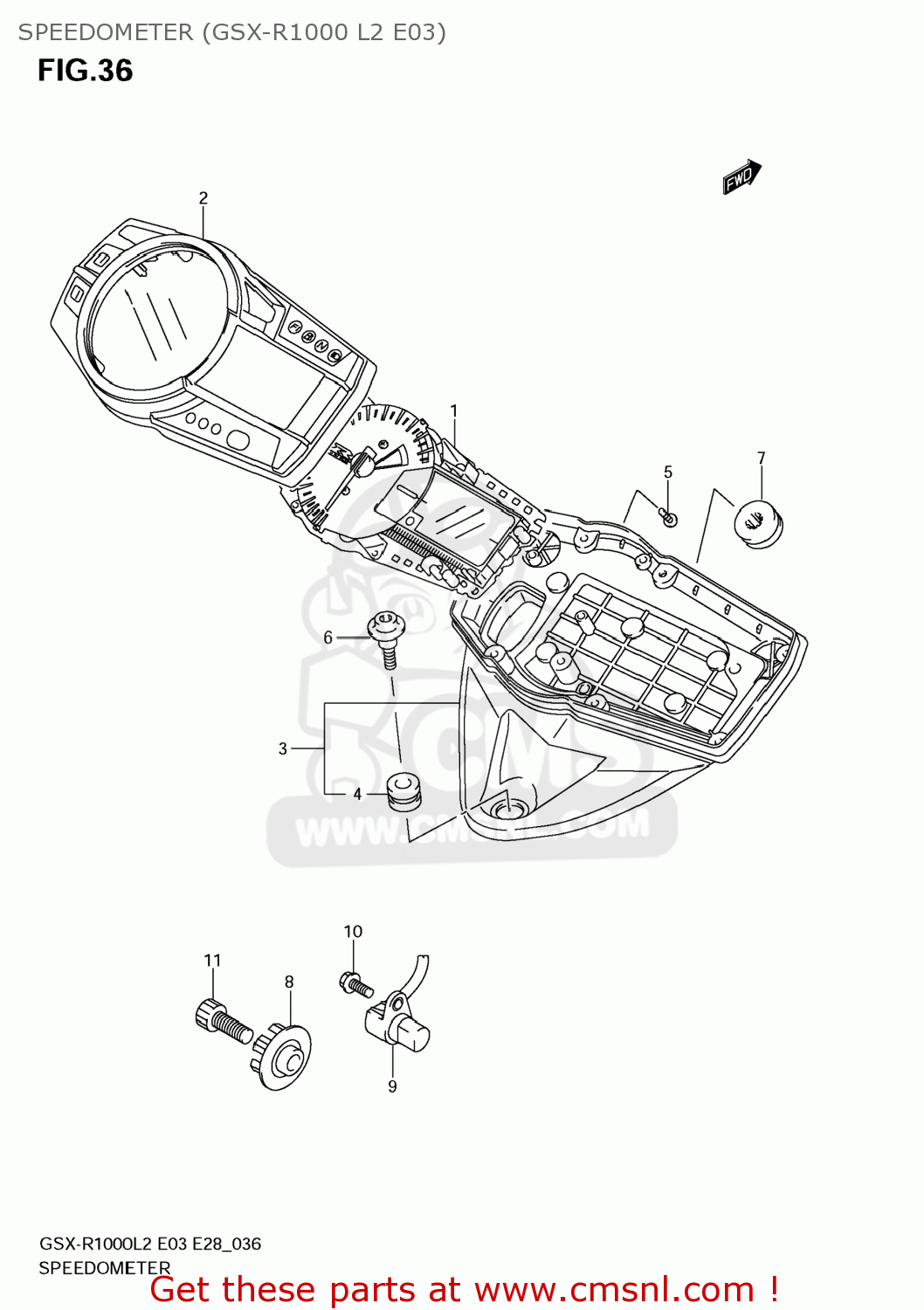

Speedometer (gsx-r1000 l2 e03) diagram GSXR1000 2012 (L2) USA (E03)
SPEEDOMETER (GSX-R1000 L2 E03) GSXR1000 2012 (L2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3412047H50
ref: 1
COMBINATION METER
€ 627.00
2
3415047H00
ref: 2
CASE ASSY,UPR
€ 113.50
3
3411147H00
ref: 3
CASE ASSY,LWR
€ 80.50
4
3495533E00
ref: 4
CUSHION,METER
€ 3.00
5
0913203008
ref: 5
SCREW(3X16)
€ 1.50
6
3414918G00
ref: 6
SCREW,SPEEDOMETER
€ 2.00
7
3495513E00
ref: 7
CUSHION
€ 3.00
8
3498147H01
ref: 8
ROTOR,SPEED
€ 17.50
9
3499035F00
ref: 9
SENSOR,SPEED
€ 112.50
10
071200512B
ref: 10
BOLT
€ 2.00
11
071300825B
ref: 11
BOLT
€ 3.50
