SEAT
GSXR1000 2012 (L2) USA (E03)

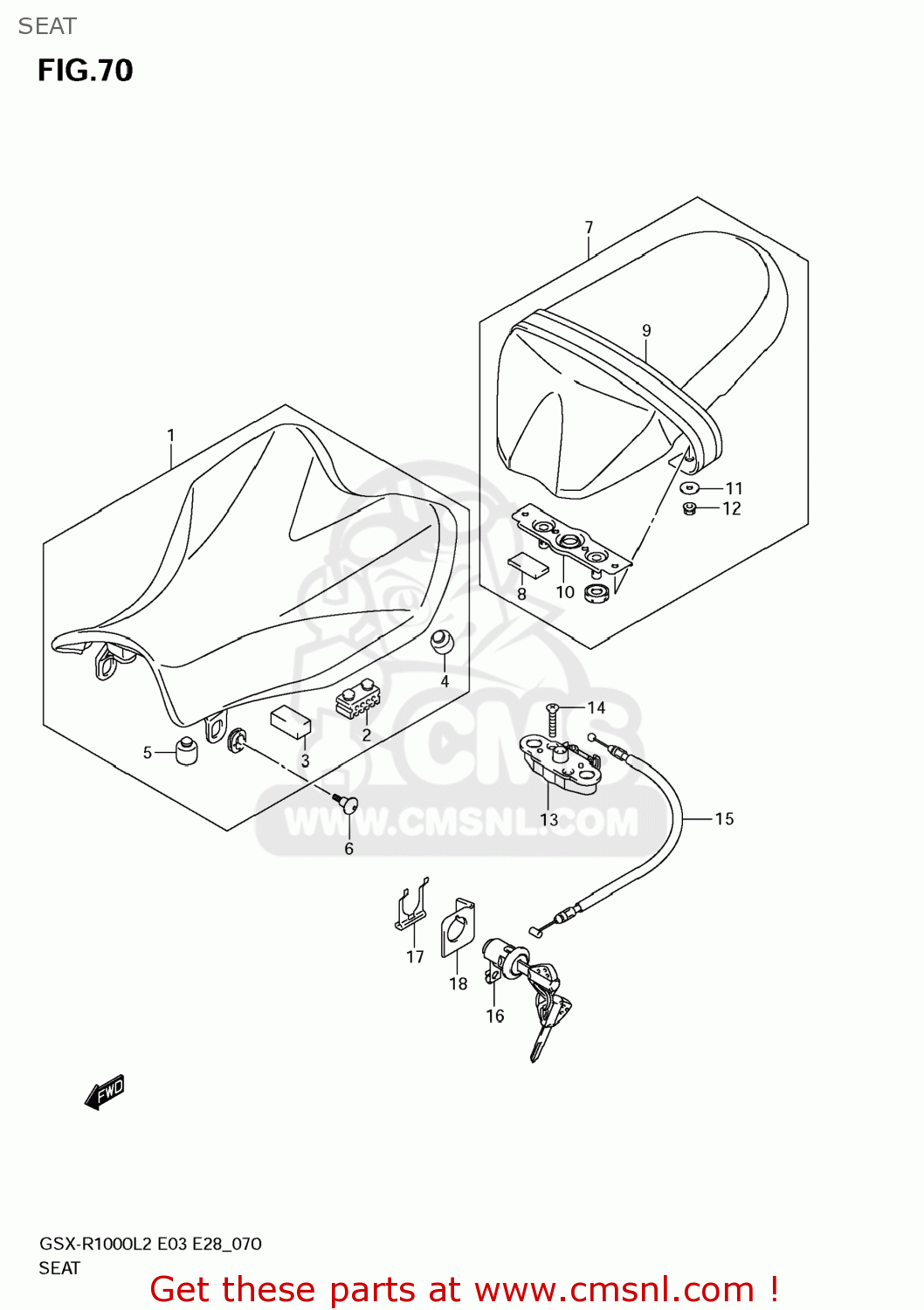

Seat diagram GSXR1000 2012 (L2) USA (E03)
SEAT GSXR1000 2012 (L2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4510047H10DW2
ref: 1
SEAT ASSY
€ 211.00
2
4514919D00
ref: 2
CUSHION,SIDE
€ 6.00
3
4514931E00
ref: 3
CUSHION,FR(20X40X15)
€ 4.00
4
0932110011
ref: 4
CUSHION
€ 3.00
5
0932110034
ref: 5
CUSHION
€ 6.50
6
0913906190
ref: 6
BOLT(6X20)
€ 4.00
7
4530047H10P3H
ref: 7
SEAT ASSY,PILLION
€ 184.00
8
4514931E00
ref: 8
CUSHION,FR(20X40X15)
€ 4.00
9
4518047H00P3H
ref: 9
BAND ASSY,SEAT(BLACK)
€ 18.00
10
4529047H00
ref: 10
STRIKER
€ 16.00
11
0916006088
ref: 11
WASHER(6.5X20X1.6)
€ 2.00
12
083161006A
ref: 12
NUT
€ 2.50
13
4522047H00
ref: 13
BRACKET,SEAT SUPPORT
€ 79.50
14
021220630A
ref: 14
SCREW
€ 1.50
15
4528047H00
ref: 15
CABLE,SEAT LOCK
€ 17.50
16
9570014810
ref: 16
LOCK SET,SEAT
€ 75.50
17
4528911F00
ref: 17
PLATE,SEAT LOCK ASSY
€ 3.00
18
4528814F00
ref: 18
GUIDE,SEAT LOCK CABLE
€ 3.00
