BATTERY
GSXR1000 2012 (L2) USA (E03)

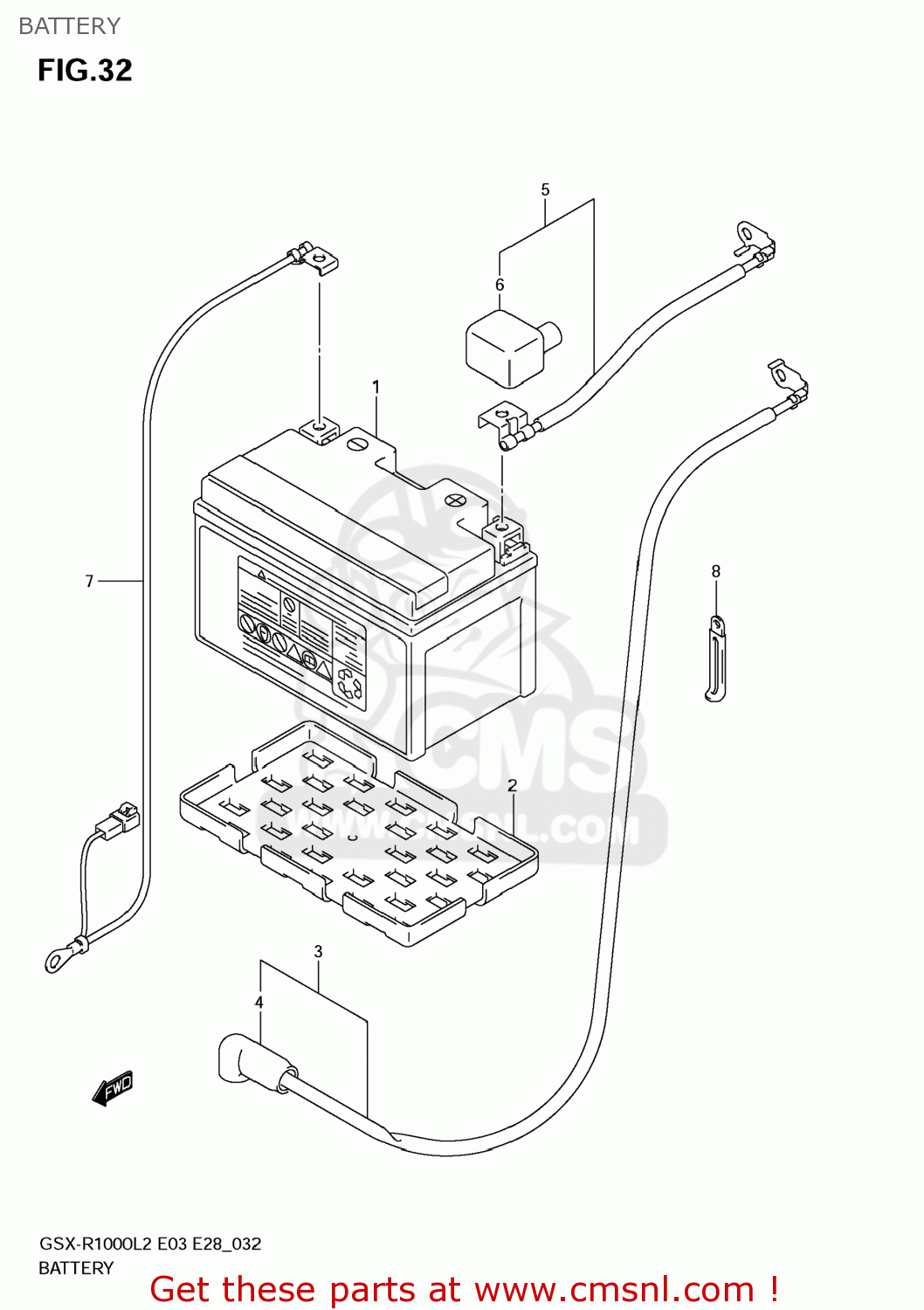

Battery diagram GSXR1000 2012 (L2) USA (E03)
BATTERY GSXR1000 2012 (L2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3361014G10
ref: 1
BATTERY ASSY,F
€ 111.00
2
3365216G00
ref: 2
PROTECTOR,BATTERY
€ 5.50
3
3381047H10
ref: 3
WIRE,STARTER MOTOR LEAD
€ 29.50
4
3661843410
ref: 4
CAP,OIL PRESSURE SWITCH
€ 2.50
5
3382047H10
ref: 5
WIRE,BATTERY PLUS LEAD
€ 19.50
6
3362416G00
ref: 6
CAP,BATTERY PLUS
€ 4.50
7
3386047H10
ref: 7
WIRE,BATTERY MINUS LEAD
€ 28.00
8
0940406429
ref: 8
CLAMP(L:45)
€ 2.50
