EVAP SYSTEM (GSX-R1000 L2 E33)
GSXR1000 2012 (L2) USA (E03)

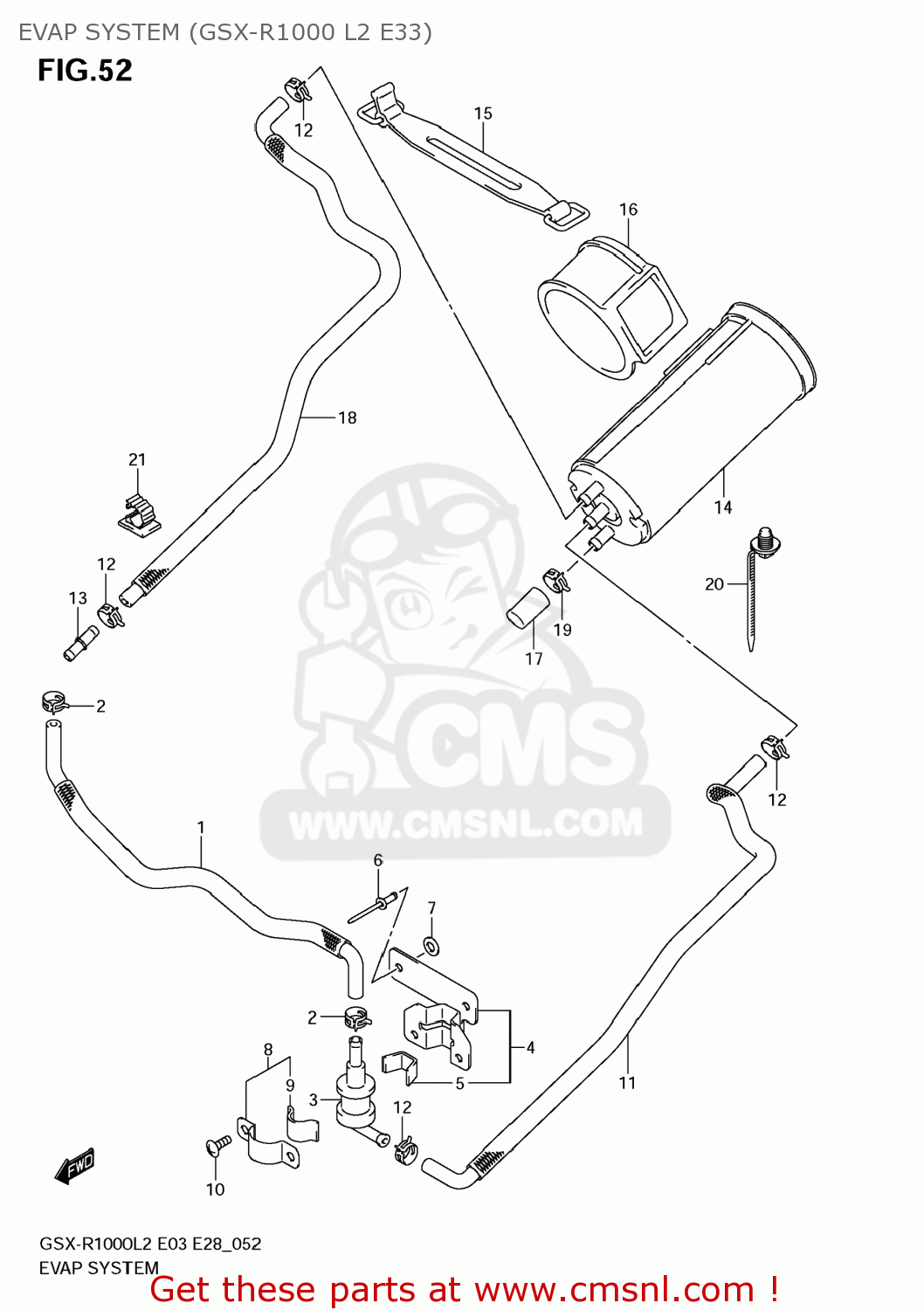

Evap system (gsx-r1000 l2 e33) diagram GSXR1000 2012 (L2) USA (E03)
EVAP SYSTEM (GSX-R1000 L2 E33) GSXR1000 2012 (L2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4443447H00
ref: 1
HOSE,TANK & BREATHER VALVE
€ 33.50
2
0940111413
ref: 2
CLIP
€ 2.50
3
4424017C00
ref: 3
VALVE,FUEL TANK BREATHER
€ 40.00
4
4489047H00
ref: 4
PLATE,BREATHER VALVE
€ 17.50
5
4489424A00
ref: 5
CUSHION
€ 1.50
6
0922904038
ref: 6
RIVET
€ 3.00
7
083220104A
ref: 7
WASHER
€ 5.00
8
4489224A00
ref: 8
PLATE,FUEL TANK BREATHER NO.2
€ 3.00
9
4489424A00
ref: 9
CUSHION
€ 1.50
10
021420408A
ref: 10
SCREW
€ 1.00
11
4443547H00
ref: 11
HOSE,CSTR & BREATHER VALVE
€ 37.50
12
0940111413
ref: 12
CLIP
€ 2.50
13
0936706009
ref: 13
JOINT
€ 2.50
14
1721015H00
ref: 14
CANISTER ASSY,CHARCOAL
€ 201.50
15
4488147H00
ref: 15
BAND,CANISTER
€ 10.50
16
4488347H00
ref: 16
CUSHION,CANISTER
€ 9.50
17
0925107005
ref: 17
CAP
€ 5.50
18
4443647H00
ref: 18
HOSE,CSTR PURGE
€ 38.50
19
0940112404
ref: 19
CLIP
€ 2.50
20
0940717403
ref: 20
CLAMP(L:154)
€ 5.50
21
0940314311
ref: 21
CLAMP
€ 4.00
