THROTTLE BODY HOSE/JOINT (GSX-R1000 L2 E03)

GSXR1000 2012 (L2) USA (E03)

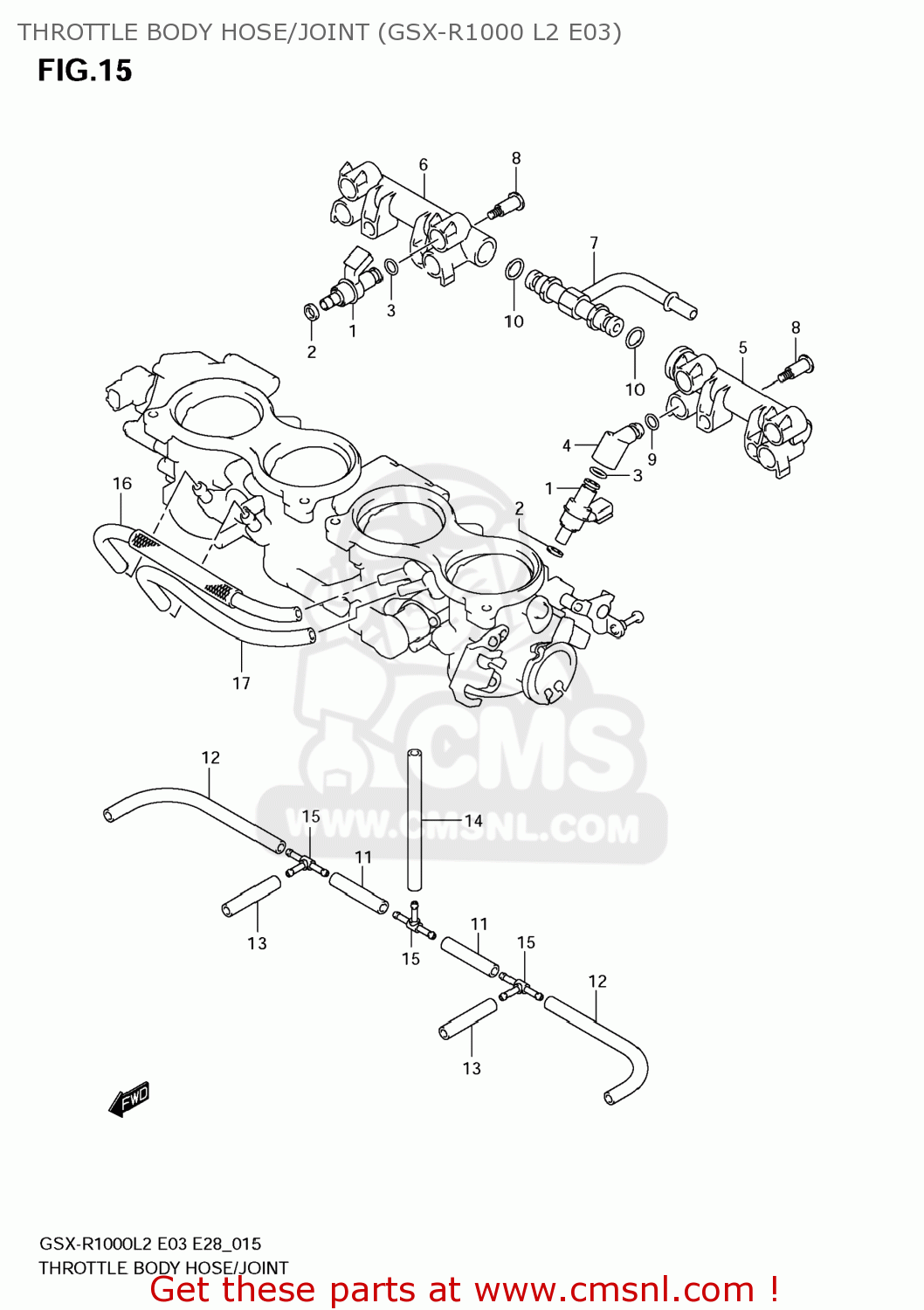

Throttle body hose/joint (gsx-r1000 l2 e03) diagram GSXR1000 2012 (L2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1571021H00
ref: 1

INJECTOR ASSY

€ 284.00

1572221H00
ref: 2

RING,SEAL

€ 9.50

1572121H00
ref: 3

O RING

€ 7.00

1347321H00
ref: 4

PIPE,FUEL

€ 13.00

1347447H00
ref: 5

PIPE,FUEL

€ 88.50

1347447H10
ref: 6

PIPE,FUEL

€ 88.50

1347315H00
ref: 7

JOINT

€ 91.50

1360135F00
ref: 8

SCREW

€ 7.00

1572124F00
ref: 9

O RING

€ 7.50

1572110G00
ref: 10

O RING

€ 7.00

1368447H20
ref: 11

HOSE

€ 5.50

1368547H20
ref: 12

HOSE

€ 4.50

1368647H20
ref: 13

HOSE

€ 6.00

1368747H20
ref: 14

HOSE

€ 6.50

1347124F30
ref: 15

JOINT

€ 11.50

1368021H10
ref: 16

TUBE

€ 15.00

1369821H00
ref: 17

TUBE

€ 7.00
