HANDLEBAR
GSXR1000 2012 (L2) USA (E03)

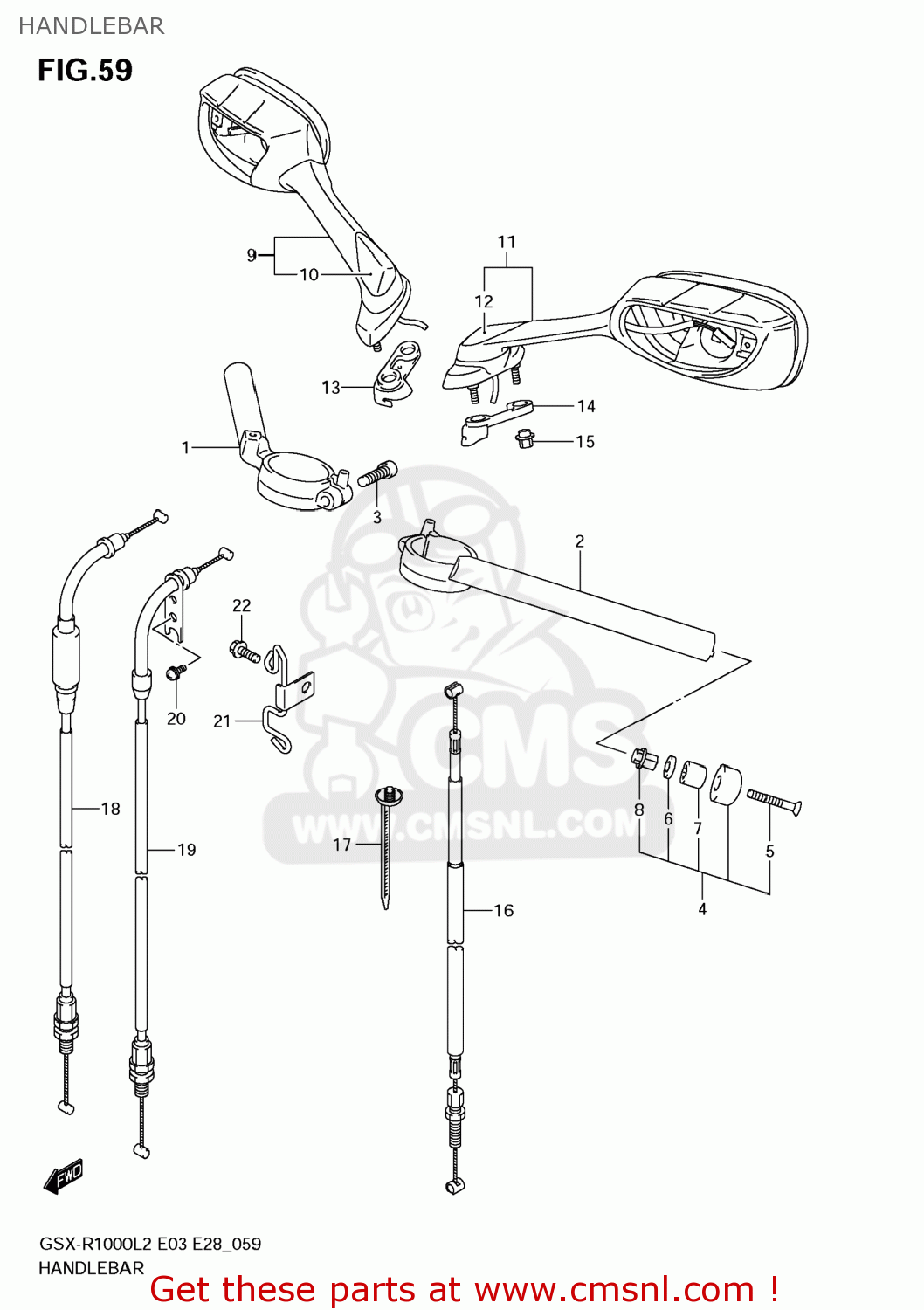

Handlebar diagram GSXR1000 2012 (L2) USA (E03)
HANDLEBAR GSXR1000 2012 (L2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5611147H10
ref: 1
HANDLEBAR,R
€ 73.00
2
5615147H11
ref: 2
HANDLEBAR,L
€ 73.00
3
0910608185
ref: 3
BOLT(8X32)
€ 2.00
4
5620041822
ref: 4
BALANCER SET,HANDLEBAR
€ 27.50
5
021220640B
ref: 5
SCREW
€ 2.50
6
0916006131
ref: 6
WASHER(6.5X16X4)
€ 2.50
7
5627210G00
ref: 7
EXPANDER,HANDLE BALANCER
€ 3.00
8
5627310G10
ref: 8
NUT,HANDLE BALANCER
€ 6.50
9
5650047H01
ref: 9
MIRROR ASSY,RR VIEW,R
€ 91.00
10
5651547H01
ref: 10
CAP,R
€ 6.50
11
5660047H01
ref: 11
MIRROR ASSY,RR VIEW,L
€ 91.00
12
5661547H01
ref: 12
CAP,L
€ 6.50
13
9457547H00
ref: 13
CUSHION,RR VIEW MIRRROR,R
€ 12.50
14
9457647H00
ref: 14
CUSHION,RR VIEW MIRRROR,L
€ 13.00
15
5661941G01
ref: 15
NUT,RR VIEW MIRROR
€ 7.00
16
5820047H20
ref: 16
CABLE ASSY,CLUTCH
€ 33.00
17
0940717403
ref: 17
CLAMP(L:154)
€ 5.50
18
5830047H00
ref: 18
CABLE ASSY,THROTTLE NO.1
€ 43.00
19
5830047H10
ref: 19
CABLE ASSY,THROTTLE NO.2
€ 41.00
20
0912505042
ref: 20
SCREW(5X10)
€ 2.50
21
5862047H00
ref: 21
GUIDE,CABLE
€ 15.50
22
015470612A
ref: 22
BOLT
€ 2.00
