REAR CALIPER
GSXR1000 2012 (L2) USA (E03)

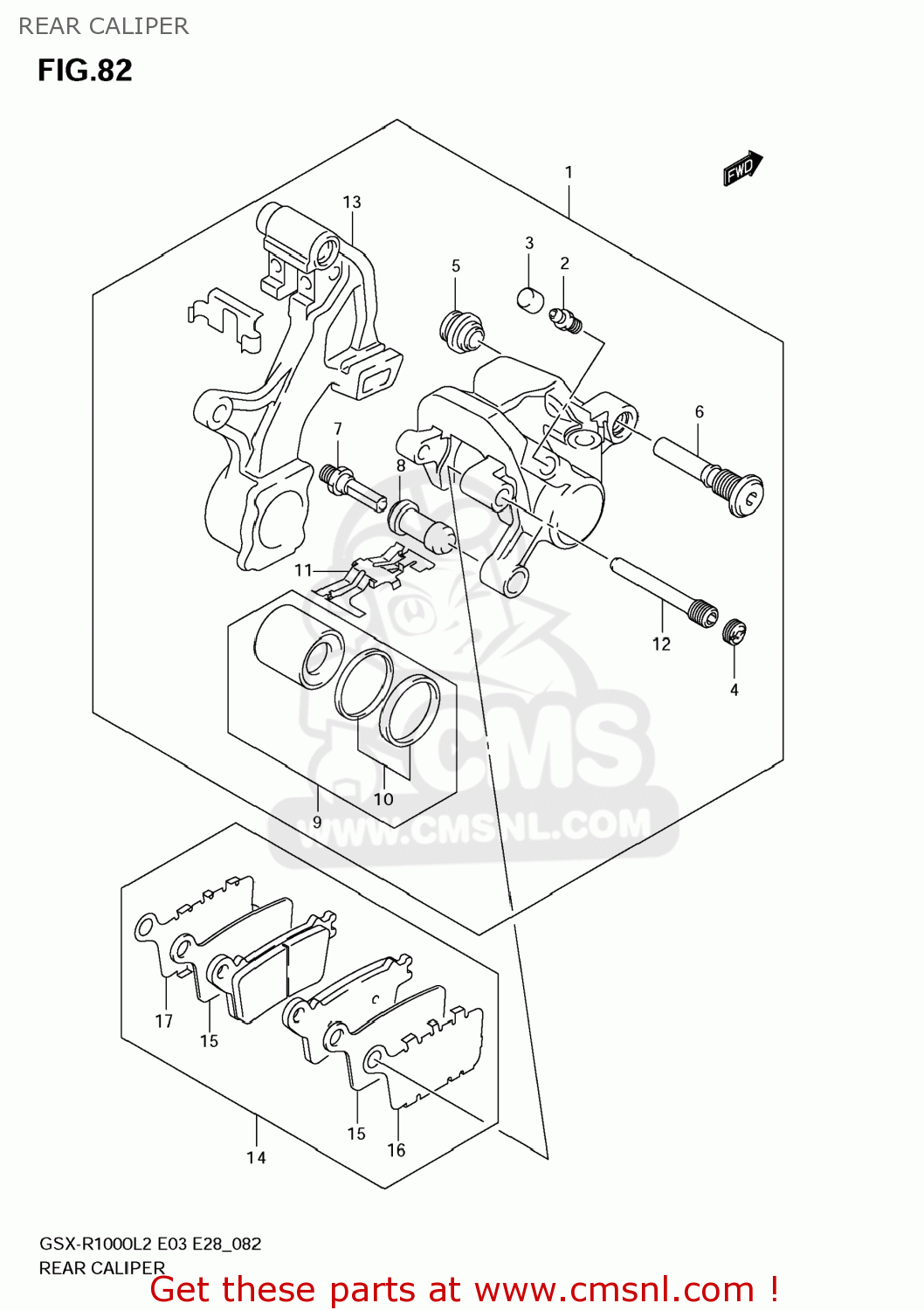

Rear caliper diagram GSXR1000 2012 (L2) USA (E03)
REAR CALIPER GSXR1000 2012 (L2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6910047H00999
ref: 1
CALIPER ASSY,RR
€ 411.00
2
5912101A00
ref: 2
BLEEDER
€ 8.50
3
5912246H00
ref: 3
CAP,BLEEDER
€ 4.50
4
5914621E10
ref: 4
PLUG,PIN
€ 6.50
5
5930314500
ref: 5
BOOT
€ 5.50
6
5930536E00
ref: 6
PIN,BOLT
€ 12.50
7
5938214500
ref: 7
PIN,BOLT
€ 7.50
8
5938613A00
ref: 8
BOOT
€ 6.50
9
6910047810
ref: 9
PISTON SET
€ 56.50
10
6910013810
ref: 10
SEAL SET,PISTON
€ 12.00
11
6911547H00
ref: 11
SPRING,PAD
€ 8.00
12
6914140F00
ref: 12
PIN,PAD
€ 17.50
13
6915047H00
ref: 13
BRACKET,RR
€ 92.50
14
6910047820
ref: 14
PAD & SHIM SET (NAS)
€ 60.50
15
6913247H00
ref: 15
INSULATOR
€ 13.50
16
6913347H00
ref: 16
RETAINER,PAD
€ 8.50
17
6913447H00
ref: 17
RETAINER,PAD
€ 8.50
