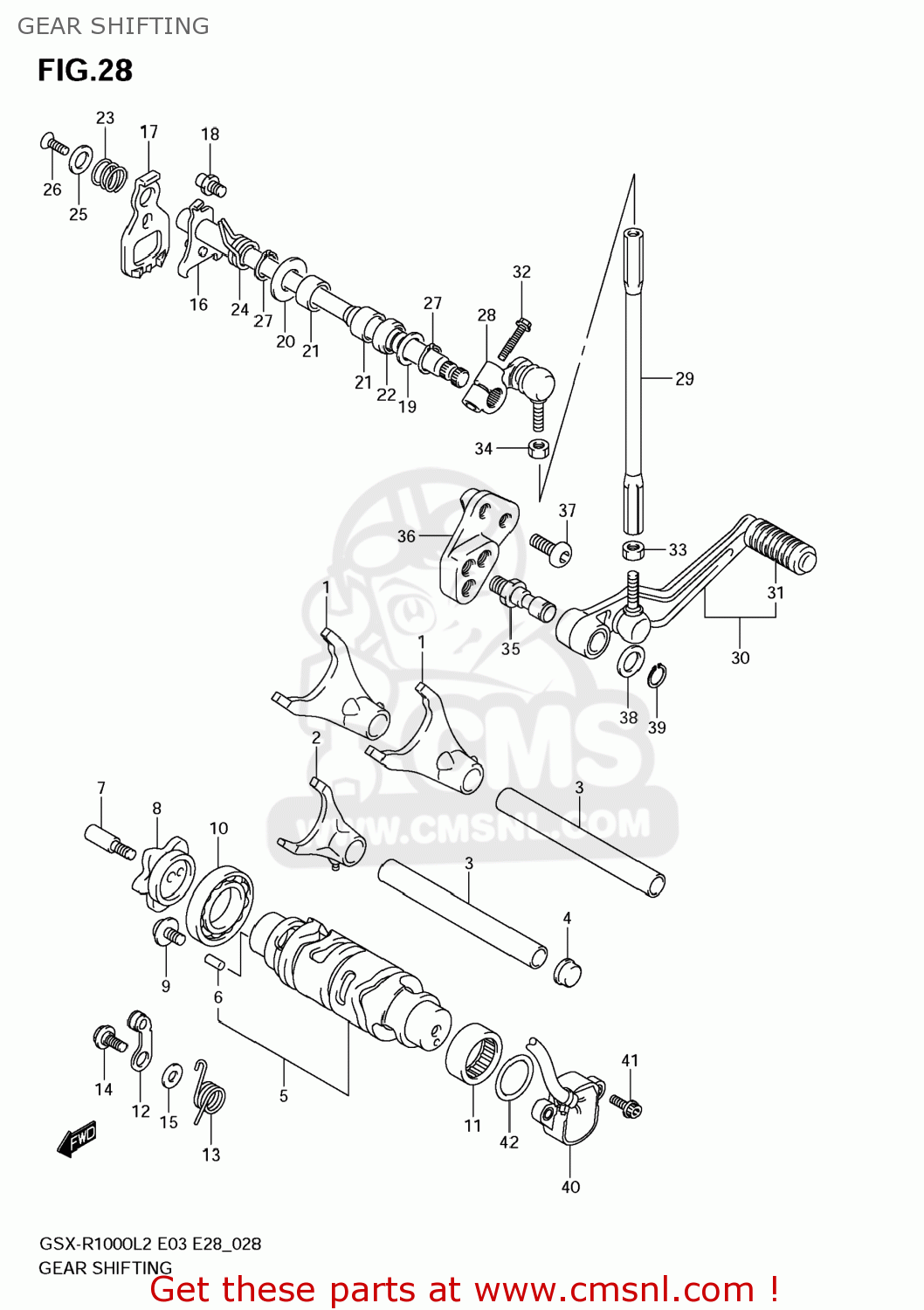

GEAR SHIFTING

ref

part #

description

quantity

1

2521101H10
ref: 1

FORK,GEAR SHIFT NO.1

€ 70.00

2

2523101H01
ref: 2

FORK,GEAR SHIFT NO.3

€ 74.00

3

2541127A00
ref: 3

SHAFT,GEAR SHIFT FORK(L:128)

€ 23.50

4

2571237H00
ref: 4

PLUG,GEAR SHIFT FORK SHAFT

€ 4.50

5

2531047H00
ref: 5

CAM,GEAR SHIFT

€ 178.50

6

0422104089
ref: 6

PIN

€ 1.50

7

2531242F01
ref: 7

BOLT,GEAR SHIFT CAM PLATE

€ 5.50

8

2538113E30
ref: 8

PLATE,GEAR SHIFT CAM

€ 30.00

9

0913606147
ref: 9

SCREW(6X12)

€ 2.00

10

0926225006
ref: 10

BEARING(25X47X8)

€ 24.00

11

0926325018
ref: 11

BEARING(25X32X12)

€ 17.50

12

2535006G00
ref: 12

STOPPER,SHIFT CAM

€ 19.00

13

2535501H00
ref: 13

SPRING,GEAR SHIFT CAM STOPPER

€ 3.00

14

0911106041
ref: 14

BOLT(6X14.3)

€ 3.00

15

0821106141
ref: 15

WASHER

€ 2.50

16

2551047H00
ref: 16

SHAFT,GEAR SHIFT

€ 98.50

17

2551206G10
ref: 17

PLATE,GEAR SHIFT CAM DRIVE

€ 20.00

18

2567101011
ref: 18

STOPPER,GEAR SHIFT ARM

€ 3.00

19

0916014016
ref: 19

WASHER(14X29X0.8)

€ 1.50

20

0918114195
ref: 20

SHIM(14X24X1)

€ 1.50

21

0926314027
ref: 21

BEARING(14X20X12)

€ 11.00

22

0928314005
ref: 22

SEAL,OIL(14X22X7.3)

€ 6.50

23

2551801H00
ref: 23

SPRING,GEAR SHIFT PLATE RETURN

€ 2.00

24

0944420001
ref: 24

SPRING

€ 5.00

25

2551901H00
ref: 25

WASHER,GEAR SHIFT SHAFT END

€ 3.00

26

0912606014
ref: 26

SCREW(6X16)

€ 2.00

27

083313114A
ref: 27

CIRCLIP

€ 2.00

28

2552001H00
ref: 28

ARM,GEAR SHIFT LINK

€ 62.50

29

2552501H00
ref: 29

ROD,GEAR SHIFT LINK

€ 32.00

30

2560047H00
ref: 30

LEVER ASSY,GEAR SHIFT

€ 106.50

31

2565220C00
ref: 31

RUBBER,GEAR SHIFT PEDAL

€ 8.00

32

015470625A
ref: 32

BOLT

€ 2.50

33

0914006025
ref: 33

NUT

€ 2.00

34

0914006020
ref: 34

NUT

€ 2.50

35

2561703F10
ref: 35

SHAFT,GEAR SHIFT LEVER

€ 10.50

36

2568147H01
ref: 36

BRACKET,GEAR SHIFT LEVER

€ 59.50

37

0910608167
ref: 37

BOLT(8X20)

€ 3.50

38

0916012011
ref: 38

WASHER(12.5X20X1)

€ 1.50

39

083313112A
ref: 39

CIRCLIP

€ 2.00

40

3773014J00
ref: 40

SENSOR ASSY,GEAR POSITION

€ 87.50

41

0910605023
ref: 41

BOLT(5X16)

€ 2.50

42

0928026005
ref: 42

O RING(D:2.4,ID:26.2)

€ 2.50

all assemblies
