OIL COOLER
GSXR1000 2012 (L2) USA (E03)

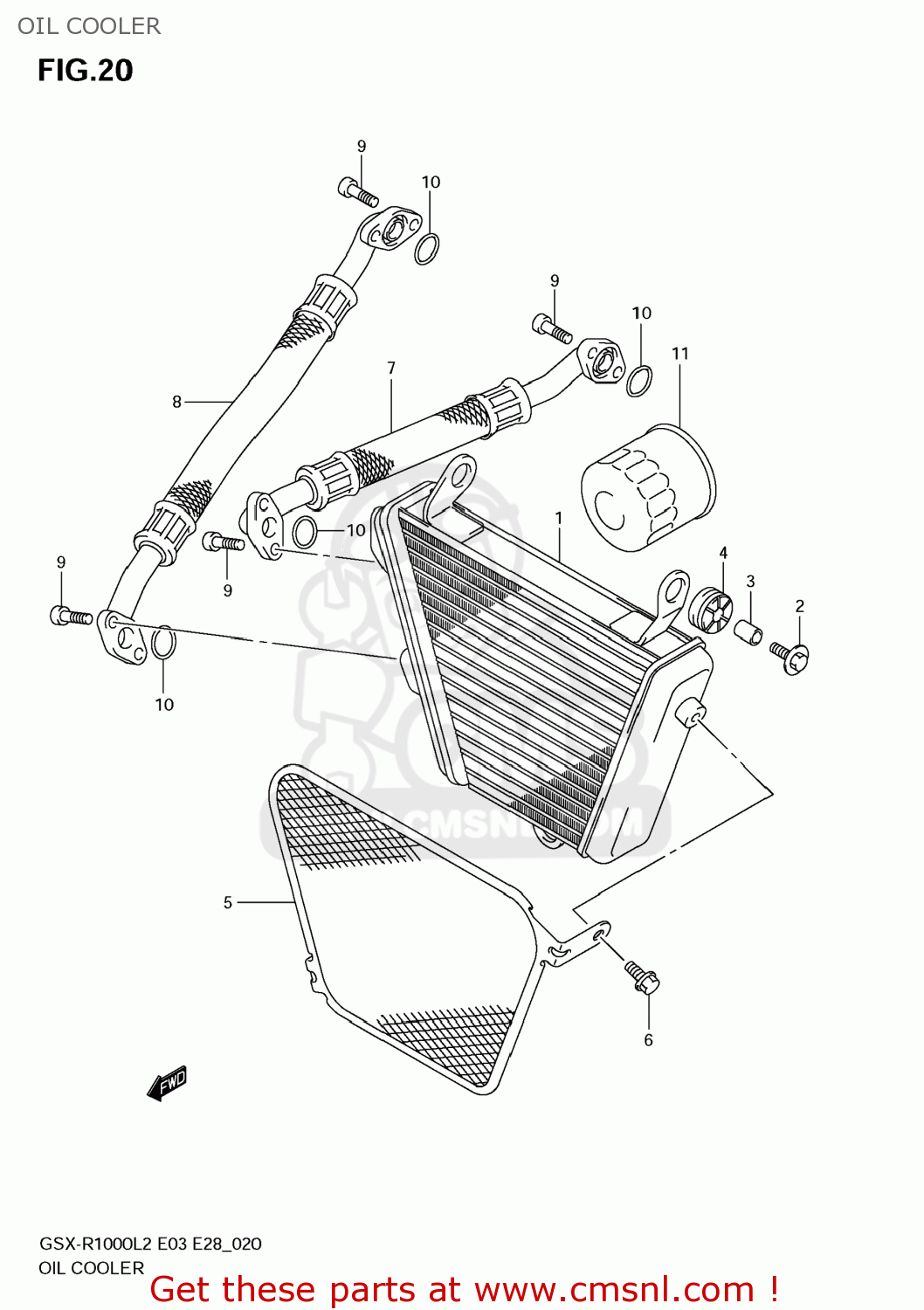

Oil cooler diagram GSXR1000 2012 (L2) USA (E03)
OIL COOLER GSXR1000 2012 (L2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1660047H10
ref: 1
COOLER ASSY,OIL
€ 1,704.50
2
0911806122
ref: 2
BOLT(6X25)
€ 2.50
3
0918006290
ref: 3
SPACER(6.5X10X12)
€ 2.50
4
0932010051
ref: 4
CUSHION
€ 3.50
5
1665047H10
ref: 5
GUARD,OIL COOLER
€ 76.00
6
015500610A
ref: 6
BOLT
€ 2.00
7
1646047H00
ref: 7
HOSE,OIL COOLER INLET
€ 156.50
8
1647047H00
ref: 8
HOSE,OIL COOLER OUTLETLET
€ 154.50
9
0910606073
ref: 9
BOLT(6X16)
€ 2.50
10
0928015015
ref: 10
O RING(D:2.4,ID:16)
€ 5.00
11
1651007J00
ref: 11
FILTER ASSY,ENGINE OIL
€ 12.50
