HEADLAMP

GSXR1000 2012 (L2) USA (E03)

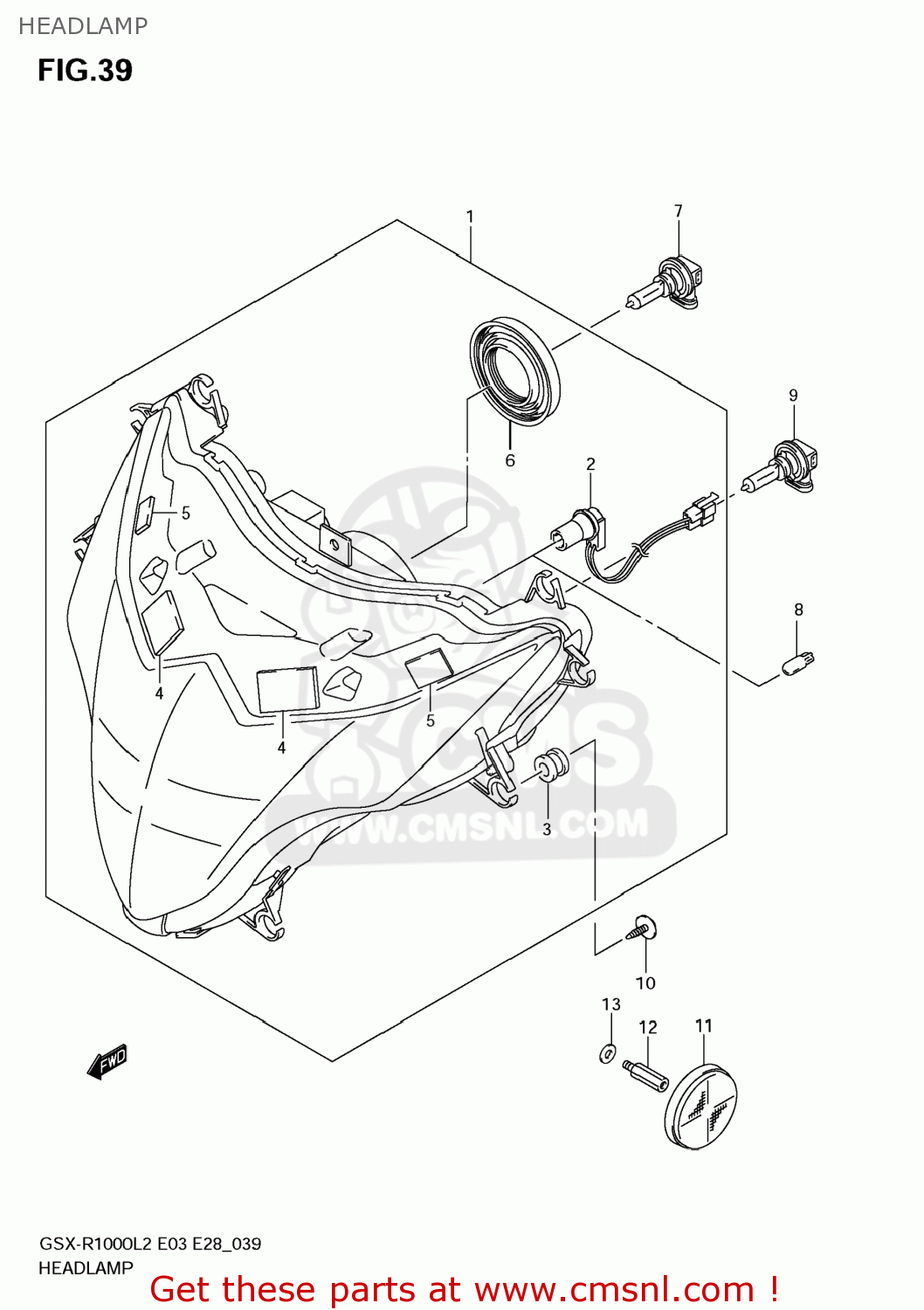

Headlamp diagram GSXR1000 2012 (L2) USA (E03)

prices are in EUR

ref

part #

description

quantity

3510047H31999
ref: 1

HEADLAMP ASSY

€ 423.50

3611829G51
ref: 2

CORD ASSY

€ 15.00

0932009039
ref: 3

CUSHION

€ 6.00

4457202F01
ref: 4

FASTENER

€ 8.50

4457237H00
ref: 5

FASTENER,COWLING

€ 5.50

3517976F10
ref: 6

COVER,SOCKET

€ 6.00

0947112210
ref: 7

BULB(12V55W,H11)

€ 48.50

0947112216
ref: 8

BULB(12V5W)

€ 5.00

0947112222
ref: 9

BULB(12V65W,H9)

€ 35.50

0913605062
ref: 10

SCREW(5X15)

€ 2.50

3595014A11
ref: 11

REFLEX REFLECTOR ASSY,FR SIDE

€ 11.00

0911906109
ref: 12

BOLT

€ 8.00

0916008043
ref: 13

WASHER(8.5X18X1)

€ 1.50
