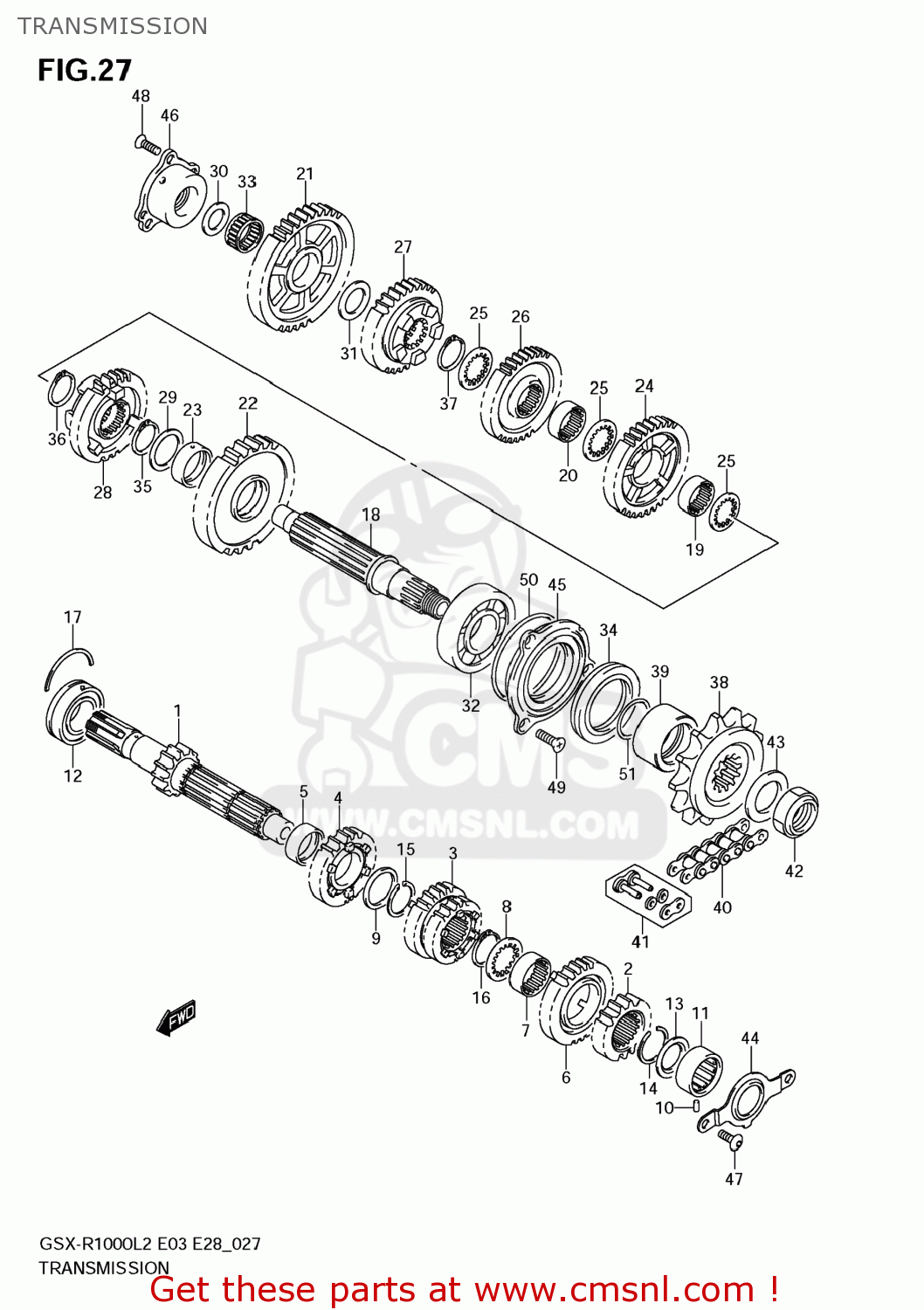

TRANSMISSION

ref

part #

description

quantity

1

2412047H10
ref: 1

SHAFT,COUNTER

€ 318.50

2

2422140F30
ref: 2

GEAR,2ND DRIVE

€ 70.50

3

2423147H00
ref: 3

GEAR,3RD & 4TH DRIVE

€ 167.00

3

2423147H00
ref: 3

GEAR,3RD & 4TH DRIVE

€ 167.00

4

2425147H00
ref: 4

GEAR,5TH DRIVE

€ 133.50

5

2425224F10
ref: 5

BUSH,5TH DRIVE GEAR

€ 19.00

6

2426147H00
ref: 6

GEAR,6TH DRIVE

€ 133.50

7

2426224F20
ref: 7

BUSH,6TH DRIVE GEAR

€ 19.00

8

0916727001
ref: 8

WASHER,LOCK

€ 3.50

9

0916027008
ref: 9

WASHER(27X36X1)

€ 3.00

10

0422107129
ref: 10

PIN

€ 1.50

11

0926320103
ref: 11

BEARING(20X34X16)

€ 46.50

12

0926725013
ref: 12

BEARING(25X52X20.6)

€ 67.00

13

0928520006
ref: 13

SEAL,OIL(20X31.2X2.7)

€ 7.00

14

0938027004
ref: 14

CIRCLIP

€ 3.50

15

0938027006
ref: 15

CIRCLIP

€ 2.50

16

0938027006
ref: 16

CIRCLIP

€ 2.50

17

0939058001
ref: 17

C RING

€ 2.00

18

2413147H00
ref: 18

SHAFT,DRIVE

€ 266.50

19

2433224F20
ref: 19

BUSH,3RD DRIVEN GEAR

€ 19.00

20

2433224F20
ref: 20

BUSH,3RD DRIVEN GEAR

€ 19.00

21

2431147H00
ref: 21

GEAR,1ST DRIVEN

€ 101.00

22

2432147H00
ref: 22

GEAR,2ND DRIVEN

€ 135.00

23

2432224F20
ref: 23

BUSH,2ND DRIVEN GEAR

€ 14.50

24

2433147H10
ref: 24

GEAR,3RD DRIVEN

€ 114.50

25

2433347H00
ref: 25

WASHER,3RD & 4TH DRIVEN GEAR

€ 4.00

26

2434147H10
ref: 26

GEAR,4TH DRIVEN

€ 87.50

27

2435147H00
ref: 27

GEAR,5TH DRIVEN

€ 102.00

28

2436147H00
ref: 28

GEAR,6TH DRIVEN

€ 87.50

29

0918130167
ref: 29

SHIM(30X40X1)

€ 2.50

30

0918122223
ref: 30

SHIM(22X34X1)

€ 3.00

31

0918124005
ref: 31

SHIM(24X34X1)

€ 3.50

32

0926730014
ref: 32

BEARING(30X62X23.8)

€ 94.50

33

0926324030
ref: 33

BEARING(24X28X13)

€ 11.50

34

0928338027
ref: 34

SEAL,OIL(38X56X7)

€ 32.00

35

0938030009
ref: 35

CIRCLIP

€ 3.50

36

0938030009
ref: 36

CIRCLIP

€ 3.50

37

0938030009
ref: 37

CIRCLIP

€ 3.50

38

2751015H10
ref: 38

SPROCKET,ENGINE

€ 69.00

39

2753147H00
ref: 39

SPACER,ENGINE SPROCKET

€ 23.50

40

2760040F20114
ref: 40

CHAIN,DRIVE

€ 224.00

41

2762040F20
ref: 41

JOINT SET,DRIVE CHAIN

€ 12.00

42

0915922008
ref: 42

NUT

€ 25.00

43

0918127016
ref: 43

SHIM(27X42X1.5)

€ 4.00

44

2474101H00
ref: 44

RETAINER,CL PUSH ROD OIL SEAL

€ 5.00

45

2475147H00
ref: 45

RETAINER,DRIVE SHAFT BEARING,L

€ 72.50

46

2477101820
ref: 46

HOUSING,DRIVE SHAFT SET

€ 116.00

47

0913906153
ref: 47

SCREW(6X13)

€ 2.00

48

0913906159
ref: 48

SCREW(6X20)

€ 2.50

49

0913906159
ref: 49

SCREW(6X20)

€ 2.50

50

0928062004
ref: 50

O RING(D:1.9,ID:61.5)

€ 14.00

51

0928026005
ref: 51

O RING(D:2.4,ID:26.2)

€ 2.50
