RADIATOR
GSXR1000 2012 (L2) USA (E03)

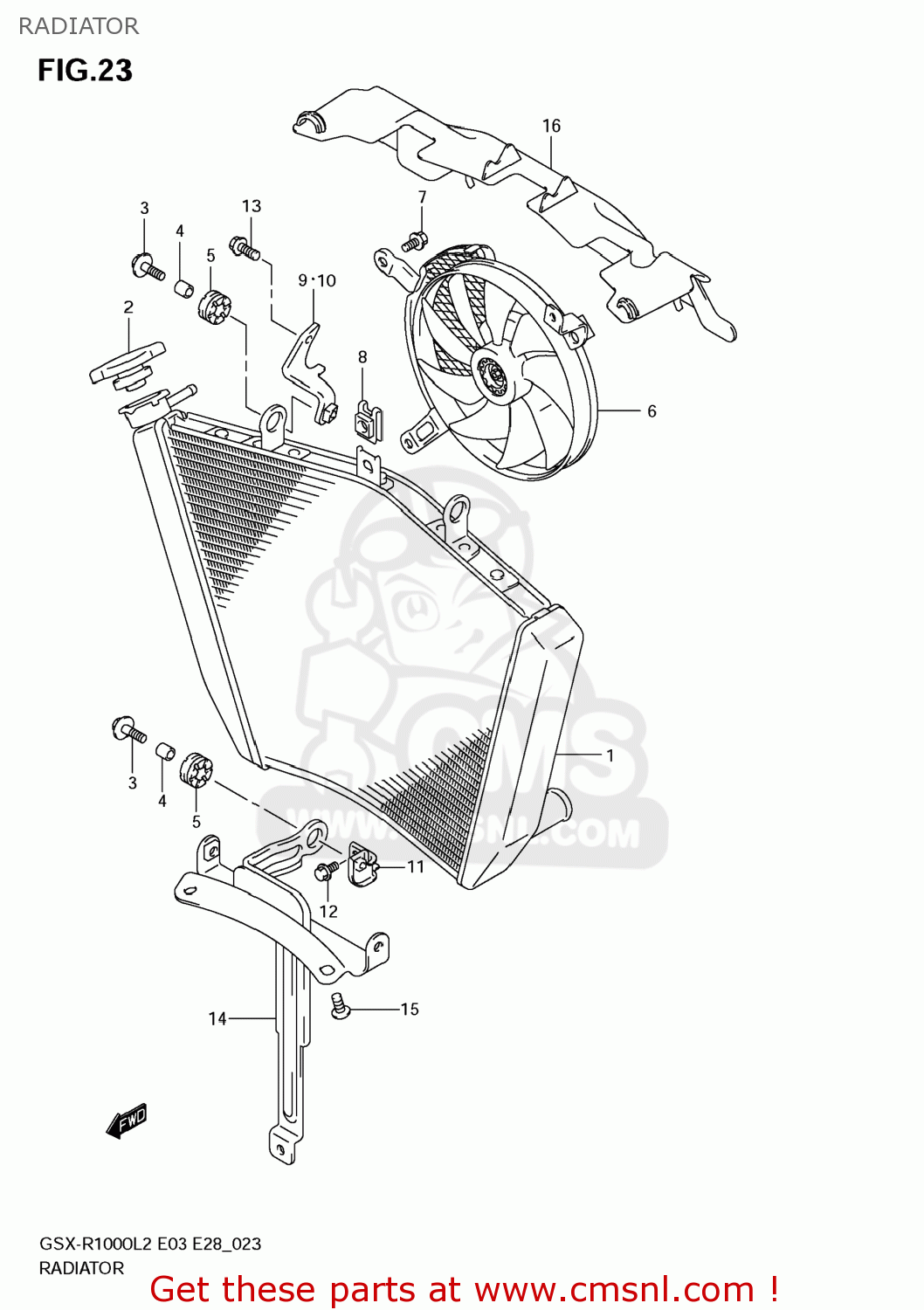

Radiator diagram GSXR1000 2012 (L2) USA (E03)
RADIATOR GSXR1000 2012 (L2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1771047H10
ref: 1
RADIATOR ASSY,WATER
€ 911.50
2
1773008J00
ref: 2
CAP,RADIATOR
€ 40.00
3
0911806097
ref: 3
BOLT(6X25)
€ 2.50
4
0918006290
ref: 4
SPACER(6.5X10X12)
€ 2.50
5
0932010051
ref: 5
CUSHION
€ 3.50
6
1780047H00
ref: 6
FAN ASSY,RADIATOR
€ 745.50
7
1771108J00
ref: 7
BOLT,FAN ASSY
€ 3.50
8
1771240F00
ref: 8
NUT,FAN ASSY
€ 3.50
9
1774147H00
ref: 9
BRACKET,RADIATOR,R
€ 14.50
10
1774247H00
ref: 10
BRACKET,RADIATOR,L
€ 14.50
11
1775047H10
ref: 11
BRACKET,RDTR & OIL COOLER
€ 6.00
12
015500612A
ref: 12
BOLT
€ 2.50
13
015500616A
ref: 13
BOLT
€ 2.50
14
1779047H00
ref: 14
BRACKET,RADIATOR SUPPORT
€ 32.00
15
0910306307
ref: 15
BOLT(6X10)
€ 2.50
16
1777147H00
ref: 16
SHIELD,RADIATOR HEAT
€ 35.00
