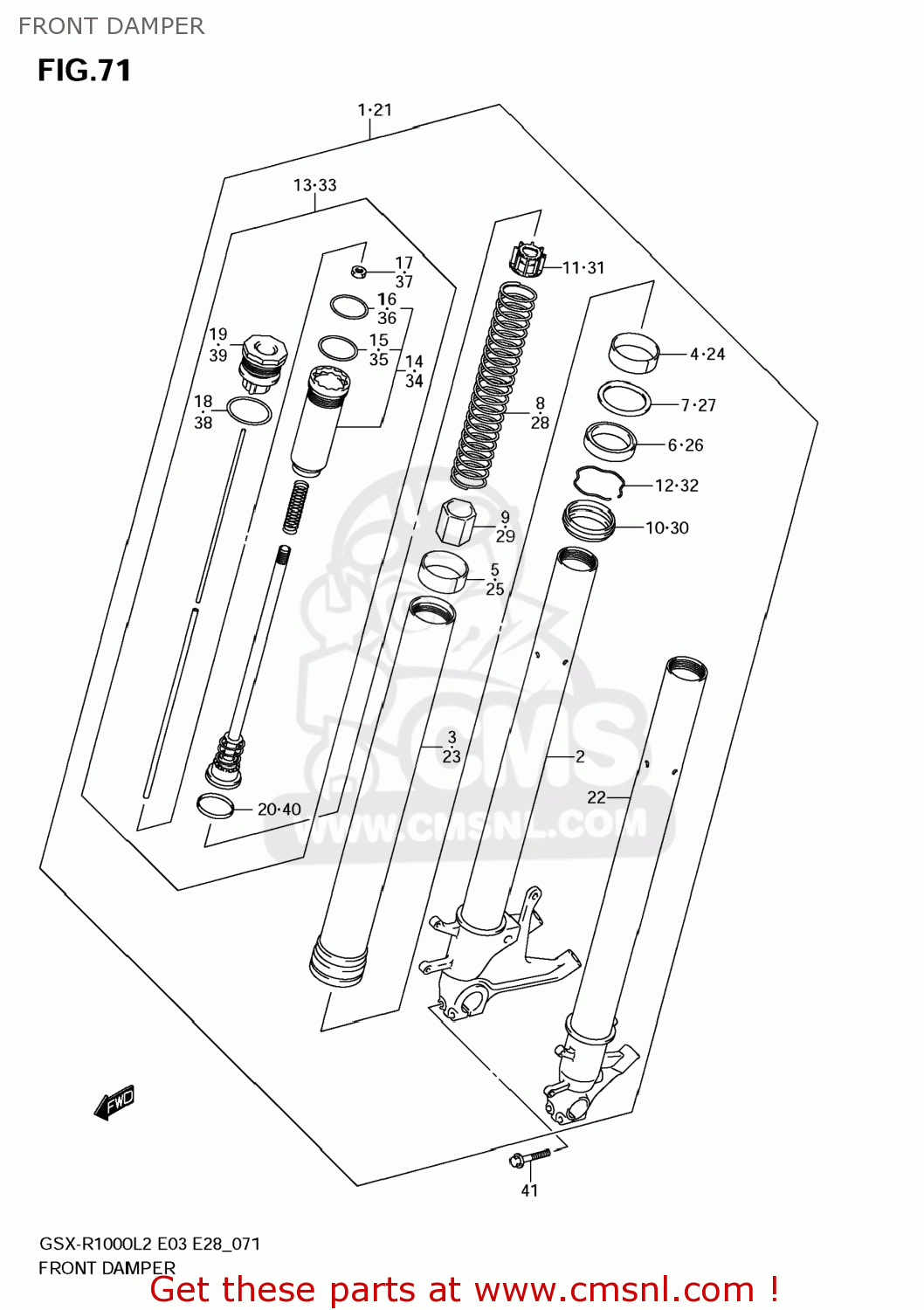

FRONT DAMPER

ref

part #

description

quantity

1

5110347H20
ref: 1

DAMPER ASSY,FR FORK,R

€ 2,049.00

2

5111047H20
ref: 2

TUBE,INNER,R

€ 666.00

3

5113147H20
ref: 3

TUBE,OUTER

€ 427.00

4

5115247H00
ref: 4

BUSH,GUIDE

€ 12.00

5

5115247H10
ref: 5

BUSH,SLIDE

€ 12.00

6

5115347H00
ref: 6

SEAL,OIL

€ 24.50

7

5116829G00
ref: 7

SPACER,SEAL

€ 5.00

8

5117147H20
ref: 8

SPRING

€ 74.00

9

5117647H20
ref: 9

COLLAR,SPRING

€ 44.00

10

5117327G00
ref: 10

SEAL,DUST

€ 22.00

11

5117547H00
ref: 11

COLLAR,SPRING

€ 11.00

12

5155638B00
ref: 12

CIRCLIP,FORK OIL SEAL

€ 4.50

13

5211047H20
ref: 13

ROD,PISTON

€ 661.00

14

5117447H20
ref: 14

CASE,ROD GUIDE

€ 93.50

15

5111847H00
ref: 15

RING,PISTON

€ 16.00

16

5118747H10
ref: 16

O RING

€ 5.50

17

5182729G00
ref: 17

NUT

€ 6.50

18

5118747H00
ref: 18

O RING

€ 5.50

19

5118947H20
ref: 19

BOLT

€ 115.50

20

5111847H20
ref: 20

RING,PISTON

€ 5.50

21

5110447H20
ref: 21

DAMPER ASSY,FR FORK,L

€ 2,096.00

22

5112047H20
ref: 22

TUBE,INNER,L

€ 684.00

23

5113147H20
ref: 23

TUBE,OUTER

€ 427.00

24

5115247H00
ref: 24

BUSH,GUIDE

€ 12.00

25

5115247H10
ref: 25

BUSH,SLIDE

€ 12.00

26

5115347H00
ref: 26

SEAL,OIL

€ 24.50

27

5116829G00
ref: 27

SPACER,SEAL

€ 5.00

28

5117147H20
ref: 28

SPRING

€ 74.00

29

5117647H20
ref: 29

COLLAR,SPRING

€ 44.00

30

5117327G00
ref: 30

SEAL,DUST

€ 22.00

31

5117547H00
ref: 31

COLLAR,SPRING

€ 11.00

32

5155638B00
ref: 32

CIRCLIP,FORK OIL SEAL

€ 4.50

33

5211047H20
ref: 33

ROD,PISTON

€ 661.00

34

5117447H20
ref: 34

CASE,ROD GUIDE

€ 93.50

35

5111847H00
ref: 35

RING,PISTON

€ 16.00

36

5118747H10
ref: 36

O RING

€ 5.50

37

5182729G00
ref: 37

NUT

€ 6.50

38

5118747H00
ref: 38

O RING

€ 5.50

39

5118947H20
ref: 39

BOLT

€ 115.50

40

5111847H20
ref: 40

RING,PISTON

€ 5.50

41

5132136F00
ref: 41

BOLT

€ 4.00

all assemblies
