BATTERY

GSXR1100 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

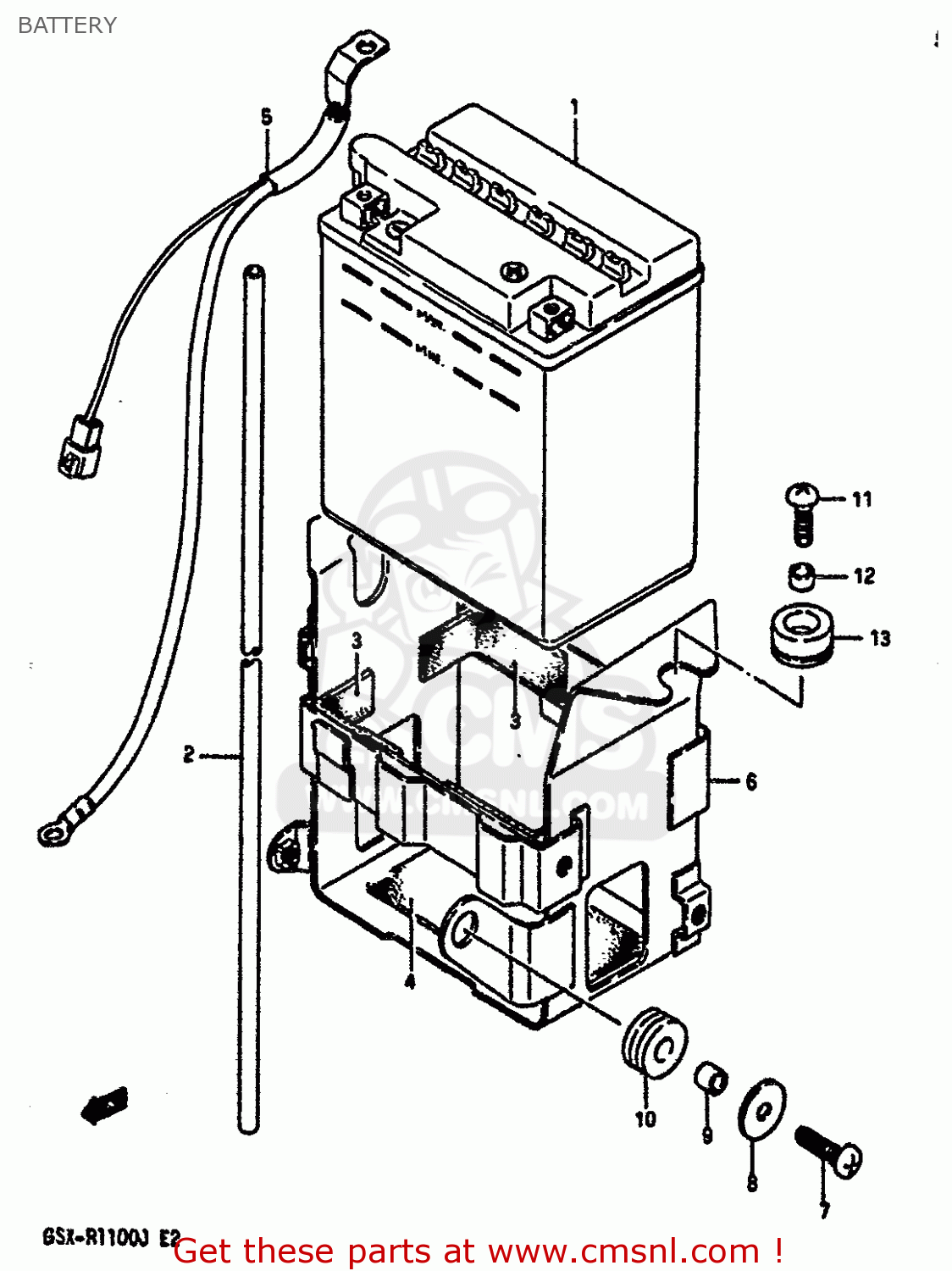

Battery diagram GSXR1100 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

3361049210
ref: 1

BATTERY ASSY (12V)

€ 110.00

3368031003
ref: 2

HOSE,BATTERY EXHAUST

€ 4.50

3365229100
ref: 3

PROTECTOR,20X9

€ 5.00

3365137000
ref: 4
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

3386006B10
ref: 5

WIRE,BATTERY MINUS LEAD

€ 17.00

6-1

4154006B00
ref: 6-1
MODEL G/H

HOLDER,BATTERY

€ 48.50

6-2

4154006B10
ref: 6-2
MODEL J

HOLDER COMP,BATTERY

€ 48.50

0214206167
ref: 7

SCREW

€ 2.00

0916006007
ref: 8

WASHER

€ 2.00

0918006152
ref: 9

SPACER

€ 3.00

0932009021
ref: 10

CUSHION

€ 4.00

0214206207
ref: 11

SCREW

€ 2.00

0918006073
ref: 12

SPACER

€ 2.00

4154934A00
ref: 13

CUSHION,HOLDER BATTERY UPR

€ 4.00
