OIL PUMP

GSXR1100 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

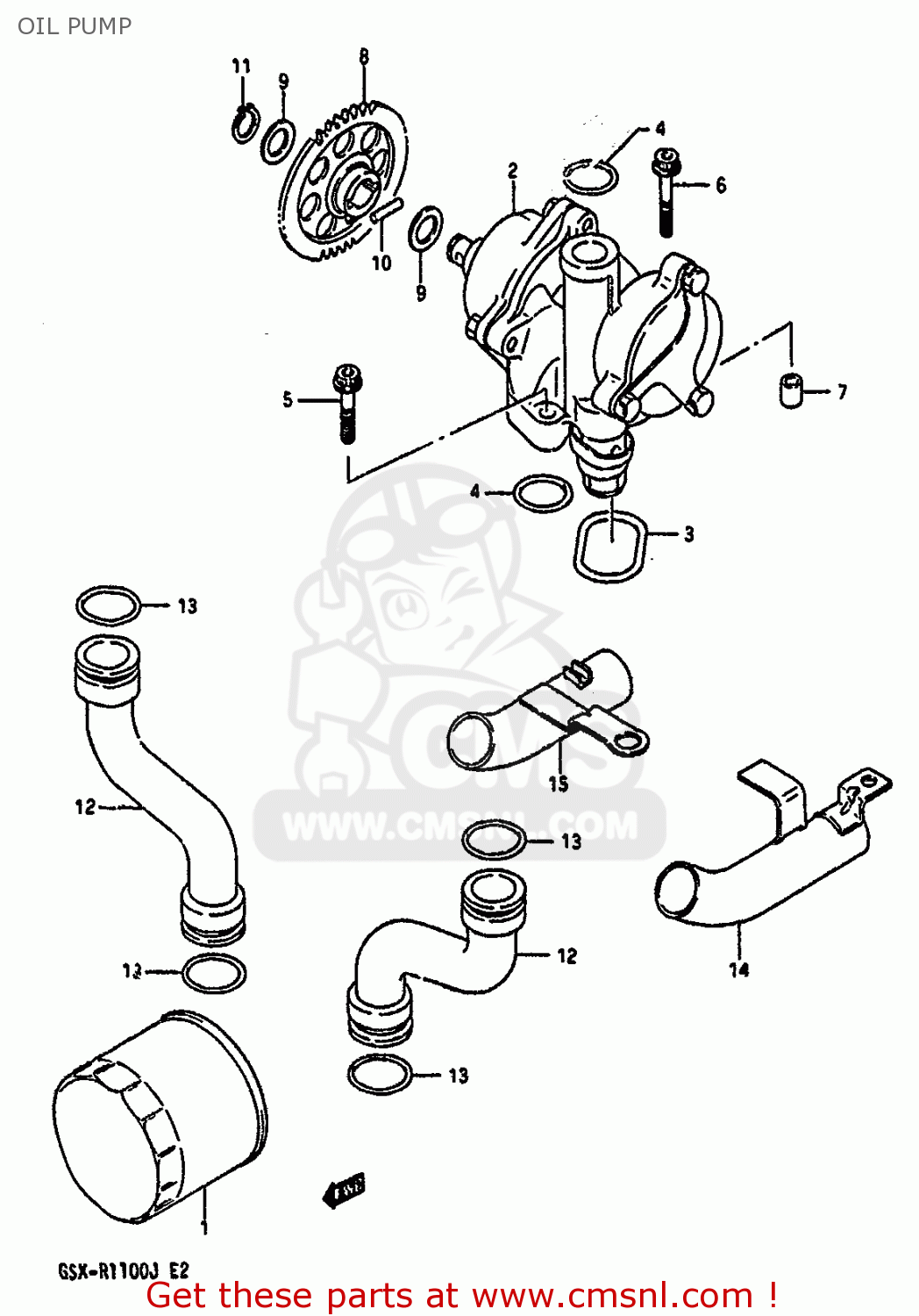

Oil pump diagram GSXR1100 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1651006B00
ref: 1

FILTER,OIL

€ 12.50

1640006B01
ref: 2

PUMP ASSY,OIL

€ 348.50

1649127A01
ref: 3

O RING,OIL PUMP

€ 13.50

0928018009
ref: 4

O RING(D:3.2,ID:17.8)

€ 8.00

0712006308
ref: 5

BOLT

€ 2.50

0712006358
ref: 6

BOLT

€ 3.50

0421109129
ref: 7

PIN

€ 2.00

1633106B010B0
ref: 8

GEAR,OIL PUMP DRIVEN

€ 37.00

0822112205
ref: 9

SHIM

€ 1.50

0926105006
ref: 10

PIN(5X18)

€ 1.50

0833131128
ref: 11

CIRCLIP

€ 2.00

1648006B02
ref: 12

PIPE COMP,OIL OUTLET

€ 39.00

0928022016
ref: 13

O RING(D:3.7,ID:21.7)

€ 5.50

1653027A01
ref: 14

PIPE,OIL,OUTLET,UNDER

€ 22.00

1654027A01
ref: 15

PIPE,OIL,OUTLET,UNDER

€ 23.00
