Buy Suzuki GSXR Parts Online


FRONT LH DAMPER

GSXR1100 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

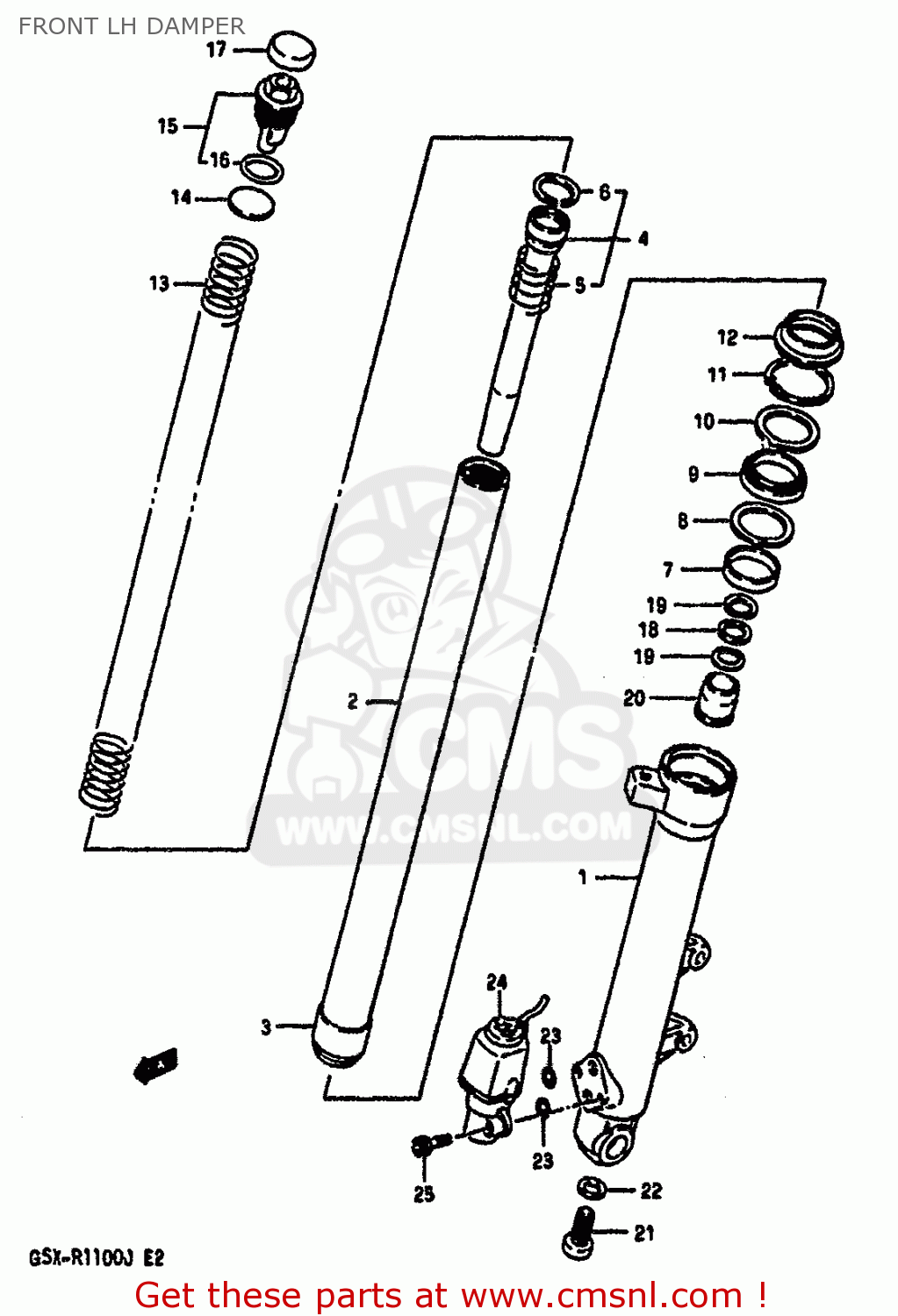

Front lh damper diagram GSXR1100 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

FRONT LH DAMPER GSXR1100 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
FRONT LH DAMPER GSXR1100 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
FRONT LH DAMPER GSXR1100 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
0
5110406B00
ref: 0
MODEL G
DAMPER ASSY,LH
€ 899.50
0
5110406B30
ref: 0
MODEL H
DAMPER ASSY,LH
€ 526.00
0
5110406B31
ref: 0
MODEL J
DAMPER ASSY,LH
€ 526.00
1-1
5114006B00
ref: 1-1
MODEL G
TUBE,OUTER,LEFT
€ 289.50
1-2
5114028A10
ref: 1-2
MODEL H/J
TUBE,OUTER,LEFT
€ 510.00
2
5111006B00
ref: 2
TUBE,INNER
5111006B00
€ 340.00
3
5112105A00
ref: 3
METAL,SLIDE FR FORK
5112105A00
€ 20.50
4
5114606B00
ref: 4
CYLINDER
5114606B00
€ 77.00
5
5117706B00
ref: 5
SPRING,REBOUND
€ 6.50
6
5119624A00
ref: 6
RING,FR FORK PISTON
5119624A00
€ 6.50
7
5116705A00
ref: 7
METAL,SLIDE
5116705A00
€ 20.50
8
5115805A00
ref: 8
WASHER,FORK OIL SEAL
5115805A00
€ 5.00
9
5115305A00
ref: 9
OIL SEAL,FRONT FORK
5115305A00
€ 22.00
10
5115827A00
ref: 10
WASHER,FORK OIL SEAL
5115827A00
€ 6.00
11
5115649440
ref: 11
RING,OIL SEAL STOPPER
5115649440
€ 5.50
12
5117305A00
ref: 12
DUST SEAL,FRONT FORK
5117305A00
€ 18.50
13
5117106B00
ref: 13
SPRING
5117106B00
€ 90.00
14
5119227A00
ref: 14
WASHER,FR FORK SPRING
5119227A00
€ 5.50
15
5135127A00
ref: 15
CAP,FORK INNER TUBE
5135127A00
€ 48.50
16
5111724A00
ref: 16
O RING
5111724A00
€ 6.00
17
5118900A00
ref: 17
CAP,FORK INNER TUBE
5118900A00
€ 8.50
18
5112327A00
ref: 18
WASHER,OIL LOCK PIECE
5112327A00
€ 4.50
19
5112527A00
ref: 19
SPRING,FORK OIL LOCK PIECE
5112527A00
€ 4.50
20
5119527A00
ref: 20
PIECE,OIL LOCK
5119527A00
€ 24.50
21
5114714200
ref: 21
BOLT(14X25)
5114714200
€ 5.50
22
5114814200
ref: 22
GASKET (NAS)
5114814200
€ 2.00
23
5179906B00
ref: 23
O RING
€ 3.50
24-1
5177006B00
ref: 24-1
MODEL G
P.D.F. ASSEMBLY
€ 327.50
24-2
5177028A10
ref: 24-2
MODEL H/J
EAND ASSY
5177028A10
€ 340.50
25
0711006257
ref: 25
BOLT
€ 2.50
