CLUTCH HOSE

GSXR1100 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

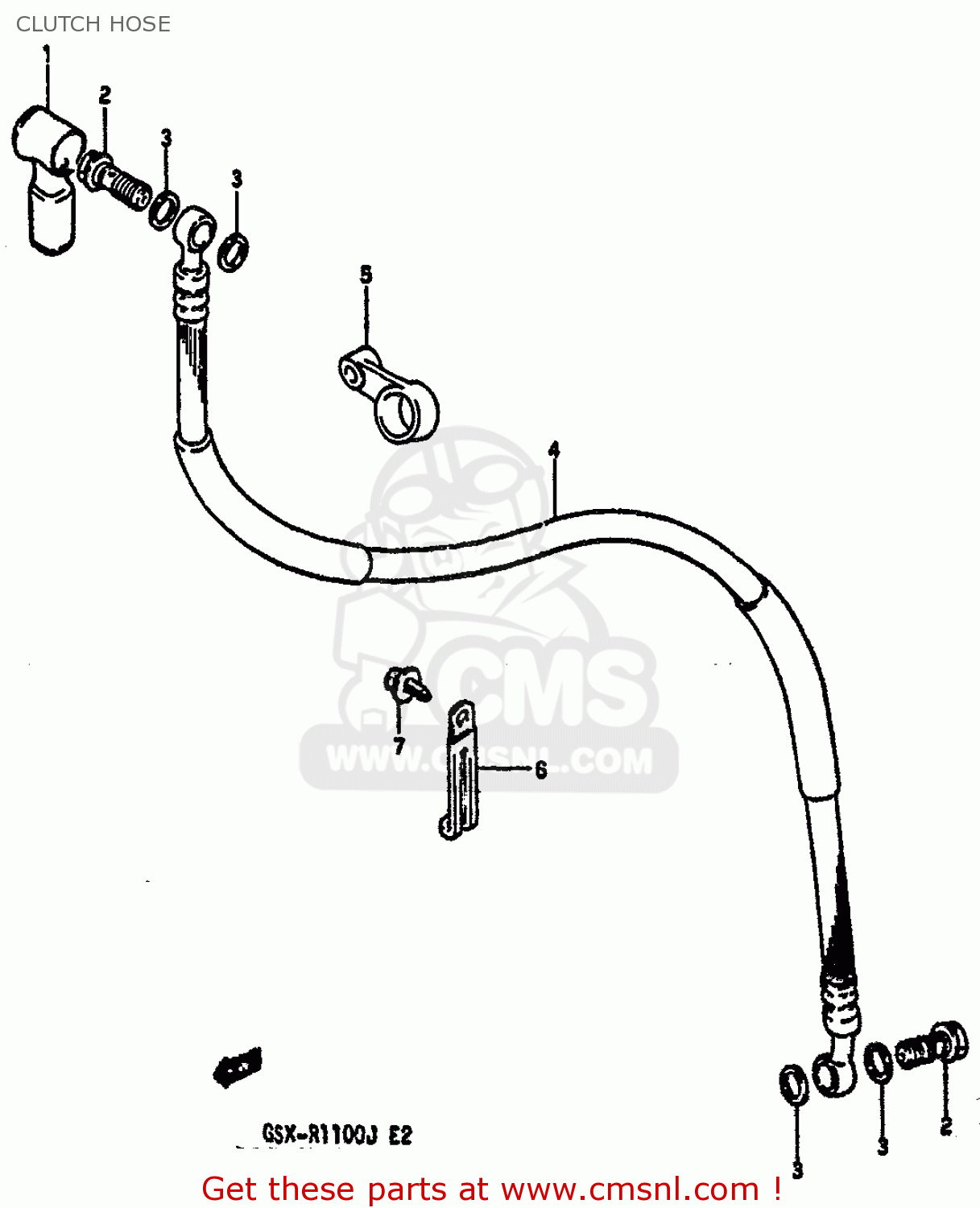

Clutch hose diagram GSXR1100 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

CLUTCH HOSE GSXR1100 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

CLUTCH HOSE GSXR1100 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1

5971104700
ref: 1

BOOT,MASTER CYLINDER

€ 14.50

2

0936010017
ref: 2

BOLT UNION

€ 6.50

3

0916110009
ref: 3

WASHER(10X15X1.5)

€ 2.00

4

5991027A03
ref: 4

HOSE,CLUTCH

€ 196.50

5

5991527A10
ref: 5

CLAMP,CLUTCH HOSE NO.2

€ 7.50

6

0940406415
ref: 6

CLAMP

€ 3.00

7

0940907305
ref: 7

CLIP

€ 1.50
