MUFFLER

GSXR1100 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

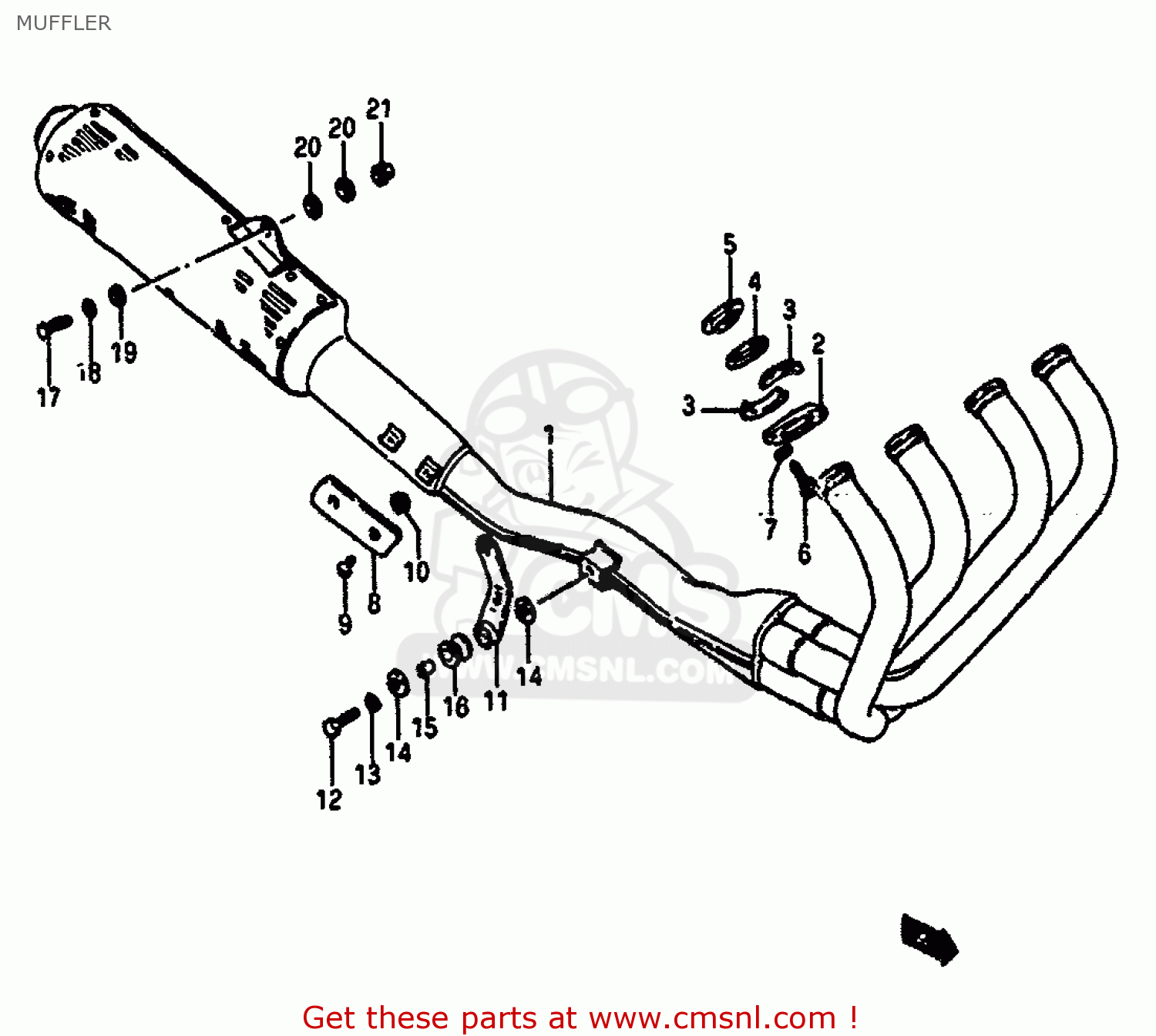

Muffler diagram GSXR1100 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

MUFFLER GSXR1100 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
MUFFLER GSXR1100 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
MUFFLER GSXR1100 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
1430506B01
ref: 1-1
MUFFLER ASSY
€ 1,074.00
1-2
1430506B61
ref: 1-2
E2
MUFFLER ASSEMBLY
€ 827.00
1-3
1430506B51
ref: 1-3
E4
MUFFLER ASSY
€ 0.00
1-4
1430506B31
ref: 1-4
E18,E22
MUFFLER ASSY
€ 0.00
1-5
1430506B21
ref: 1-5
E21,E24,E25,E34,E53
MUFFLER ASSY
€ 1,117.50
2
1418227A00
ref: 2
CLAMP,EXHAUST PIPE
1418227A00
€ 35.50
3
1415527A00
ref: 3
PLATE,EXHAUST PIPE
1415527A00
€ 3.50
4
1418105020
ref: 4
GASKET,EXHAUST PIPE (NAS)
1418105020
€ 6.50
5
1415906B00
ref: 5
MODEL H/J E2,E17,E39
PLATE,EXHAUST
1415906B00
€ 8.00
6
0711008255
ref: 6
BOLT
0711008255
€ 3.50
7
0916408015
ref: 7
WASHER
0916408015
€ 3.00
8
1478206B00
ref: 8
COVER,MUFFLER,FRONT
€ 10.50
9
0214206104
ref: 9
SCREW
0214206104
€ 2.00
10
0916806022
ref: 10
GASKET (NAS)
€ 2.50
11
1477006B01
ref: 11
DAMPER,MUFFLER SUPPORT
1477006B01
€ 13.50
12
0910008224
ref: 12
BOLT 8X35
0910008224
€ 6.00
13
0916208003
ref: 13
WASHER
€ 1.50
14
0916008057
ref: 14
WASHER (8.5X20X1.6)
0916008057
€ 2.00
15
0918008102
ref: 15
SPACER (8.6X12X17.5)
0918008102
€ 3.00
16
0932012026
ref: 16
CUSHION
0932012026
€ 8.00
17
0110710404
ref: 17
BOLT
€ 2.50
18
0832121104
ref: 18
WASHER,LOCK
0832121104
€ 3.00
19
0832211104
ref: 19
WASHER 10MM
0832211104
€ 2.50
20
0916010001
ref: 20
WASHER
0916010001
€ 2.00
21
0831616108
ref: 21
NUT
0831616108
€ 2.00
