FRAME

GSXR1100 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

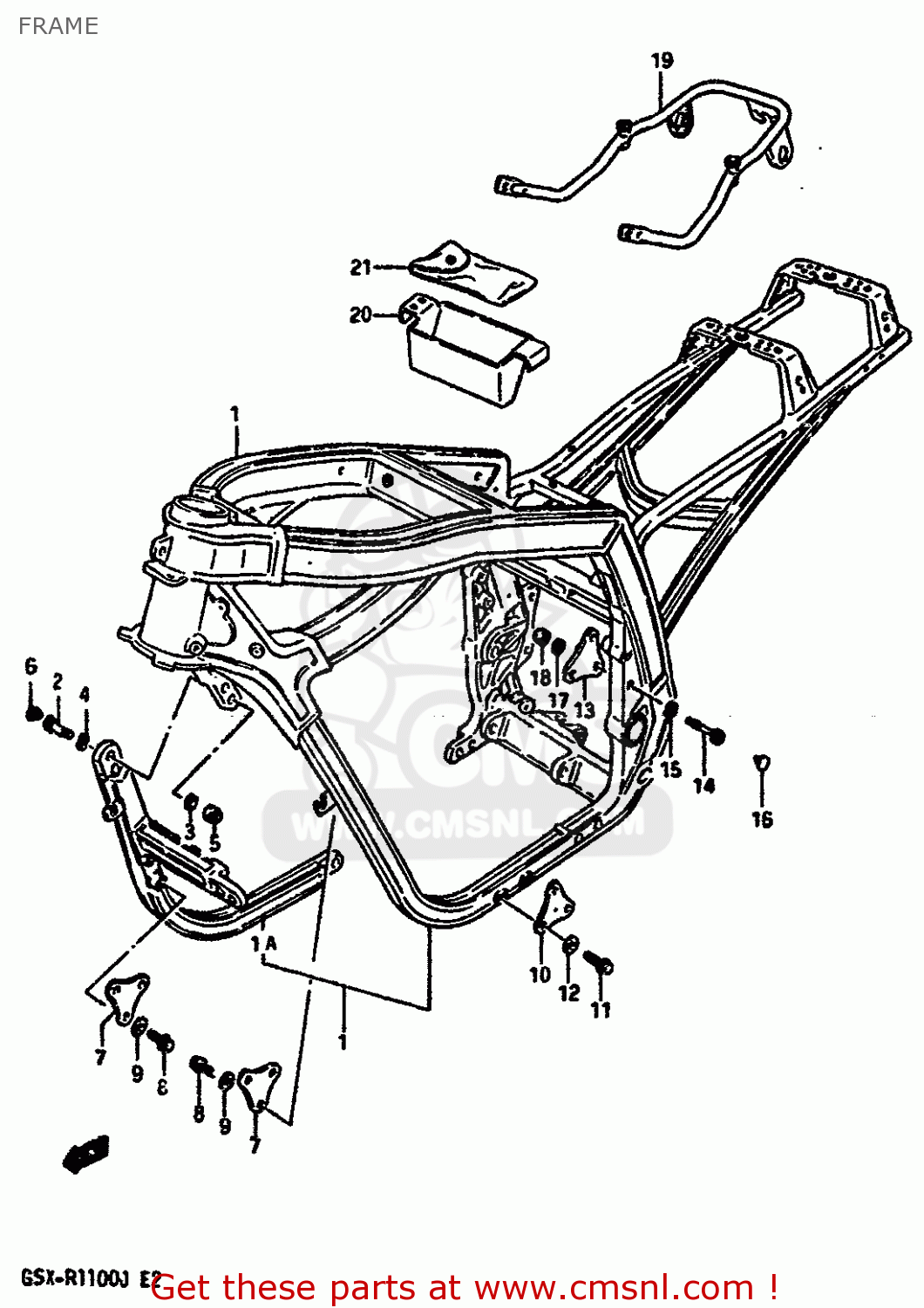

Frame diagram GSXR1100 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

FRAME GSXR1100 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
FRAME GSXR1100 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
FRAME GSXR1100 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
4110006840
ref: 1-1
MODEL G
FRAME
€ 3,512.50
1-2
4110006861
ref: 1-2
MODEL H
FRAME SET
€ 3,512.50
1-3
4110006880
ref: 1-3
MODEL J
FRAME SET
€ 3,517.00
1-4
4110006850
ref: 1-4
MODEL G E15,E17,E22
FRAME SET
€ 0.00
1-5
4110006871
ref: 1-5
MODEL H E15,E17,E22
FRAME SET
€ 0.00
1-6
4110006890
ref: 1-6
MODEL J E15,E17,E22
FRAME SET
€ 0.00
1A
4114006B50
ref: 1A
MODEL J
TUBE COMP,DOWN,RIGHT
€ 360.00
2
0910610028
ref: 2
BOLT
€ 3.50
3
0916010013
ref: 3
WASHER (10.1X21X2.3)
0916010013
€ 2.00
4
0916410005
ref: 4
WASHER
0916410005
€ 6.50
5
0915910027
ref: 5
NUT
0915910027
€ 3.00
6
4357534500
ref: 6
CAP
4357534500
€ 1.50
7
4191106B00
ref: 7
PLATE,ENGINE MOUNTING
€ 9.00
8
0151708258
ref: 8
BOLT
0151708258
€ 2.50
9
0916008010
ref: 9
WASHER (8.2X20X1.6)
0916008010
€ 1.50
10
4192106B00
ref: 10
PLATE,ENGINE MOUNTING
€ 10.50
11
0151708258
ref: 11
BOLT
0151708258
€ 2.50
12
0916008010
ref: 12
WASHER (8.2X20X1.6)
0916008010
€ 1.50
13
4193106B01
ref: 13
PLATE,ENGINE MOUNTING
€ 9.00
14
0711008458
ref: 14
BOLT, RH
€ 3.00
15
0916408015
ref: 15
WASHER
0916408015
€ 3.00
16
4157504A00
ref: 16
CAP,ENGINE MOUNTING
4157504A00
€ 2.00
17
0832131087
ref: 17
WASHER,LOCK
€ 2.00
18
0831931087
ref: 18
NUT
0831931087
€ 2.50
19
4398006B01
ref: 19
GRIP COMP,REAR
4398006B01
€ 81.00
20
4743127A01
ref: 20
HOLDER,TOOL
4743127A01
€ 35.50
21
0980000345
ref: 21
TOOL ASSY
€ 50.00
