TRANSMISSION

GSXR1100 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

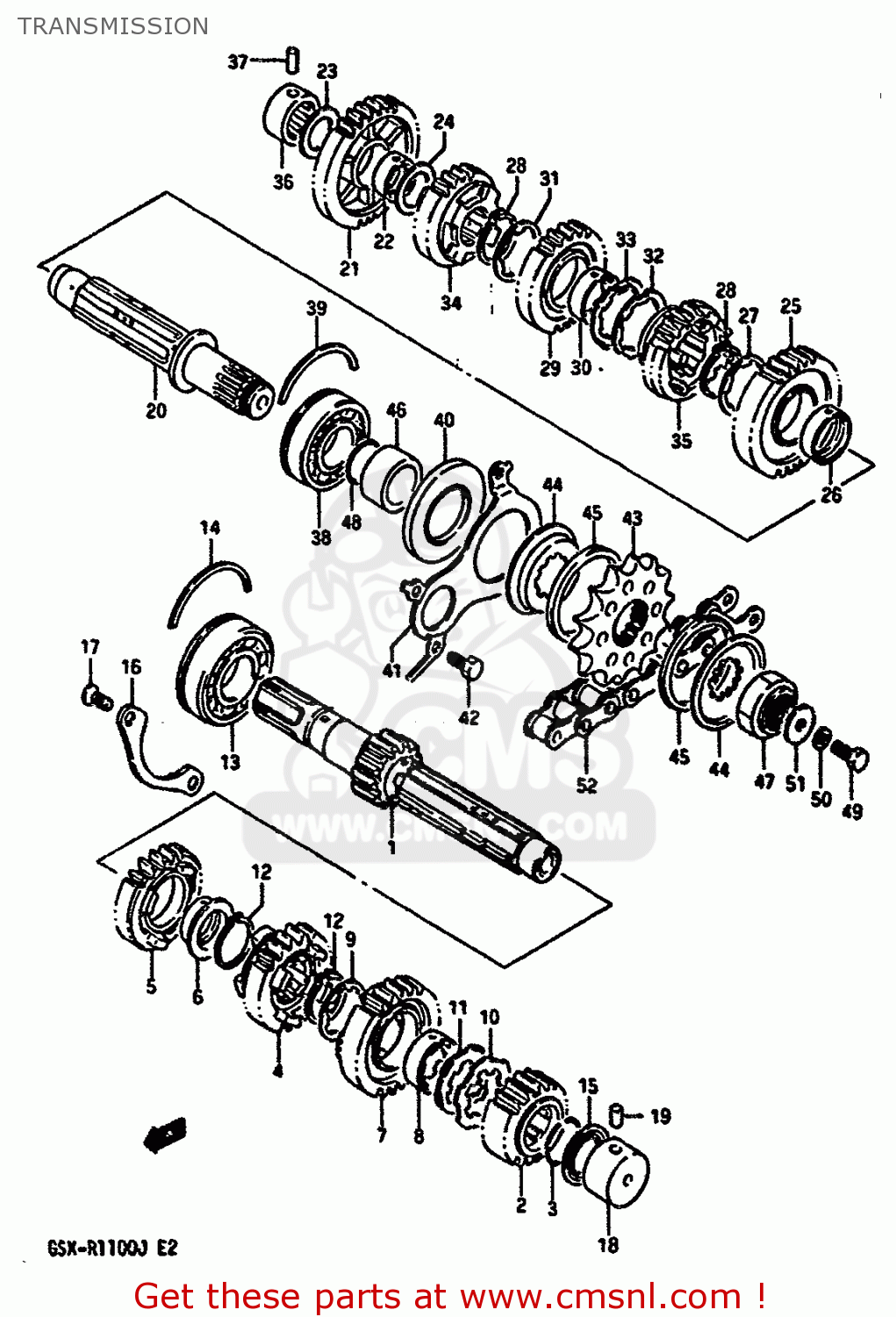

Transmission diagram GSXR1100 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

TRANSMISSION GSXR1100 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
TRANSMISSION GSXR1100 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
TRANSMISSION GSXR1100 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
2412106B02
ref: 1
FROM 24121-06B01
SHAFT,COUNTER
2412106B02
€ 180.50
2
2422106B01
ref: 2
GEAR,SECOND DRIVE
2422106B01
€ 90.00
3
0938025006
ref: 3
RING,SNAP
0938025006
€ 2.00
4-1
2423106B00
ref: 4-1
MODEL G,TO 24231-06B
GEAR,THIRD DRIVE
€ 174.50
4-2
2423106B01
ref: 4-2
~E.NO.U703-109133/U7
GEAR,THIRD DRIVE
€ 174.50
4-3
2423106B02
ref: 4-3
E.NO.U703-109134/U70
GEAR,THIRD DRIVE
€ 174.50
5
2424106B00
ref: 5
GEAR,FOURTH DRIVE
€ 162.00
6
0930125001
ref: 6
BUSHING
€ 12.50
7
2425106B01
ref: 7
GEAR,FIFTH DRIVE
2425106B01
€ 115.50
8
2425238A00
ref: 8
BUSHING
€ 10.50
9
0916725021
ref: 9
WASHER,LOCK
0916725021
€ 3.00
10
0916725013
ref: 10
WASHER,LOCK
0916725013
€ 2.50
11
0916925001
ref: 11
WASHER
0916925001
€ 2.00
12
0938025003
ref: 12
RING,SNAP
0938025003
€ 3.00
13
0926225051
ref: 13
BEARING(25X62X17)
0926225051
€ 59.50
14
0939062006
ref: 14
C-RING
0939062006
€ 5.00
15
0928520006
ref: 15
SEAL,OIL(20X31.2X2.7)
0928520006
€ 7.00
16
2474127A00
ref: 16
RETAINER,CNTR SHAFT BEARING
2474127A00
€ 7.00
17
0212206167
ref: 17
SCREW
0212206167
€ 2.00
18
0926320049
ref: 18
BEARING(20X34X17.5)
0926320049
€ 58.00
19
0422107129
ref: 19
PIN
0422107129
€ 1.50
20-1
2413106B04
ref: 20-1
MODEL G/H FROM 24131
DRIVESHAFT
€ 226.00
20-2
2413106B05
ref: 20-2
MODEL J
SHAFT,DRIVE
€ 226.00
21
2431106B00
ref: 21
GEAR,FIRST DRIVEN
€ 109.00
22
0930022005
ref: 22
BUSHING
€ 19.50
23
0821120341
ref: 23
WASHER
0821120341
€ 2.00
24
0821122341
ref: 24
WASHER
0821122341
€ 3.00
25-1
2432106B00
ref: 25-1
MODEL G
GEAR,SECOND DRIVEN
€ 131.50
25-2
2432106B01
ref: 25-2
MODEL H/J
GEAR,2ND DRIVEN
2432106B01
€ 131.50
26
0930028002
ref: 26
BUSH(28X32X11)
0930028002
€ 15.50
27
0821128361
ref: 27
WASHER
0821128361
€ 3.50
28
0833111289
ref: 28
CIRCLIP
€ 2.50
29-1
2433106B01
ref: 29-1
MODEL G,TO 24331-06B
GEAR,THIRD DRIVEN
€ 113.00
29-2
2433106B02
ref: 29-2
~E.NO.U703-109140/U7
GEAR,THIRD DRIVEN
€ 113.00
29-3
2433106B03
ref: 29-3
E.NO.U703-109141/U70
GEAR,THIRD DRIVEN
2433106B03
€ 113.00
30
2433207A00
ref: 30
BUSH
2433207A00
€ 9.50
31
0916728001
ref: 31
WASHER,LOCK
0916728001
€ 3.00
32
0916728002
ref: 32
WASHER,LOCK
0916728002
€ 3.00
33
0916928001
ref: 33
WASHER
0916928001
€ 3.00
34
2434106B01
ref: 34
GEAR,FOURTH DRIVEN (NT:23)
2434106B01
€ 136.00
35
2435106B01
ref: 35
GEAR,5TH DRIVEN
2435106B01
€ 90.00
36
0926320040
ref: 36
BEARING(20X34X20)
0926320040
€ 42.50
37
0422107209
ref: 37
PIN
0422107209
€ 1.50
38
0926225095
ref: 38
BEARING
€ 76.50
39
0939062006
ref: 39
C-RING
0939062006
€ 5.00
40
0928334005
ref: 40
SEAL,OIL(34X62X6)
0928334005
€ 14.50
41
2475127A00
ref: 41
RETAINER,DRIVESHAFT O
2475127A00
€ 8.00
42
0110706108
ref: 42
BOLT
€ 2.00
43-1
2751106B10
ref: 43-1
MODEL G/H
SPROCKET,ENGINE
2751106B10
€ 25.00
43-2
2751106B12
ref: 43-2
MODEL J
SPROCKET,ENGINE(NT:14)
2751106B12
€ 25.00
43-3
2751148B01
ref: 43-3
OPT
SPROCKET,ENGINE (NT:15)
€ 21.00
44
2751631301
ref: 44
HOLDER,SPROCKET DAMPER
2751631301
€ 3.50
45
2751706B00
ref: 45
DAMPER,ENGINE SPROCKET
2751706B00
€ 14.50
46
0918025081
ref: 46
SPACER (25X34X18.1)
€ 23.50
47
0915920004
ref: 47
NUT
0915920004
€ 12.00
48
0928025001
ref: 48
O RING(D:1,ID:24.5)
0928025001
€ 2.50
49
0110706167
ref: 49
BOLT
0110706167
€ 3.00
50
0832131067
ref: 50
WASHER,LOCK
0832131067
€ 2.50
51
0821206222
ref: 51
WASHER
0821206222
€ 1.50
52
2760006B11114
ref: 52
CHAIN ASSEMBLY,DRIVE
2760006B11114
€ 307.50
