OIL COOLER

GSXR1100 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

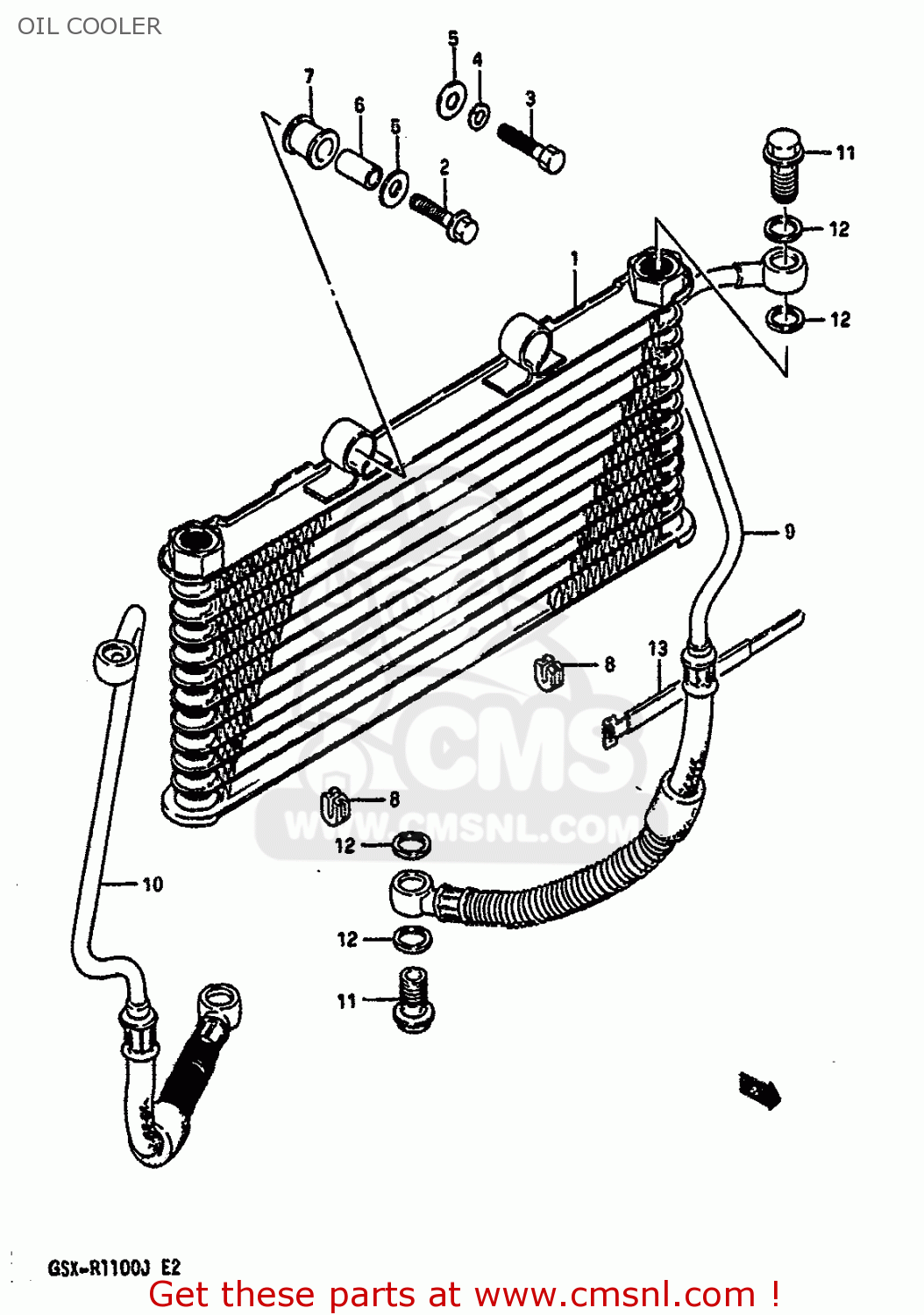

Oil cooler diagram GSXR1100 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1-1

1660027A01
ref: 1-1
MODEL G/H

COOLER ASSEMBLY,OIL

€ 813.00

1-2

1660006B10
ref: 1-2
MODEL J

COOLER ASSEMBLY,OIL

€ 955.00

0151708405
ref: 2
MODEL G/H

BOLT 8X40

€ 3.50

0110708405
ref: 3
MODEL J

BOLT 8X40

€ 3.00

0832121084
ref: 4
MODEL J

WASHER,LOCK,8.

€ 2.50

0916008047
ref: 5

WASHER(8.5X23X1.2)

€ 2.00

0918008124
ref: 6

SPACER (8.8X12X24.5)

€ 7.00

1662927A01
ref: 7

CUSHION,OIL COOLER NO.1

€ 4.00

1662827A00
ref: 8

CUSHION,OIL COOLER NO.2

€ 3.00

1646006B00
ref: 9

HOSE,OIL COOLER,L

€ 149.00

1647006B00
ref: 10

HOSE,OIL COOLER,RIGHT

€ 154.00

0936016002
ref: 11

BOLT UNION

€ 12.00

0916816003
ref: 12

GASKET(16X22X2) (NAS)

€ 2.00

0940718301
ref: 13

CLAMP

€ 6.00

OIL COOLER

all assemblies
