STARTING MOTOR

GSXR1100 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

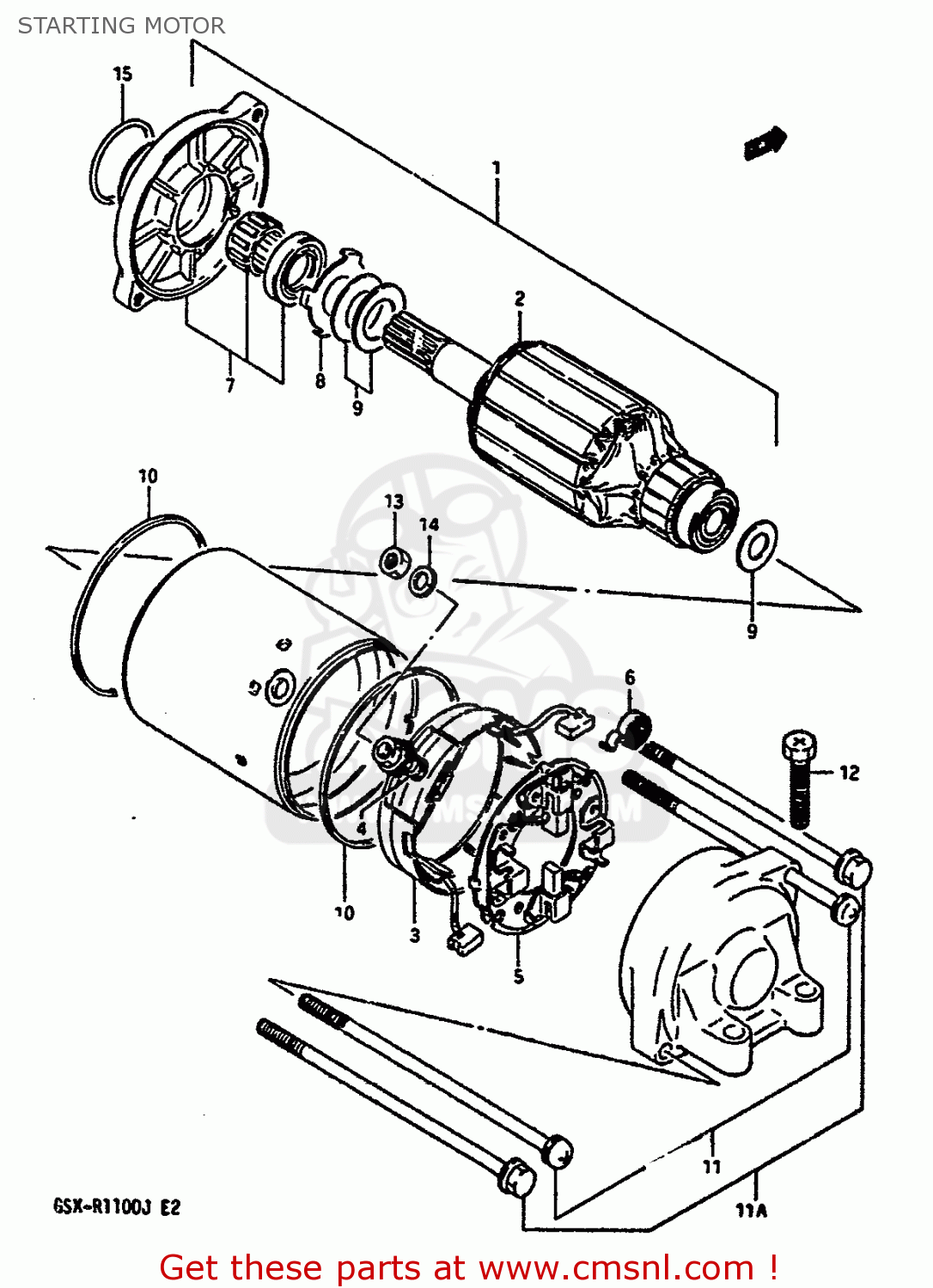

Starting motor diagram GSXR1100 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1-1

3110006B00
ref: 1-1
MODEL G/H

MOTOR ASSY,STARTING

€ 700.00

1-2

3110006B02
ref: 1-2
MODEL J

MOTOR ASSEMBLY,STARTING

€ 700.00

3131106B00
ref: 2

ARMATURE

€ 163.50

3113006B00
ref: 3

TERMINAL SET,BRUSH,PLUS

€ 54.00

3114349040
ref: 4

O RING

€ 3.00

3113206B00
ref: 5

HOLDER SET,BRUSH(-)

€ 35.50

3113549040
ref: 6

SPRING,BRUSH

€ 5.00

3115005A00
ref: 7

BRACKET SET,STARTING MOTOR

€ 70.00

3136019B00
ref: 8

SHIM SET

€ 2.50

3136006B00
ref: 9

SHIM SET

€ 6.00

3126449040
ref: 10

SEAL,RING

€ 7.50

3128005A00
ref: 11
MODEL G/H

BOLT

€ 10.50

11A

3128006B00
ref: 11A
MODEL J

BOLT SET

€ 10.50

0912806024
ref: 12

SCREW (6X25)

€ 2.50

0831011066
ref: 13

NUT

€ 2.00

0832121066
ref: 14

WASHER,LOCK

€ 2.00

0928024003
ref: 15

O RING(D:3,ID:24.5)

€ 2.00
