REAR CUSHION LEVER

GSXR1100 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

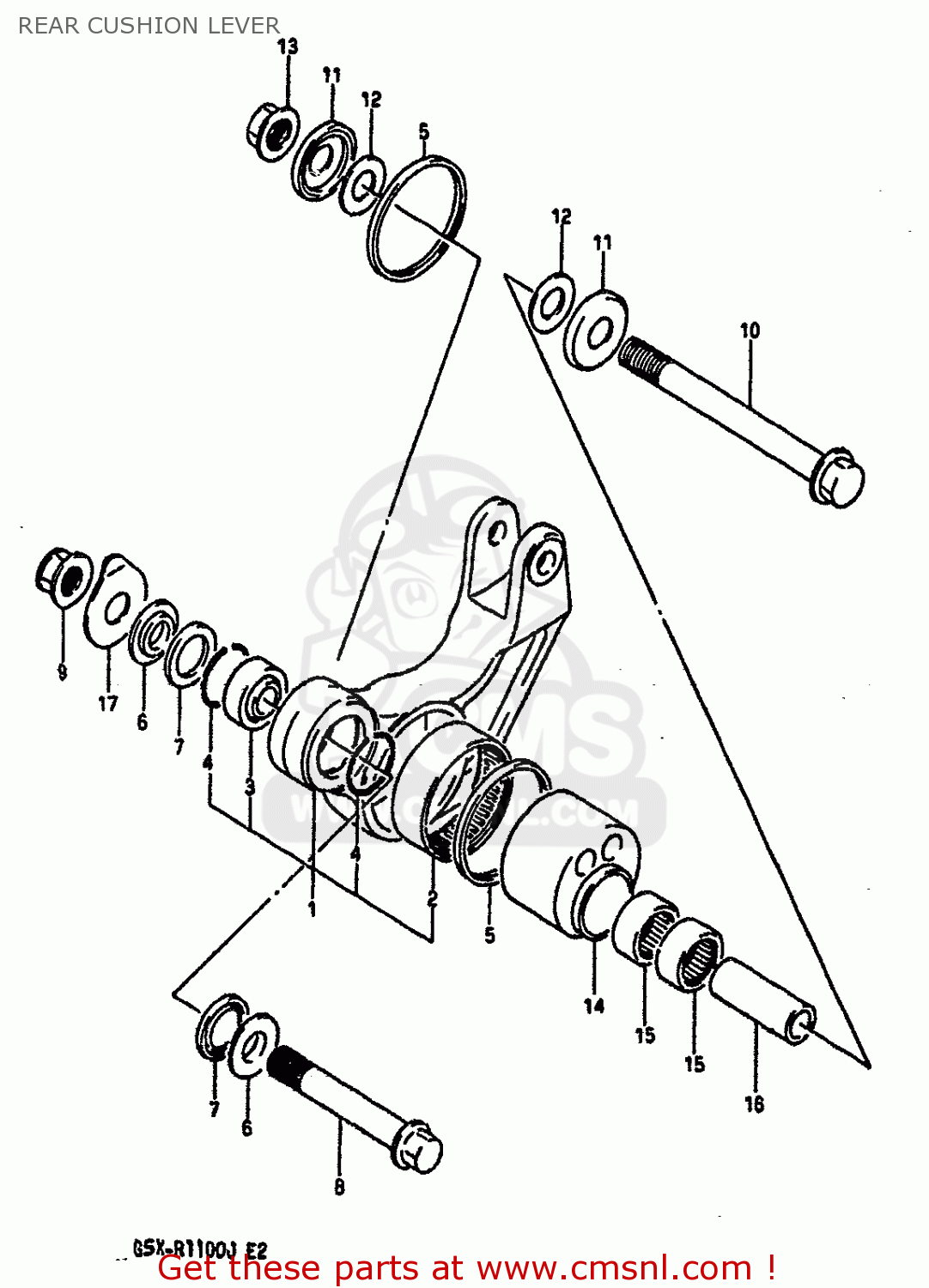

Rear cushion lever diagram GSXR1100 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

6260006841
ref: 1

LEVER SET,REAR CUSHION

€ 366.50

0926345003
ref: 2

BEARING(45X52X20)

€ 31.50

0926912004
ref: 3

BEARING(12X26X16)

€ 65.00

6265705A00
ref: 4

RING,STOPPER

€ 2.50

6262440A00
ref: 5

SEAL,ECCENTRIC LVR DUST CTR

€ 7.50

6231605A01
ref: 6

SPACER,RR CUSHION ROD

€ 8.00

6264705A00
ref: 7

SEAL,RR CUSHION ROD DUST

€ 2.50

6266827A00
ref: 8

BOLT,RR CUSHION LEVER FR

€ 13.50

0831931128
ref: 9

NUT 12MM

€ 4.00

0910312015
ref: 10

BOLT(12X105)

€ 6.00

6126240200
ref: 11

COVER,REAR SWING ARM DUST

€ 5.00

0821112281
ref: 12

WASHER

€ 2.00

0831931128
ref: 13

NUT 12MM

€ 4.00

6262340A01
ref: 14

ECCENTRIC SPACER,REAR SUSPENSION

€ 103.50

0926317032
ref: 15

BEARING(17X24X15)

€ 22.50

6264640A01
ref: 16

SPACER,ECCENTRIC LVR CTR

€ 15.50

6266727A00
ref: 17

SHIM,REAR CUSHION LEVER

€ 4.00

REAR CUSHION LEVER

all assemblies
