ELECTRICAL

GSXR1100 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

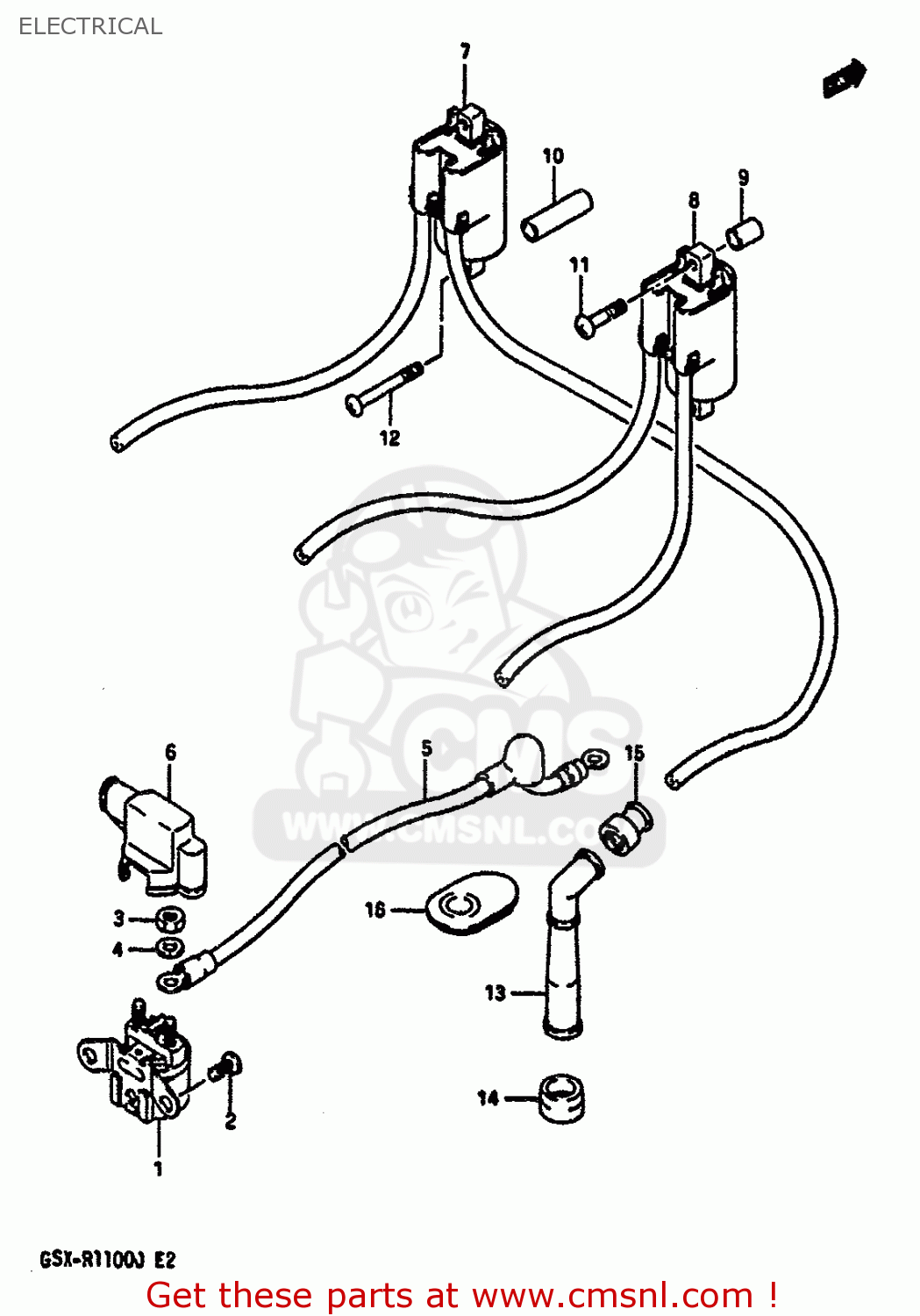

Electrical diagram GSXR1100 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

3180049100
ref: 1

RELAY ASSY,STARTING MOTOR

€ 89.00

0211206106
ref: 2

SCREW

€ 1.50

0831011066
ref: 3

NUT

€ 2.00

0832121066
ref: 4

WASHER,LOCK

€ 2.00

3385006B00
ref: 5

WIRE,STARTER MOTOR LEAD

€ 30.00

3186144500
ref: 6

CAP,STARTER RELAY

€ 6.50

3341027A00
ref: 7

COIL ASSEMBLY,IGNITION

€ 182.00

3342027A00
ref: 8

COIL ASSEMBLY,IGNITION

€ 182.00

0918006061
ref: 9

SPACER

€ 2.50

0918006130
ref: 10

SPACER(6.5X10.5X40)

€ 10.00

0211206356
ref: 11

SCREW

€ 2.50

0211206606
ref: 12

SCREW

€ 2.50

3351048B10
ref: 13
FROM 33510-27A11

CAP,SPARK PLUG

€ 29.50

3354127A22
ref: 14

SEAL,SPARK PLUG

€ 7.00

3354298000
ref: 15

SEAL,SPARK PLU

€ 4.50

3354327A21
ref: 16

COVER,SPARK PLUG CAP

€ 12.50
